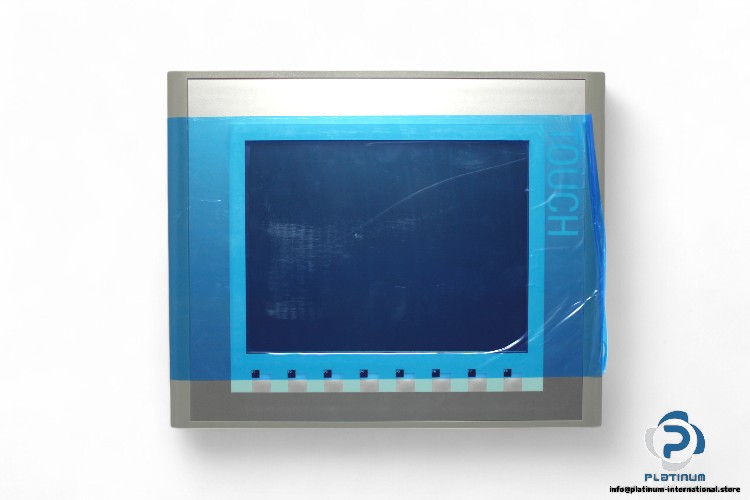

SIEMENS KTP1000 BASIC PANEL MODULE
This high-performance Basic HMI Panel from Siemens is designed for industrial control systems that demand clear visuals, intuitive touch operation, and reliable connectivity. With a 10.4″ TFT display and multiple communication interfaces, it is ideal for PROFIBUS and MODBUS environments.
- Manufacturer: SIEMENS
- Type: BASIC PANEL MODULE
- MNR: 6AV6647-0AE11-3AX0
- Serial No.: LBN7003167
- Ref. Code: SC-BDC46014
Technical Information
- Product Type Designation: KTP1000 Basic color DP
- Display: TFT
- Rated Value (DC): 24 V
- Permissible Range (DC): 19.2 “ 28.8 V
- Current Consumption (Rated): 0.6 A
- Power Input: 15 W
- Processor: RISC 32-bit
- Memory: Flash, RAM
- User Data Memory: 2 Mbyte

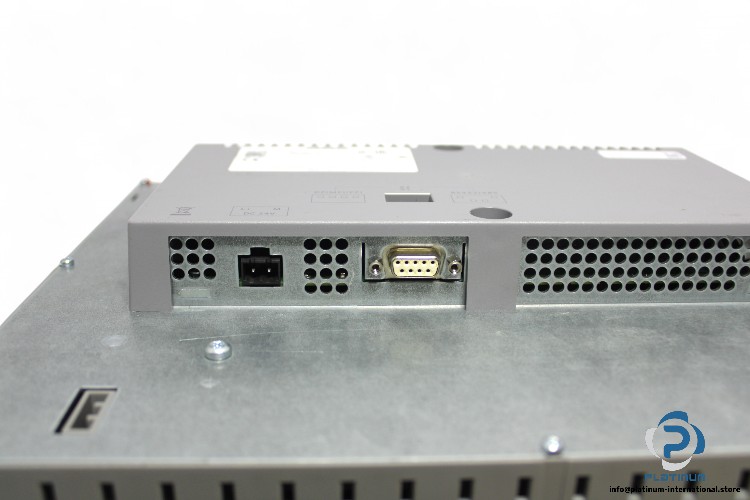

- Interfaces: RS 485, RS 422
- Supported Protocols: PROFIBUS, MPI, MODBUS RTU
- Screen Diagonal: 10.4 in
- Display Dimensions: 211.2 mm x 158.4 mm
- Number of Colors: 256
- Touch Screen: Yes, Analog-resistive
- Mounting Position: Vertical
- Acoustic Feature: Buzzer
- Clock: Software clock, synchronous
- Protection Degree: IP65 (front), IP20 (rear)
- Ambient Temperature Range: 0 / 50 °C
