SIEMENS SIMATIC FLAT PANEL 6AV7 861-2TB10-2AA0
The Siemens SIMATIC 6AV7 861-2TB10-2AA0 is a robust and versatile industrial flat panel designed for high-performance HMI operations. With a TFT LED-backlit display and touch control interface, it delivers optimal visualization and user interaction in demanding environments.
Manufacturer: Siemens
Type: SIMATIC Flat Panel
Model: 6AV7 861-2TB10-2AA0

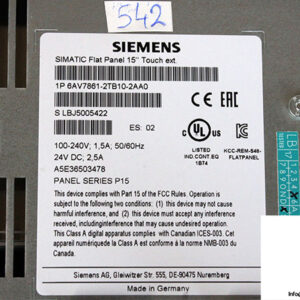

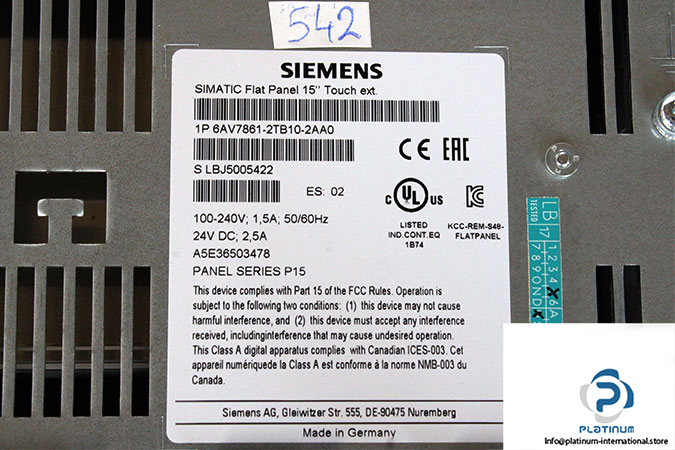

Serial No.: S LBJ5005422
Technical Information
- Supply Voltage: 24 V DC (19.2 / 28.8 V DC) / 100 / 240 V
- Current @ AC: 1.5 A
- Current @ DC: 2.5 A
- Frequency: 50 / 60 Hz
- Display Design: TFT display, LED backlighting
- Control Elements: Touch
- Mounting: Built-in unit
- Protection Degree: IP65
- Operating Temperature: 0 / 50 °C
Dimensions
- Housing Dimensions: 483 x 310 x 55 mm
- Display Width: 304.1 mm
- Display Height: 228.1 mm
