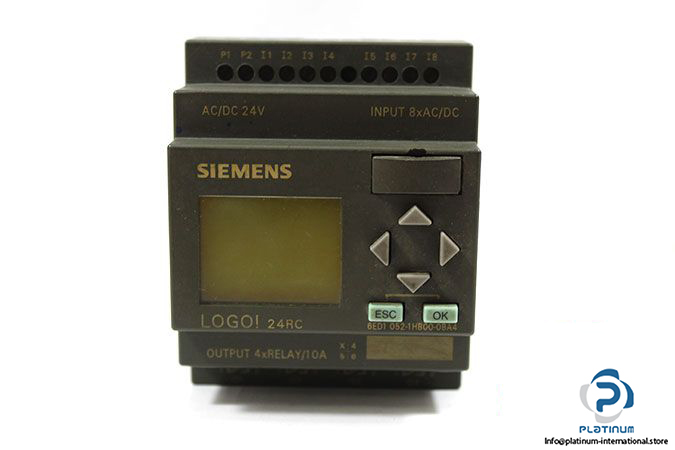

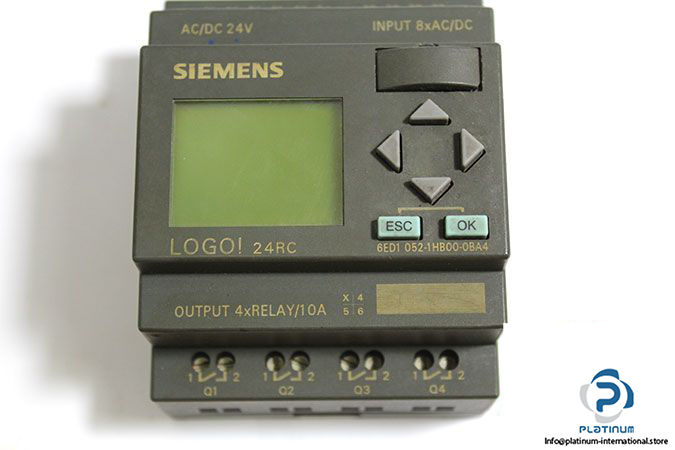

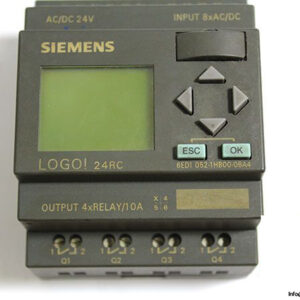

SIEMENS LOGO! 24RC LOGIC MODULE

The Siemens LOGO! 24RC is a compact and powerful logic module designed to meet automation needs in various industrial and control applications. This unit provides flexible control through programmable function blocks and supports modular expansion for scalable systems. With 8 digital inputs and 4 digital outputs, it ensures seamless integration into modern automation environments.

Manufacturer: Siemens
Family: LOGO! 24RC
Type: Logic Module
MRN: 6ED1052-1HB00-0BA4

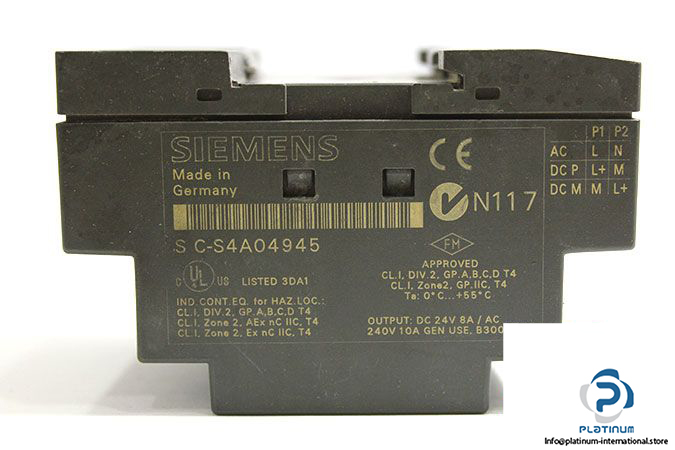

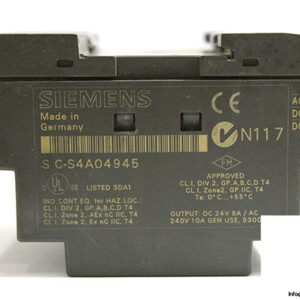

SN: C-S4A04945

Technical Information

• Function Blocks: 130 linkable blocks with modular expansion
• Supply Voltage: 24 V DC (range: 20.4 V DC to 28.8 V DC)
• Time Switches Reverse Power: 80 hours
• No. of Digital Inputs: 8 (24 V AC/DC)
• No. of Digital Outputs: 4
• Switching Capacity:
  “ Inductive Load: max. 3 A
  “ Resistive Load: max. 10 A
• Operating Temperature: 0 / 55 °C
• Protection Rating: IP20
• Dimensions (WxHxD): 72 x 90 x 55 mm
