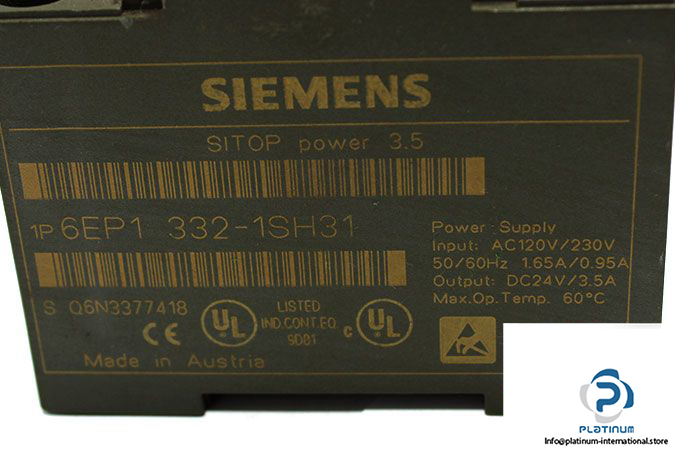

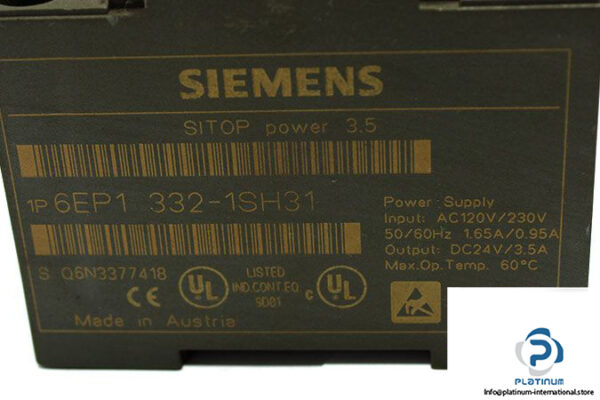

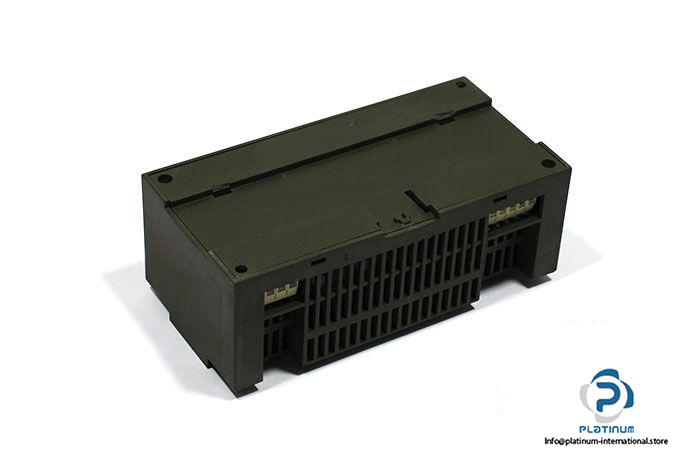

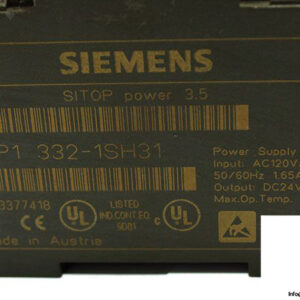

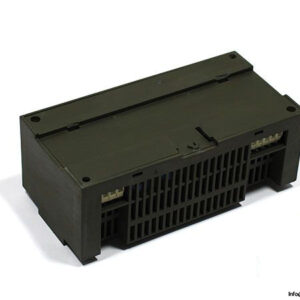

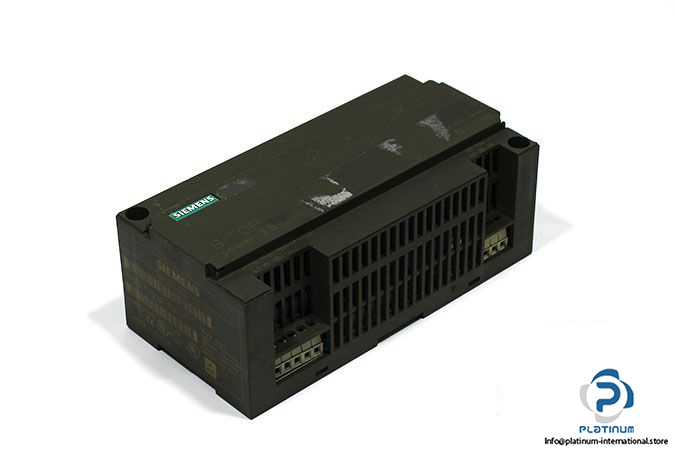

SIEMENS SITOP POWER 6EP1332-1SH31

The Siemens SITOP Power 6EP1332-1SH31 is a reliable and efficient industrial power supply designed to deliver stable 24 VDC output for a wide range of automation and control applications. Built with high overvoltage resistance and excellent mains buffering capability, it ensures dependable performance even in demanding environments.

Manufacturer: Siemens
Type: SITOP Power
Model: 6EP1332-1SH31
Serial No.: S Q6N3377418

Technical Information

• Input Supply Voltage: 1-phase AC 120/230 V
• Overvoltage Resistance: 2.3 × Vin rated, 1.3 ms
• Mains Buffering (at Iout rated, min): 20 ms at Vin = 187 V
• Rated Line Range: 47 / 63 Hz
• Input Current at 120 V: 1.65 A
• Input Current at 230 V: 0.95 A
• Output Rated Voltage: 24 VDC
• Output Current Range: 0 / 3.5 A
• Ambient Temperature: 0 / 60 °C
• Protection Class: IP20
• Dimensions: 160 × 80 × 62 mm
