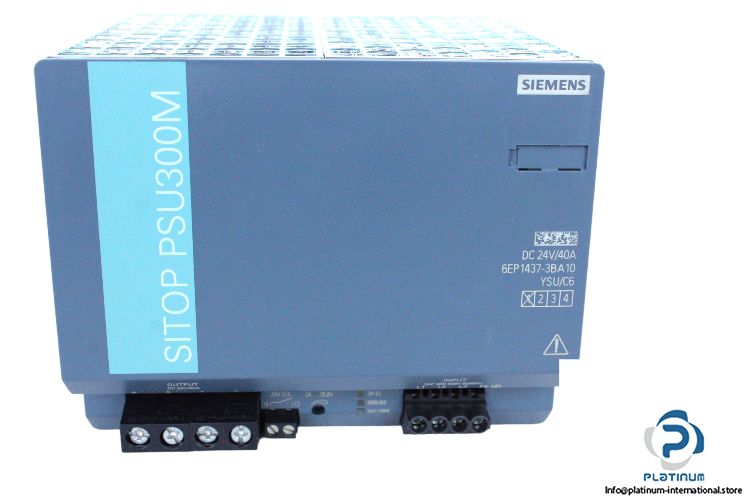

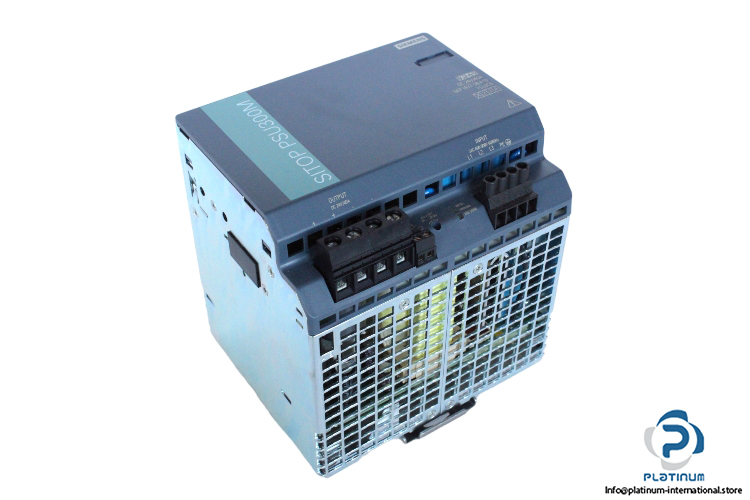

SIEMENS 6EP1 437-3BA10 POWER SUPPLY

The Siemens 6EP1 437-3BA10 is a robust industrial-grade power supply designed for high-efficiency performance in automation and control systems. Engineered for 3-phase AC input and delivering up to 40 A output current, this unit provides stable and reliable power in demanding environments.

Manufacturer: Siemens
Type: Power Supply
Model: 6EP1 437-3BA10

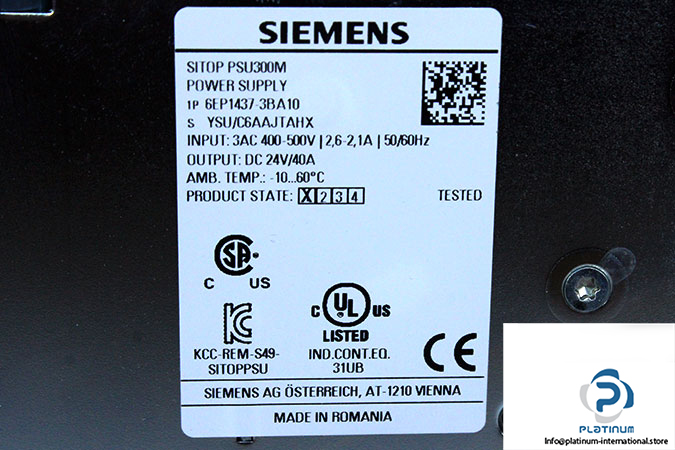

Serial No.: YSU/C6AAJTAHX

Technical Information

• Input Type: 3-Phase AC
• Rated Input Voltage (Vin rated): 400 / 500 V
• Voltage Range (AC): 320 / 575 V
• Rated Line Frequency: 50 / 60 Hz
• Input Current at 400 V: 2.6 A
• Input Current at 500 V: 2.1 A
• Max Switch-On Current (+25 °C): 56 A
• Rated Output Current (Iout rated): 40 A
• Current Range: 0 / 40 A
• Ambient Temperature: -10 / +60 °C
• Degree of Protection: IP20 (per EN 60529)
