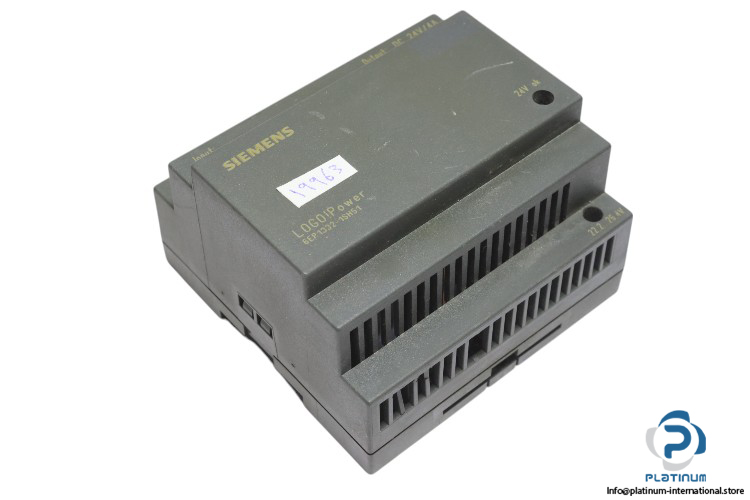

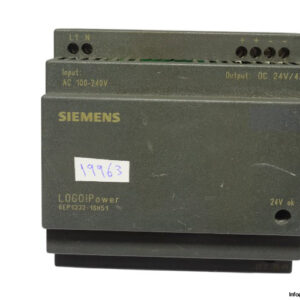

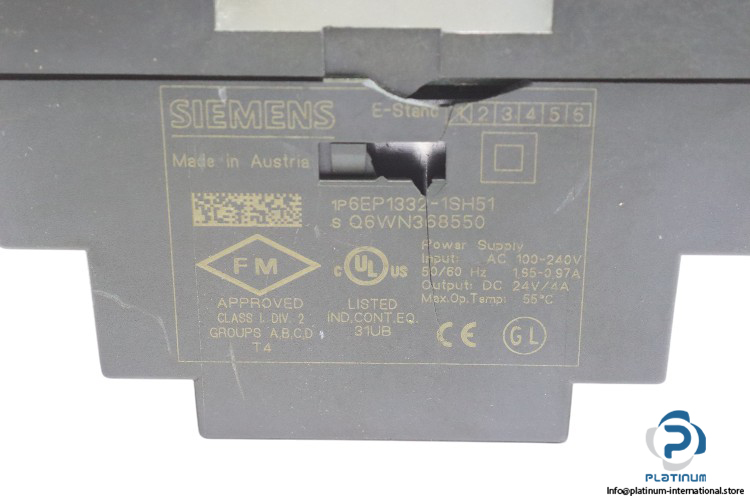

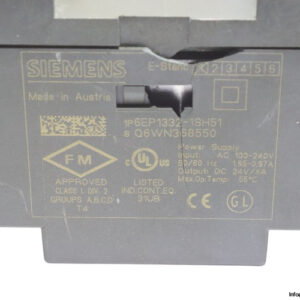

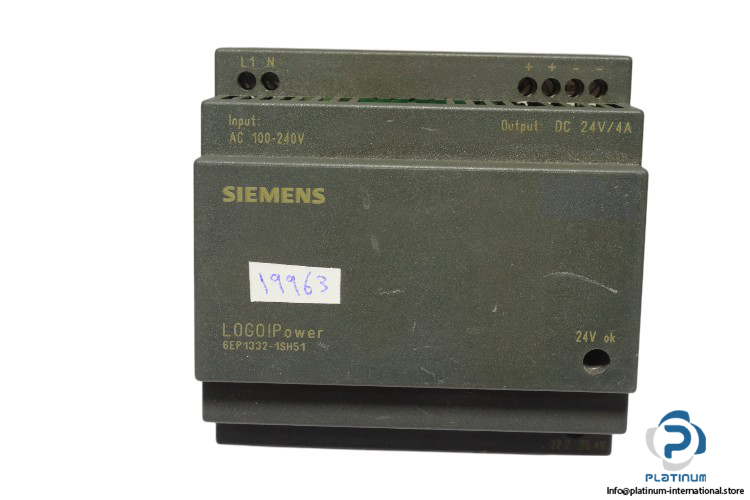

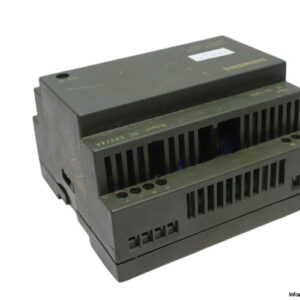

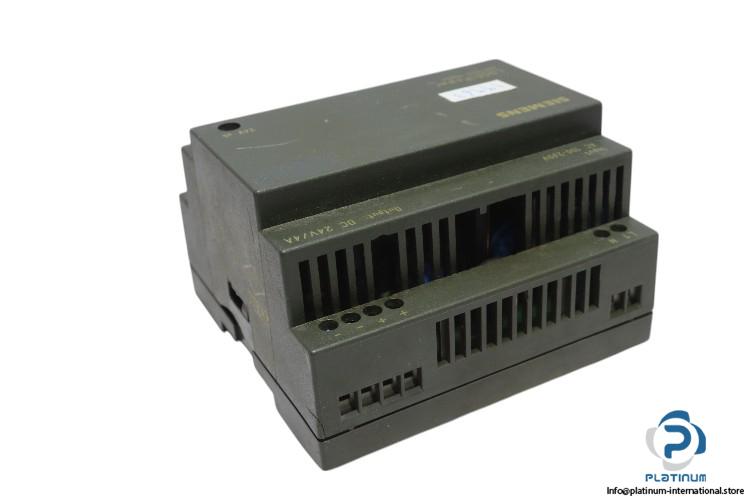

Siemens 6EP1332-1SH51 SITOP Power Supply

The Siemens 6EP1332-1SH51 SITOP Power Supply is a high-performance industrial power solution designed to ensure reliable and efficient DC power distribution. It features a wide input voltage range, high overvoltage resistance, and advanced mains buffering capabilities, making it ideal for automation and industrial applications.

Manufacturer: Siemens

Type: SITOP Power Supply

Part No.: 6EP1332-1SH51

Technical Information:

• Input Supply Voltage: 1-phase AC / 100 to 240 V AC
• Overvoltage Resistance: 2.3 × Vin rated, 1.3 ms
• Mains Buffering: Min. 40 ms at Iout rated (Vin = 187 V)
• Frequency Range: 50 to 60 Hz
• Input Current:
  • 1.95 A at 120 V AC
  • 0.97 A at 230 V AC
• Output Rated Voltage: 24 V DC, 4 A
• Output Current Range: 0 to 4 A
• Ambient Temperature: -20 to 55 °C
• Protection Class: IP20
• Dimensions (W x H x D): 90 x 90 x 55 mm
