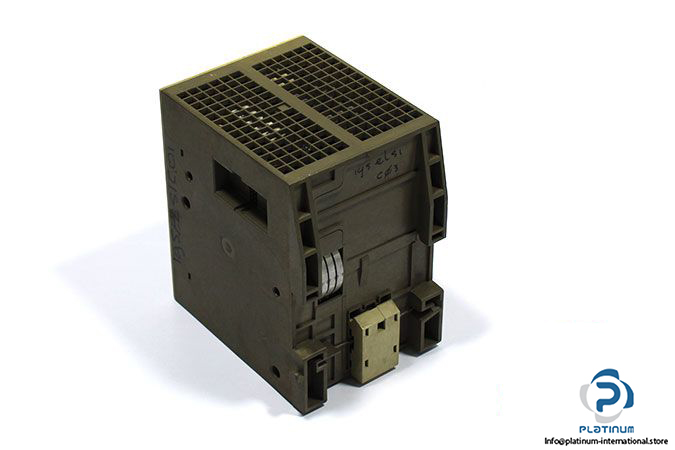

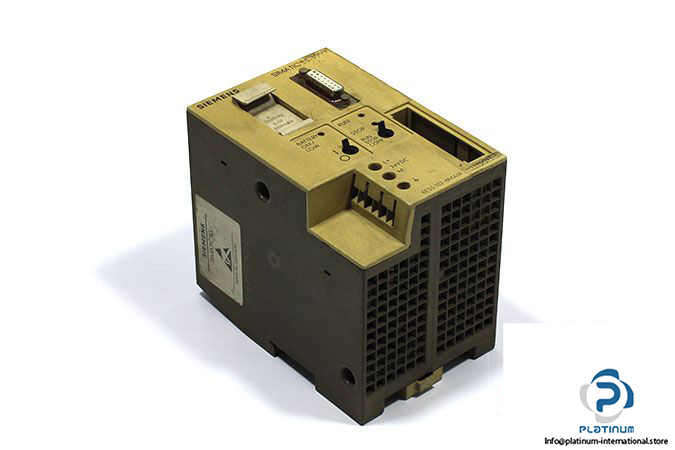

SIEMENS 6ES5102-8MA01 POWER SUPPLY

The Siemens 6ES5102-8MA01 is a reliable and compact power supply unit specifically designed for use with CPU 102 F.S5-100U systems. Built for industrial environments, it delivers stable voltage outputs and consistent performance to ensure dependable operation of automation equipment.

Manufacturer: Siemens
Type: Power Supply

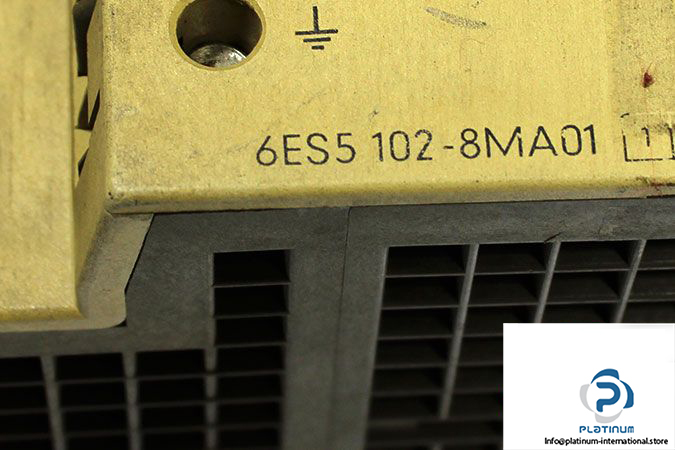

Model: 6ES5102-8MA01
Uses For: CPU 102 F.S5-100U

Technical Information

• Input Voltage: 24 VDC
• Current Consumption from +24 V: 1 A
• Output Current v1: 1 A
• Output Current v2: 0.65 A
• Power Consumption: 11.4 W
• Output Voltage v1: 9 V
• Output Voltage v2: 5.2 V
• Backup Battery: Lithium Battery (3.4 V / 850 mAh)
• Dimensions: 135 x 120 x 91.5 mm
