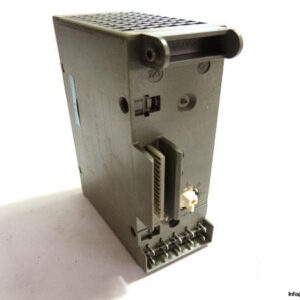

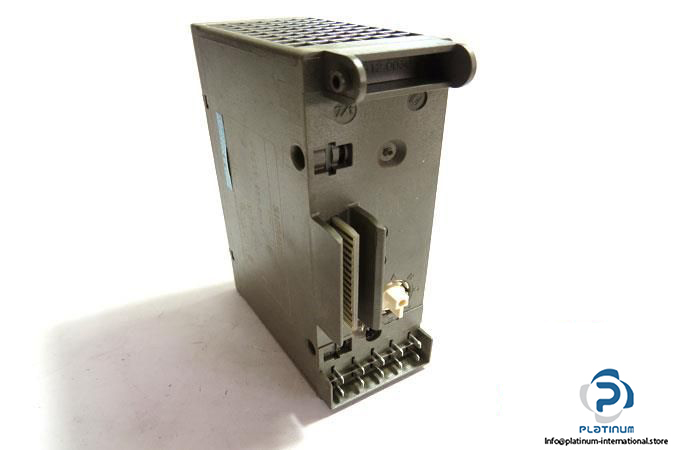

SIEMENS 6ES5451-8MA11 DIGITAL OUTPUT MODULE

The Siemens 6ES5451-8MA11 is a digital output module from the SIMATIC S5 family, engineered for reliable industrial automation. It converts the internal signal levels of the programmable controller into external binary signal levels, ensuring compatibility with process control systems.

Manufacturer: Siemens
Type: Digital Output Module
Family: SIMATIC S5
Model: 6ES5451-8MA11

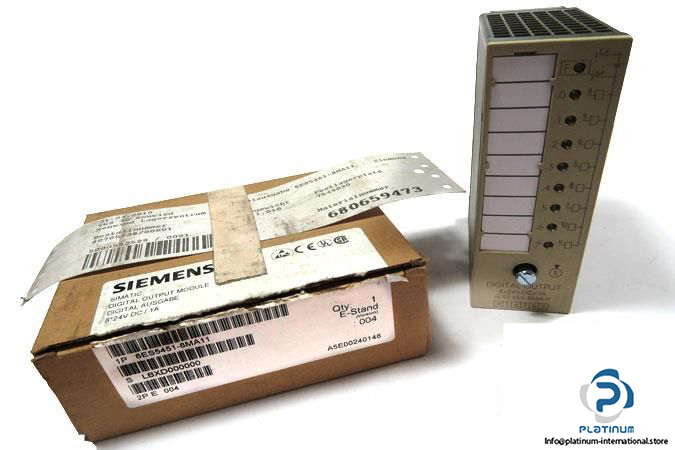

Serial No.: LBXD000000

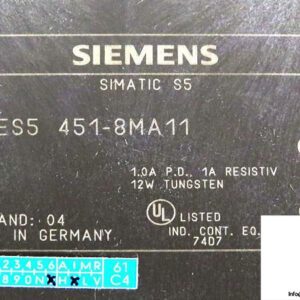

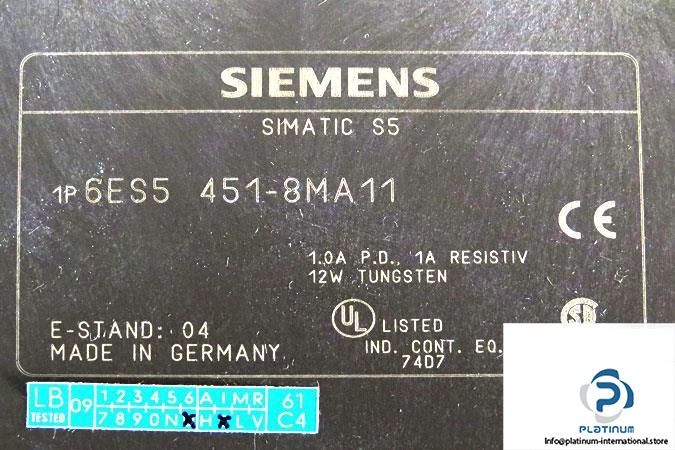

E Stand: 04

Technical Information

• Application: Converts internal signal level of the controller to external binary signal level
• No. of Outputs: 8
• Supply Voltage: 24 VDC
• Nominal Output Current: 1 A
• Lamp Load: Max. 10 W
• Switching Frequency: 100 Hz (Resistive Load), 2 Hz (Inductive Load)
• Power Loss: Typically 3W
• Insulation Voltage: Tested at 500 V AC
• Dimensions: 135 x 89 x 45 mm
