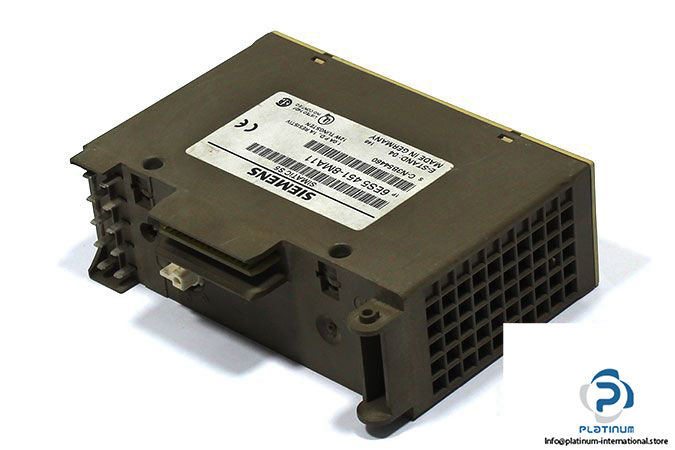

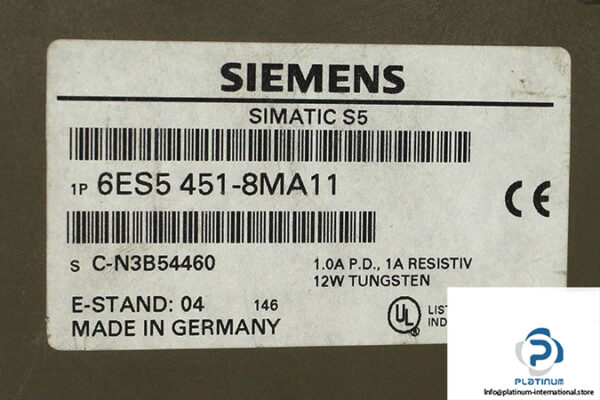

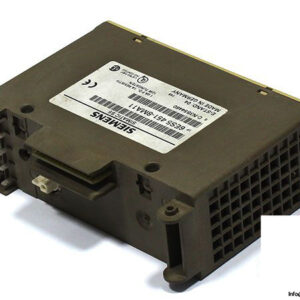

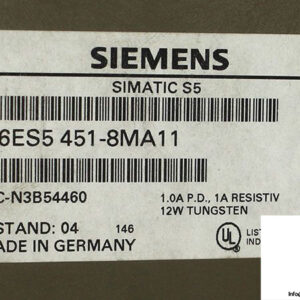

SIEMENS 6ES5451-8MA11 DIGITAL OUTPUT MODULE
The Siemens 6ES5451-8MA11 is a robust digital output module from the SIMATIC S5 series, engineered to convert the internal signal level of programmable controllers into the required external binary signal level for seamless industrial automation control. This unit offers precise, reliable performance and is essential for efficient process interfacing.
Manufacturer: Siemens
Type: Digital Output Module
Family: SIMATIC S5
Model: 6ES5451-8MA11
Serial No.: c-n3b54460
E Stand: 04
Application: Converts internal PLC signal to external binary level for process control
Technical Information
- No of Outputs: 8
- Supply Voltage: 24 VDC
- Nominal Output Current: 1 A
- Lamp Load: Max. 10 W
- Switching Frequency: 100 Hz (Resistive Load), 2 Hz (Inductive Load)
- Power Loss: Typ. 3W
- Insulation Voltage: Tested at 500 V AC
- Dimensions: 135 x 89 x 45 mm
