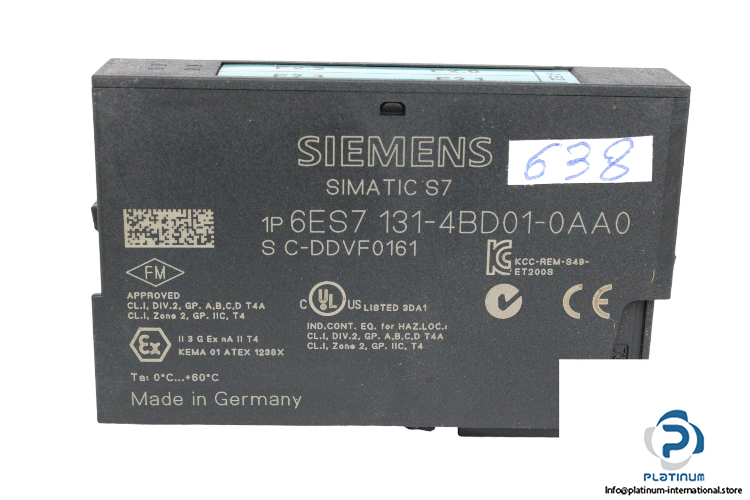

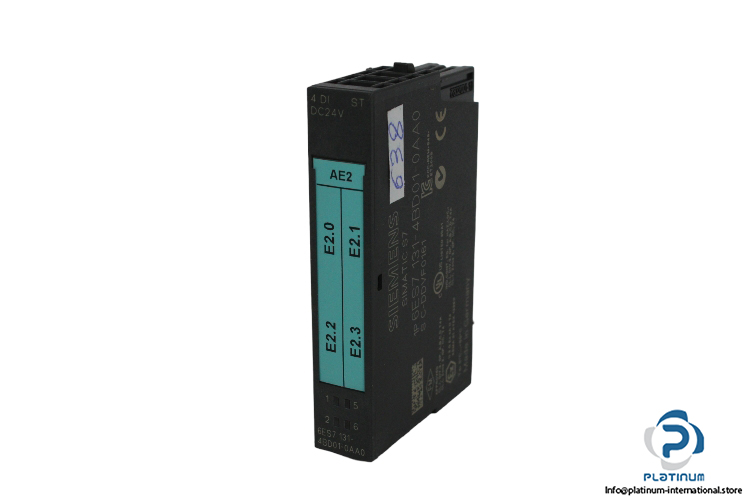

SIEMENS 6ES7131-4BD01-0AA0 DIGITAL INPUT MODULE
The Siemens SIMATIC S7 Digital Input Module for ET200S is a robust and efficient input solution, designed for reliable signal detection in industrial automation systems. It offers four digital inputs with precise voltage thresholds, optimized for high-speed applications and durable operation under harsh conditions.
Manufacturer: SIEMENS
Family: SIMATIC S7 FOR ET200S
Type: Digital Input Module
MRN: 6ES7131-4BD01-0AA0
Serial No.: C-DDVF0161
Technical Information
- No. of Digital Inputs (DI): 4
- Input: 24 V DC; -30 / +5V = œ0, 15 / 30V = œ1 (7 mA @ 24V)
- Supply Voltage: 24 V DC; From Power Module; Reverse Polarity Protected
- Current Consumption: 10 mA
- Power Loss: Typical 0.7 W
- Output Voltage: Min. L+(0.V)
- Rated Output Current: 500 mA
- Connectable Encoders: 2-wire BEROS, Max. 1.5 mA
- Ambient Temperature Range: -25 / +60°C
- Isolation: Tested With 500 V DC
- Dimensions: 15 x 81 x 52 mm
