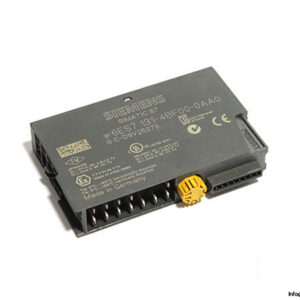

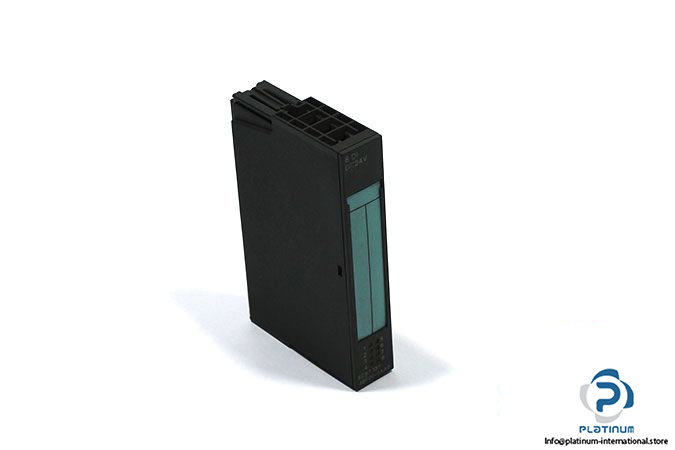

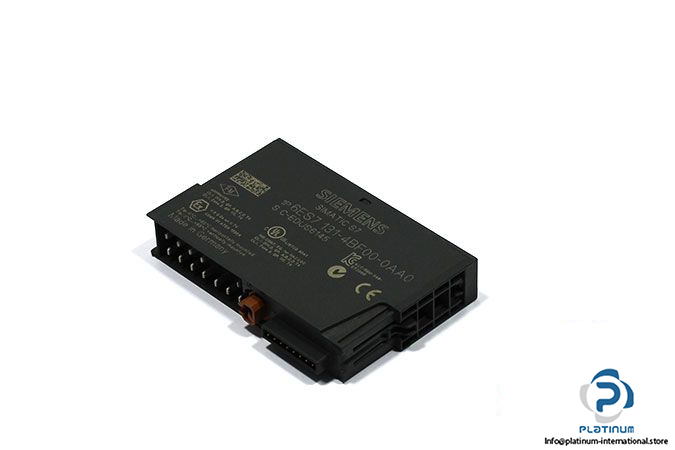

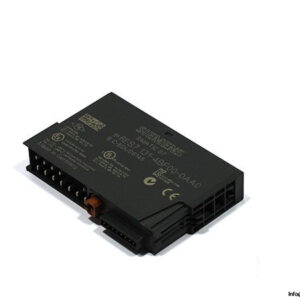

SIEMENS 6ES7131-4BF00-0AA0 DIGITAL INPUT MODULE “ SIMATIC S7
The Siemens 6ES7131-4BF00-0AA0 is a high-performance digital input module from the SIMATIC S7 ET 200S family. Designed for demanding industrial environments, this module supports precise digital signal acquisition with 8 input channels and advanced diagnostic capabilities. It ensures dependable operation in distributed automation systems and is ideal for integration into decentralized I/O structures.
Manufacturer: SIEMENS
Type: Digital Input Module
Family: SIMATIC S7
Model: 8 DI
MRN: 6ES7131-4BF00-0AA0

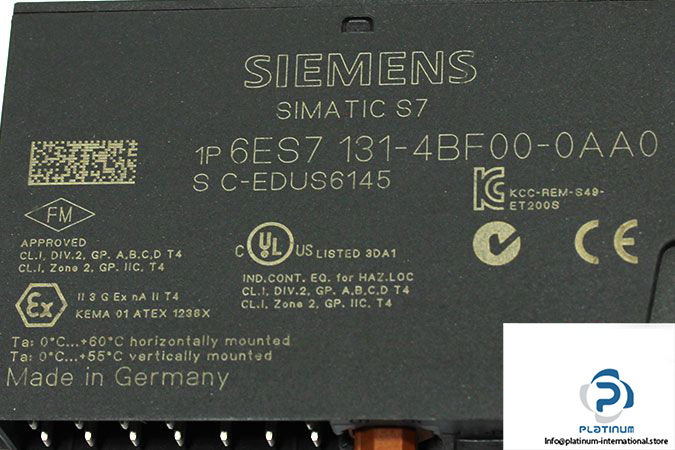

Serial No.: C-EDUS6145
Used for: ET 200S
Technical Information
- Number of Digital Inputs: 8
- Supply Voltage: 24 V DC
- Input Current (L+): Dependent on encoder
- Input Current (Backplane Bus 3.3 V DC): 10 mA
- Input Current (Signal 1): 5 mA
- Power Loss: 1.2 W
- Address Area (Max): 1 byte
- Address Area (Without Packing): 1 byte
- Input Characteristic Curve: IEC 61131, Type 1; 2-wire sensors connectable
- Simultaneously Controllable Inputs: 8
- Input Voltage: 24 V DC
- Signal 0 Range: 30 / +5 V
- Signal 1 Range: +15 / +30 V
- Cable Length (Unshielded/Shielded): 600 / 1000 m
- Permissible Potential Difference: 75 V DC / 60 V AC
- Status Indicator: Green
- Parameter Size: 3 byte
- Isolation Tested With: 500 V DC
- Dimensions: 15 x 81 x 52 mm
