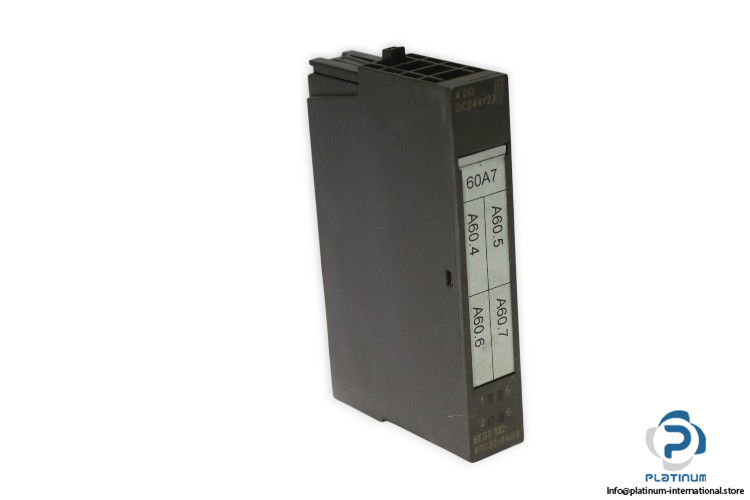

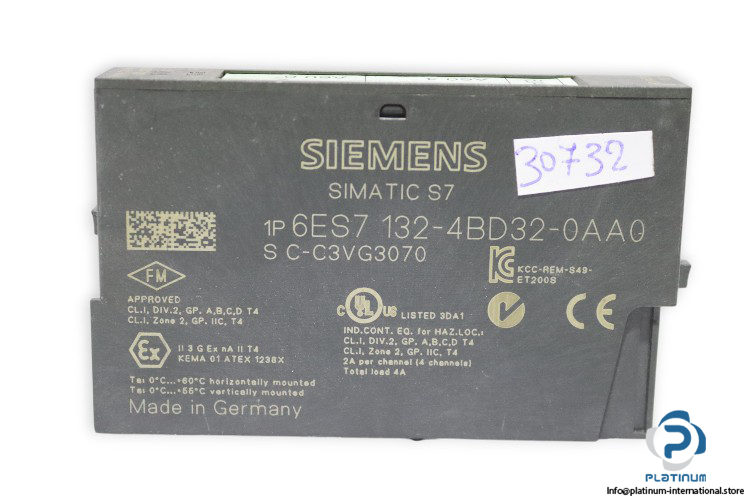

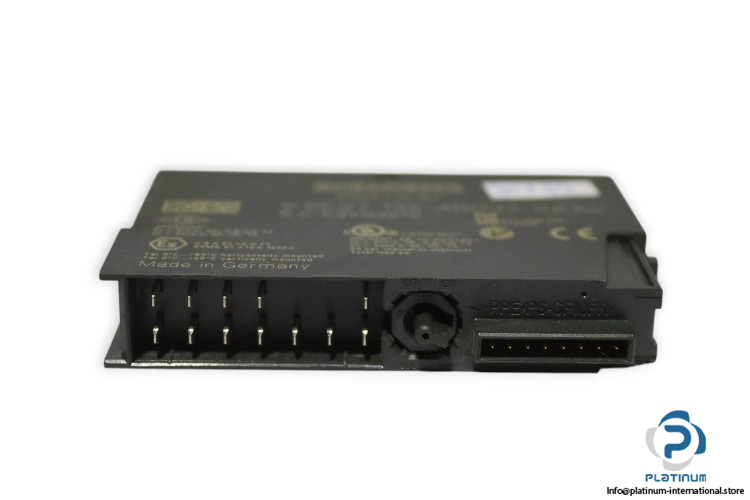

SIEMENS 6ES7132-4BD32-0AA0 Electronic Module
The SIEMENS 6ES7132-4BD32-0AA0 is a high-quality electronic module from the SIMATIC S7 family, designed for ET 200S systems. It ensures reliable performance with efficient power management and compact dimensions, making it ideal for industrial automation applications.
Manufacturer: SIEMENS
Type: Electronic Module
Model: 6ES7132-4BD32-0AA0
Serial No.: S C3VG3070
Family: SIMATIC S7
For: ET 200S
Technical Information
- Rated Value (DC): 24 V
- Input Current from Load Voltage L+ (without load): Max. 10 mA per channel
- Input Current from Backplane Bus 3.3 V DC: Max. 10 mA
- Power Loss: Typ. 1.6 W
- Address Space per Module: Max. 1 byte with packing 4 bit
- Digital Outputs: 4
- Type of Digital Output: Source output (PNP, current-sourcing)
- Response Threshold: Typ. 2.8 to 7.2 A
- Inductive Shutdown Voltage Limitation: Typ. L+ (-55 to -60 V)
- Width: 15 mm
- Height: 81 mm
- Depth: 52 mm
- Explosion Proof: Yes
