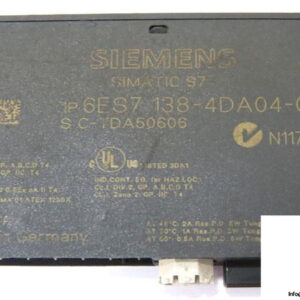

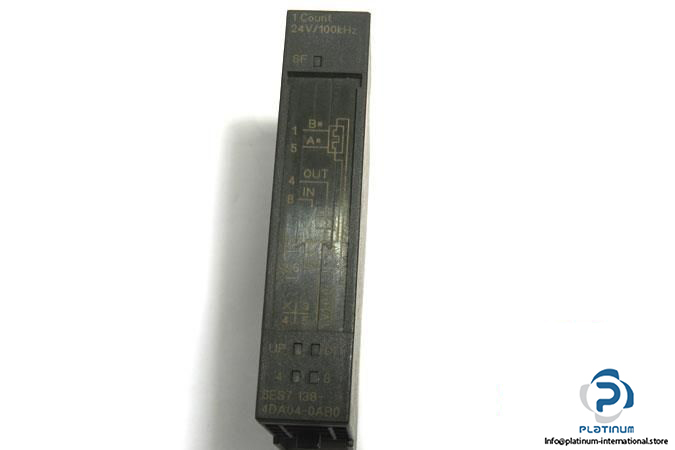

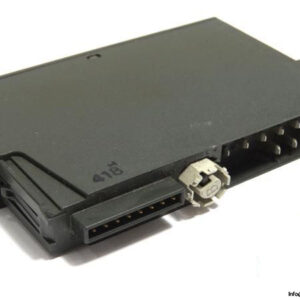

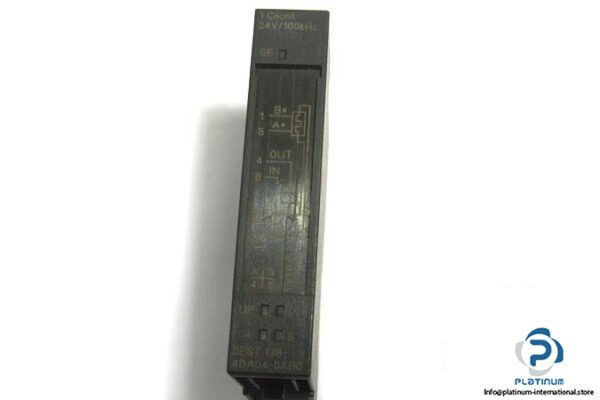

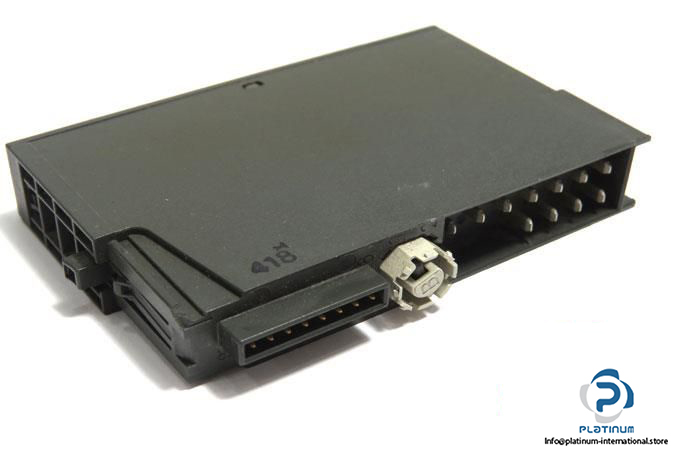

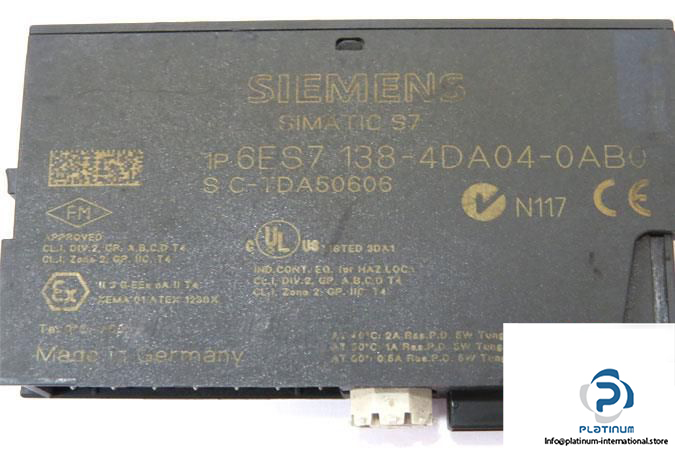

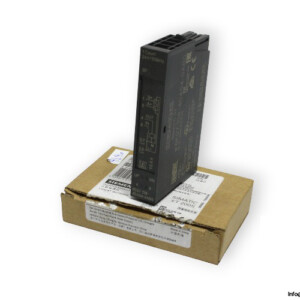

SIEMENS 6ES71384DA040AB0 COUNTER MODULE “ SIMATIC S7

Engineered for high-performance and reliable control, the Siemens 6ES71384DA040AB0 Counter Module is part of the SIMATIC S7 family. Ideal for automation systems, this electronics module is equipped with precision timing functions, synchronization, and gate control features, making it suitable for advanced industrial applications.

Manufacturer: Siemens
Type: Counter Module / Electronics Module
MNR: 6ES71384DA040AB0
Ref No.: C-TDA50606
Family: SIMATIC S7

Technical Information

• Function: Gate Control, Synchronization, Latch Function
• No. of Digital Outputs: 1
• Rated Input Voltage: 24 V DC
• Rated Input Current: 2 mA for signal “0”, 9 mA for signal “1”
• Load Voltage: 24 V DC (Reverse Polarity Protection)
• Current Consumption: 42 mA without load voltage, 10 mA from backplane bus 3.3 V DC
• Power Loss: Typical 1 W
• Input Delay: 2.5 μs
• Rated Output Voltage: 24 V DC
• Output Delay: “0” to “1” 100 μs
• Switching Frequency: 100 Hz (Resistive Load), 2 Hz (Inductive Load), 10 Hz (Lamp Load)
• Encoder Supply: 24 V, 500 mA (max. 1 encoder)
