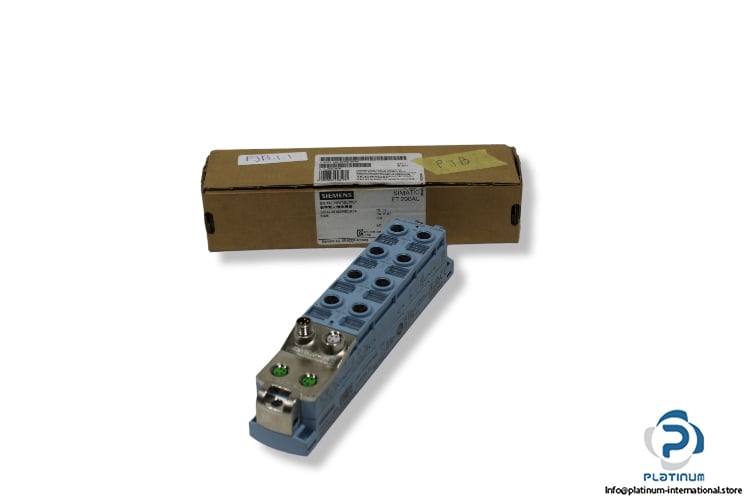

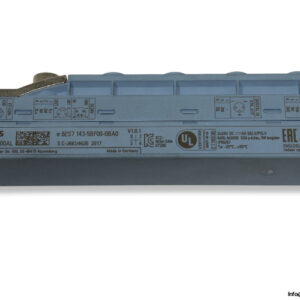

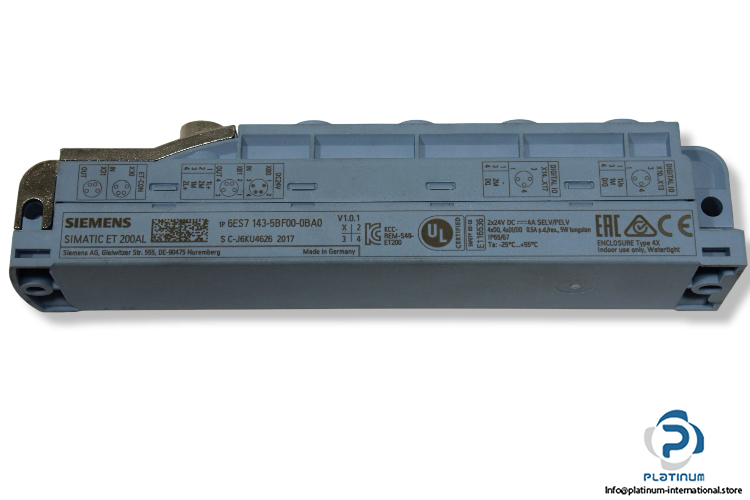

SIEMENS SIMATIC ET 200AL DIGITAL I/O MODULE “ DIQ 4+DQ 4X 24 V DC/0.5 A
Engineered for robust and distributed automation environments, the Siemens SIMATIC ET 200AL module delivers reliable input/output control with compact dimensions and IP65/67 protection. Ideal for field-level installations requiring modular connectivity and consistent performance in harsh conditions.
Manufacturer: Siemens
Type: Digital Input/Output Module
Designation: DIQ 4+DQ 4X 24 V DC/0.5 A
Family: SIMATIC ET 200AL
Model: 6ES7143-5BF00-0BA0
Reference No.: S C-J6KU4626
Technical Information
- Supply Voltage: 24 V DC
- Number of Digital Inputs: 4
- Number of Digital Outputs: 4
- Degree of Protection: IP65/67
- Dimensions (W x H x D): 30 mm × 159 mm × 40 mm
- Operating Temperature Range: -25 / +55 °C
- Electrical Connection (Inputs/Outputs): M8, 3-pole
- Electrical Connection (Supply Voltage): M8, 4-pole
- ET-Connection: M8, 4-pin, shielded
