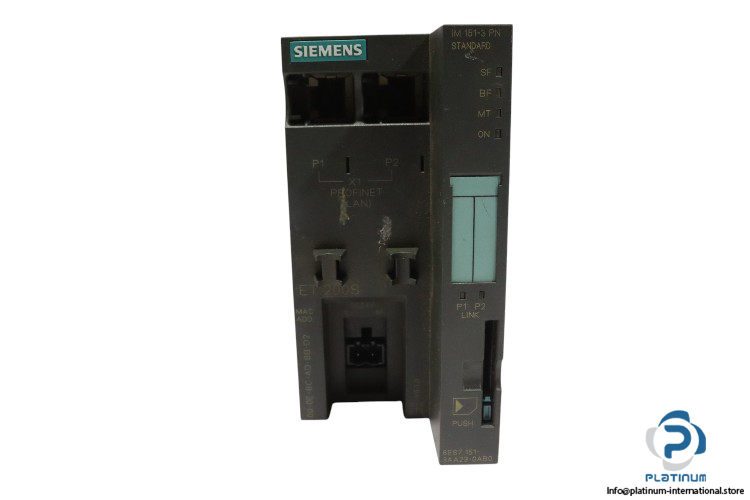

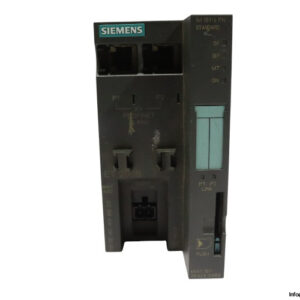

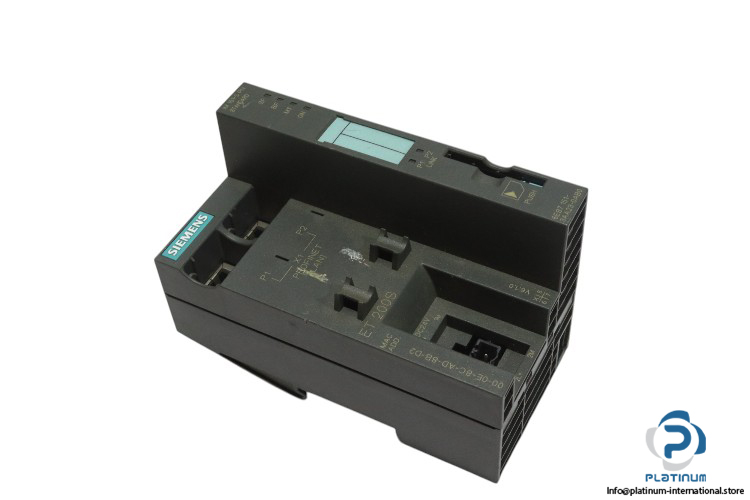

Siemens IM151-3 PN “ Interface Module

The Siemens IM151-3 PN interface module is designed to provide seamless communication between different components within the SIMATIC S7 system. Used for ET200S, this module supports advanced Ethernet services and ensures high-speed data transmission with excellent reliability in industrial settings.

• Manufacturer: Siemens
• Type: Interface Module
• Model: IM151-3 PN
• MNR: 6ES7151-3AA23-0AB0
• Family: SIMATIC S7
• Used For: ET200S

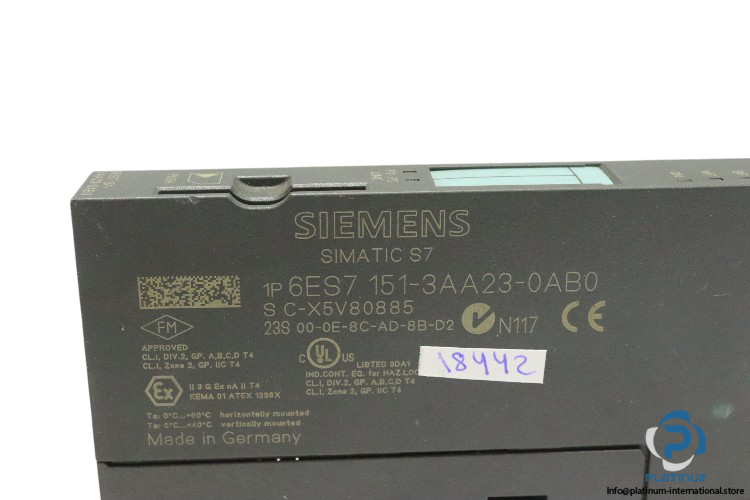

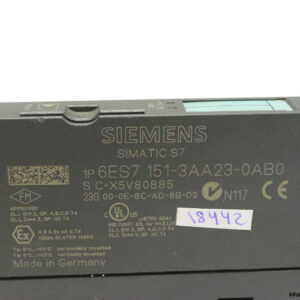

• Part No: S C-X5V80885 23S 00-0E-8C-AD-8B-D2

Technical Information:

• Supply Voltage: 24 V DC
• Current Consumption: 200 mA
• Power Dissipation: 3.3 W
• Insulation Test Voltage: 500 V DC
• Transmission Rate: 100 MBIT/S
• Transmission Procedure: 100BASE-TX
• Protocol: PROFIBUS IO
• Supported Ethernet Services:
• Ping
• ARP
• LLDP
• Net Diagnostics (SNMP)/MIB-2
• Prioritized Startup
• Media Redundancy
• Shared Device
• PROFINET Interface: 2x RJ45
• Operating Temperature: 0 to +60 °C
• Dimensions: 60 x 119.5 x 75 mm
