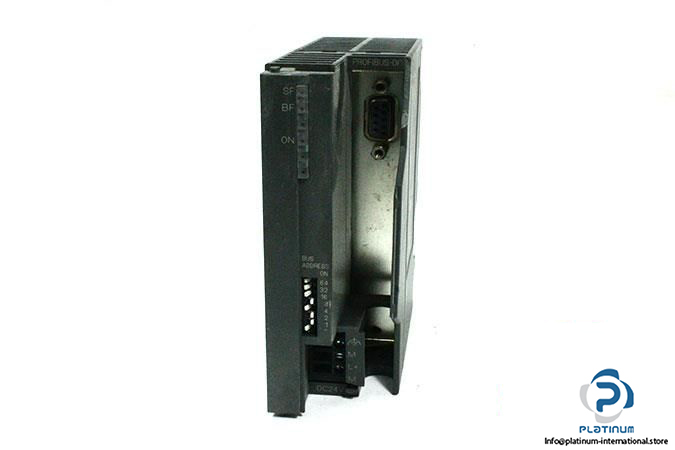

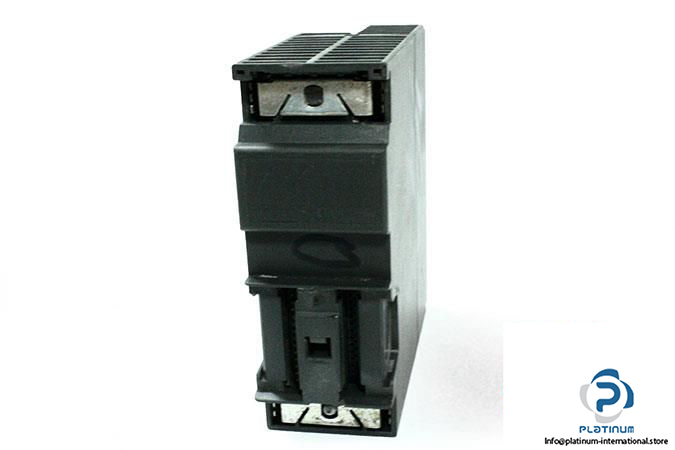

SIEMENS SIMATIC DP S7-300 IM 153-1 INTERFACE MODULE

The Siemens SIMATIC DP S7-300 IM 153-1 is a high-performance connection interface module designed for ET 200M distributed I/O systems. This unit ensures seamless data communication via PROFIBUS DP for automation tasks, making it essential for reliable Siemens PLC integration.

Manufacturer: SIEMENS
Family: SIMATIC DP S7-300
Type: Connection Interface Module
Model: IM 153-1

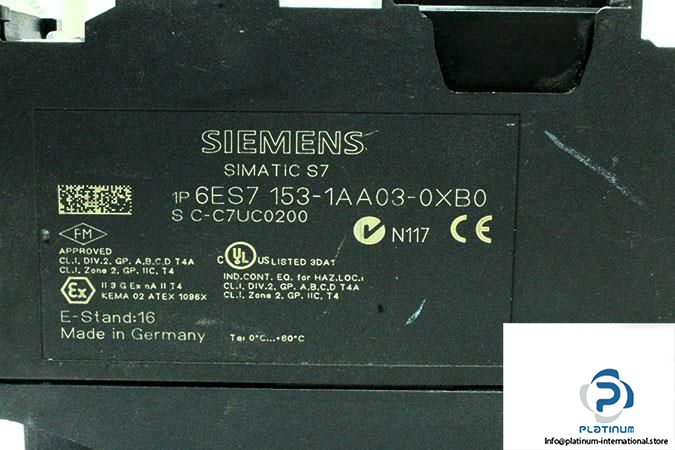

MRN: 6ES7153-1AA03-0XB0
SN: C-C7UC0200
E STAND: 16
Uses: For ET 200M Siemens PLC

Technical Information

• Supply Voltage: 24 V DC
• Input Current: 350 mA
• Inrush Current: typ. 2.5 A
• Rated Output Voltage: 5 V DC
• Output Current: 1 A for backplane bus 5 V DC
• Power Loss: 3 W
• Connection of PROFIBUS: 9-pin sub D socket
• Isolation: Tested with 500 V
• Protection: IP20
• Dimensions (W x H x D): 40 × 125 × 117 mm
• Operating Temperature: 0 / 60°C
