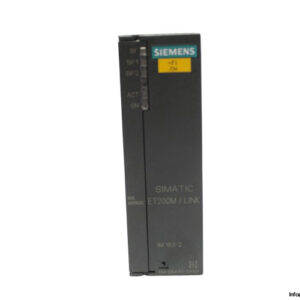

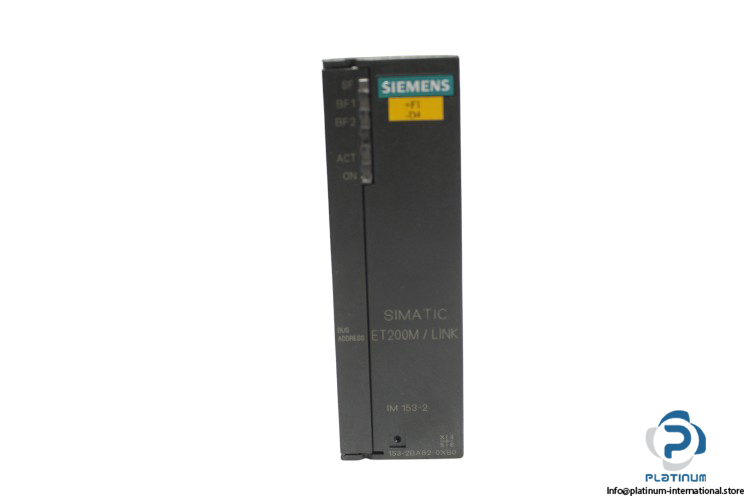

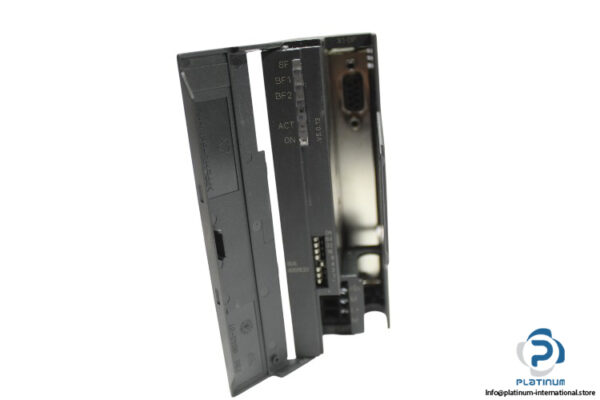

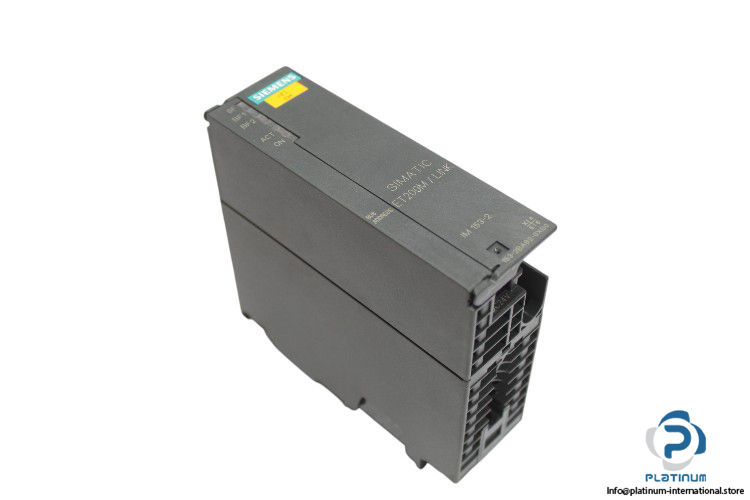

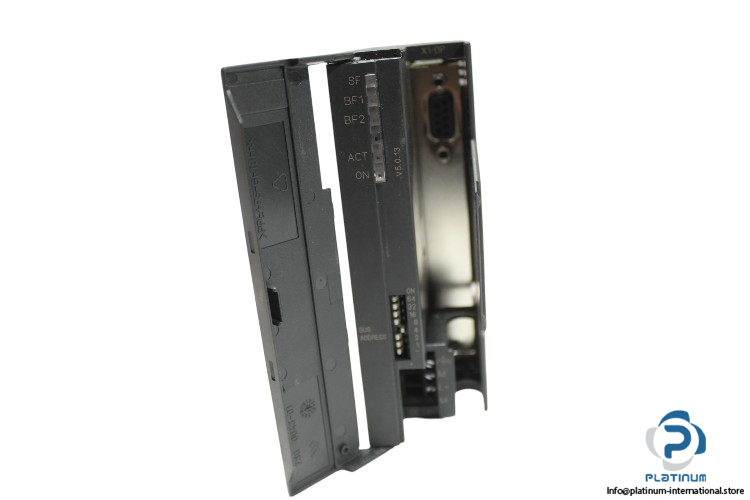

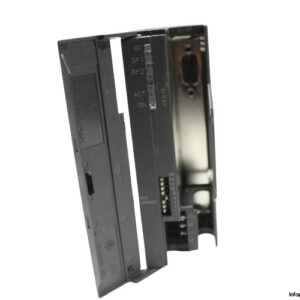

Siemens 153-2BA82-0XB0 “ Interface Module/Connection Module
The Siemens 153-2BA82-0XB0 is an advanced interface module designed for seamless integration in industrial automation systems. As part of the SIMATIC S7 family, it facilitates communication through PROFIBUS DP and connects various modules with efficiency and reliability.
- Manufacturer: Siemens
- Type: Interface Module/Connection Module
- Model: 153-2BA82-0XB0
- MNR: 6ES7153-2BA82-0XB0
- Family: SIMATIC S7

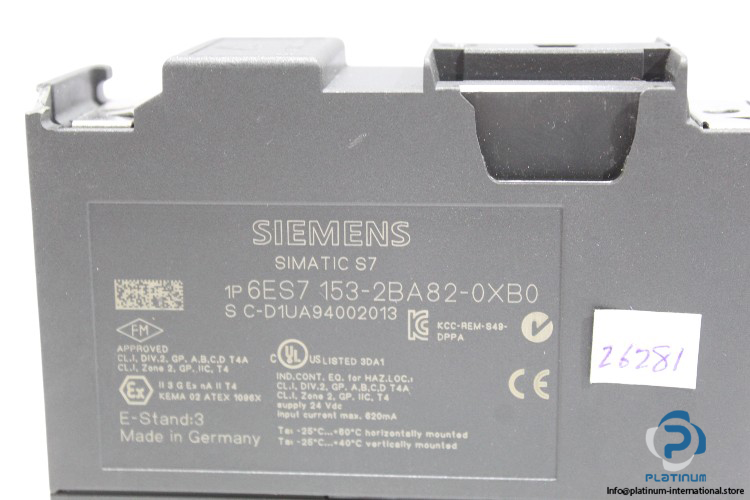

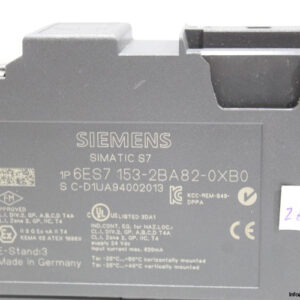

- Ref. Code: S C-D1UA94002013
Technical Information:
- Connection: DP/PA link and ET200M IM153-2 HF
- Input Current: 650 mA
- Supply Voltage: 24 V DC
- Power Loss: 5.5 W
- Inrush Current (typical): 3 A
- Output Current: 1.5 A
- Mains/Voltage Failure Stored Energy Time: 5 ms
- Addressing Volume: Outputs: 244 bytes, Inputs: 244 bytes
- Number of Modules per DP device Interface (max.): 12
- Interfaces: RS 485
- Transmission Rate: Max. 12 Mbit/s
- Bus Protocol/Transmission Protocol: PROFIBUS DP to EN 50170
- Operating Temperature: -25 to 60°C
- Protection Degree: IP20
- Dimensions: 40 x 125 x 117 mm
