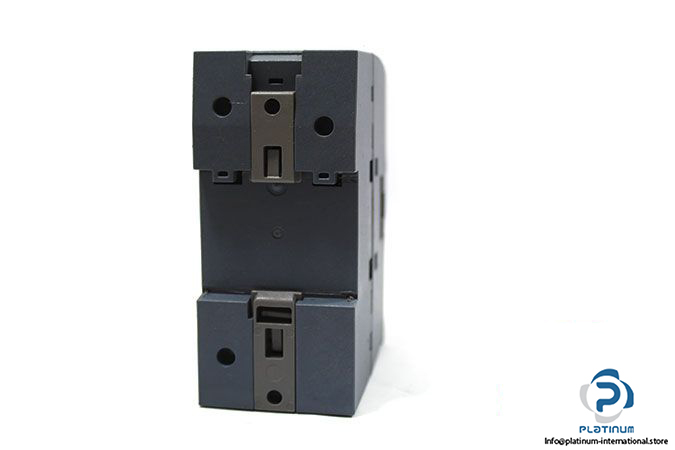

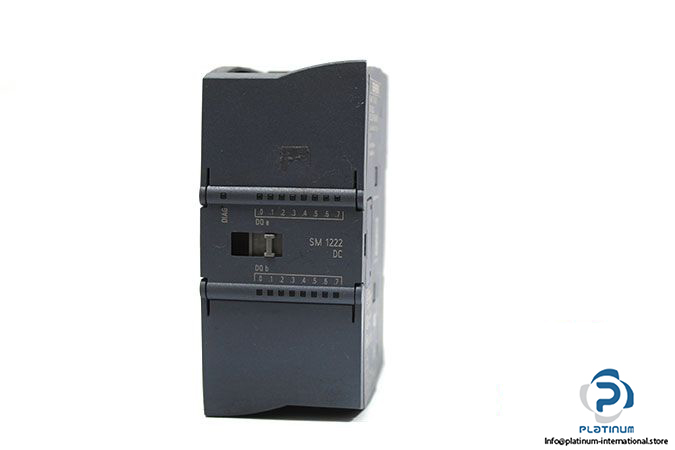

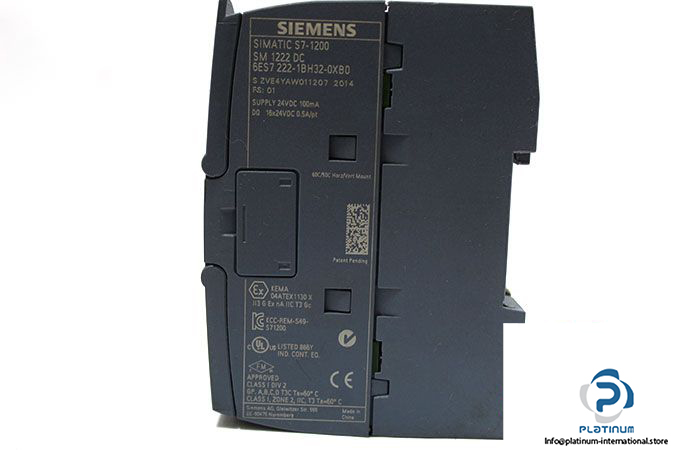

SIEMENS SM 1222 DIGITAL OUTPUT MODULE “ S7-1200 FAMILY

The Siemens SM 1222 digital output module is part of the S7-1200 automation family, designed for precision control in industrial applications. It provides reliable performance, high-speed switching, and robust protection in a compact form.

Manufacturer: Siemens
Family: S7-1200
Type: Digital Output Module
Model: SM 1222
MRN: 6ES7222-1BH32-0XB0
Serial No.: ZVE4YAW011207

Technical Information

• Supply Voltage: 20 V DC “ 28.8 V DC
• Input Current: 100 mA
• Power Loss: 2.5 W
• Number of Digital Outputs: 16
• Output Voltage: 24 V DC
• Output Current œSignal 1: 0.5 A
• Switching Capacity (Resistive Load): 0.5 A
• Switching Capacity (Inductive Load): Max. 0.5 A
• Switching Capacity (Lamp Load): Max. 5 W
• Output Delay: 50 µs œ0 to œ1, 200 µs œ1 to œ0
• Protection: IP20
• Operating Temperature: -20 °C to 60 °C
• Dimensions (mm): 45 x 100 x 75
