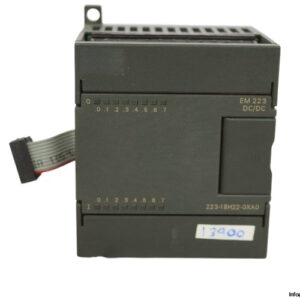

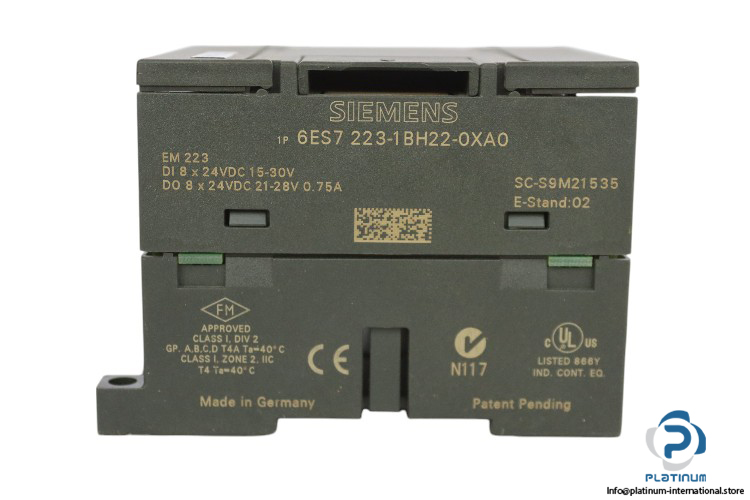

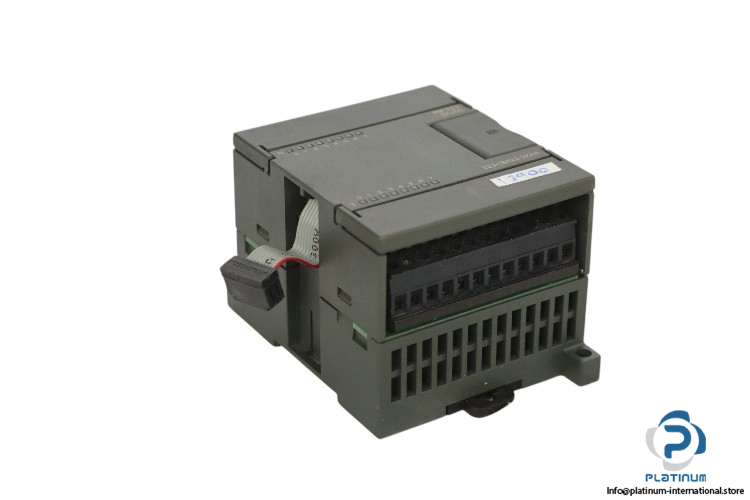

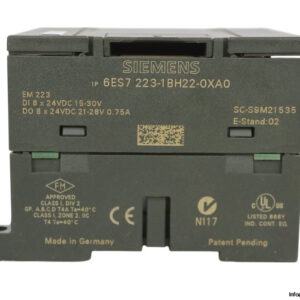

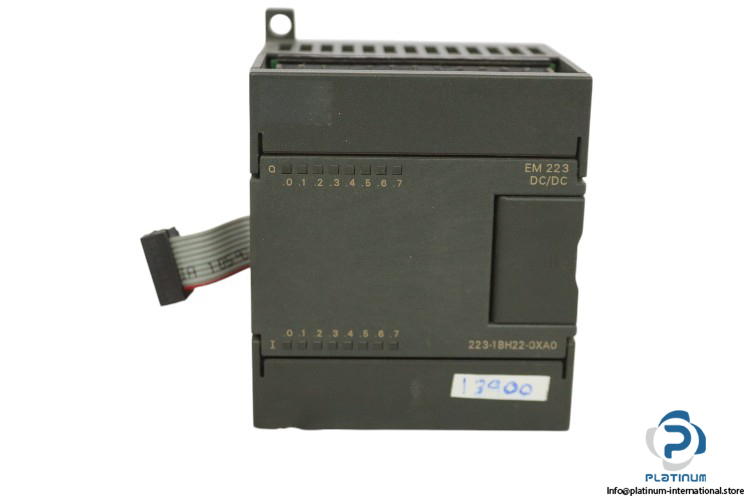

Siemens 6ES7223-1BH22-0XA0 Digital I/O Module

The Siemens 6ES7223-1BH22-0XA0 Digital I/O Module is designed for seamless integration with the SIMATIC S7-200 series, offering reliable digital input and output functionality. With a compact design and efficient power handling, it is ideal for industrial automation applications requiring precise signal control.

• Manufacturer: Siemens
• Type: Digital I/O Module
• MNR: 6ES7223-1BH22-0XA0
• Model: EM223
• Family: SIMATIC S7-200

Technical Information

• Used: For S7-22X CPU Only
• Supply Voltage: 24 V DC (15 to 30 V DC)
• Input Current: 80 mA
• Output Voltage:
  • For signal 0: 0 to 5 V
  • For signal 1: 24 V DC (21 to 28 V DC)
• Output Current: 750 mA
• Power Loss: Typ. 3 W
• No. of Digital Inputs (DI): 8
• No. of Digital Outputs (DO): 8
• Input Delay: At 0 to 1, max. 4.5 ms
• Dimensions: 71.2 x 80 x 62 mm

Engineered for high efficiency and seamless integration, the Siemens 6ES7223-1BH22-0XA0 is the perfect choice for automation systems requiring reliable digital input and output control.
