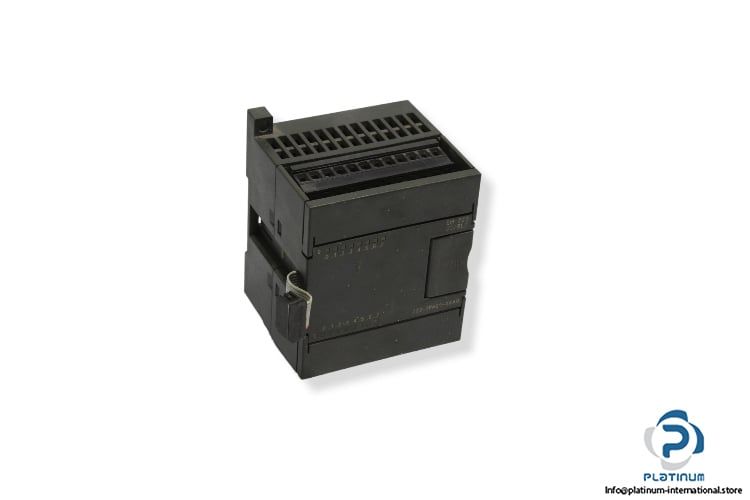

SIEMENS EM 223 RELAY MODULE “ SIMATIC S7-200

The Siemens EM 223 is a versatile relay module designed exclusively for SIMATIC S7-22X CPUs. Built for high-performance automation applications, it offers seamless digital I/O handling with reliable signal transmission and power efficiency.

Manufacturer: SIEMENS
Type: Relay Modules
Family: SIMATIC S7-200
Model: EM 223

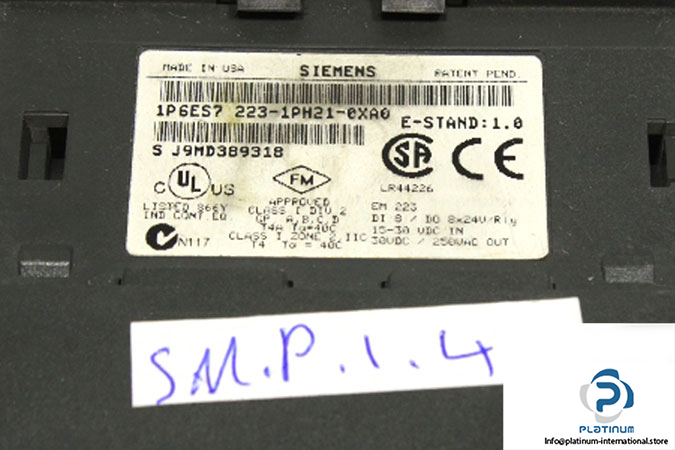

MRN: 6ES7223-1PH21-0XA0
SN: J9MD389318
Application: Only For S7-22X CPU

Technical Information

• Input Voltage: Rated 24 V DC
• Signal œ0 Range: 0 / 5 V DC
• Signal œ1 Range: 15 / 30 V DC
• Digital Input Current: 4 mA
• No. of Digital Inputs (DI): 8
• No. of Digital Outputs (DO): 8, Relays
• Digital Output Voltage: 30 V DC
• Relay Voltage: 250 V AC
• Digital Output Current (Signal œ1 Rated): 2000 mA
• Power Loss: 3 W
• Dimensions: 71 x 80 x 62 mm
