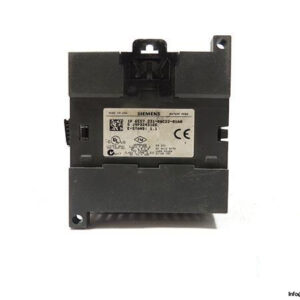

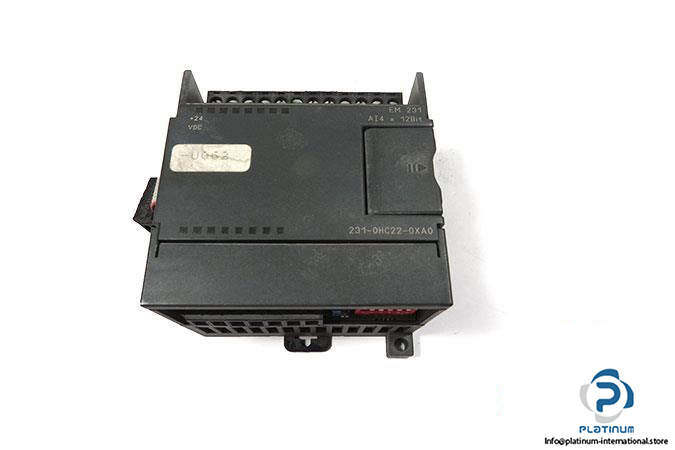

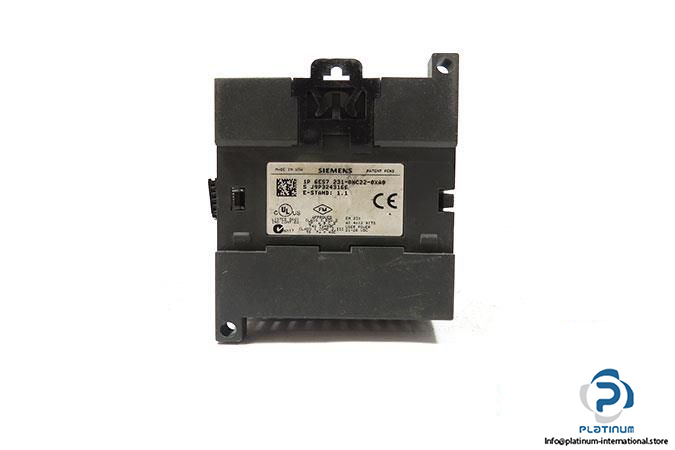

SIEMENS SIMATIC S7-200 EM 231 ANALOG INPUT MODULE

The Siemens EM 231 is a reliable analog input module designed for the SIMATIC S7-200 automation system. Engineered for integration with S7-22x CPUs, it provides accurate and stable analog signal acquisition, making it ideal for industrial control applications.

Manufacturer: SIEMENS
Family: SIMATIC S7-200
Type: Analog Input Module
Model: EM 231

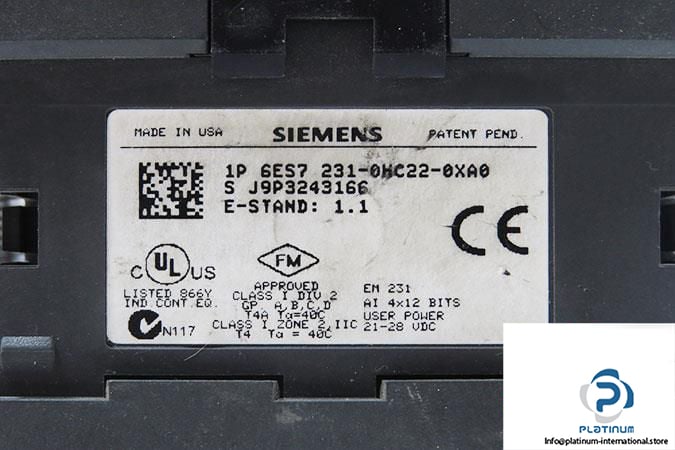

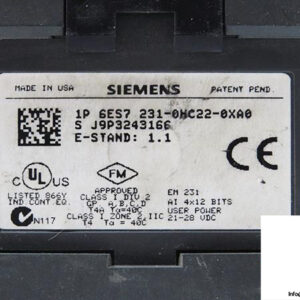

MRN: 6ES7231-0HC22-0XA0
SN: J9P3243166
E STAND: 1.1
Uses: Only for S7-22x CPU

Technical Information

• Number of Analog Inputs: 4
• Input Current: 60 mA from load voltage L+, 20 mA from backplane bus
• Power Loss: 2 W
• Cable Length: 100 m to the sensor, shielded
• Dimensions (W x H x D): 71.2 x 80 x 62 mm
