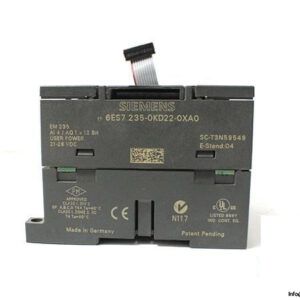

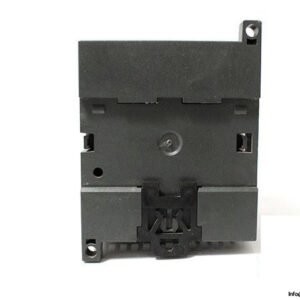

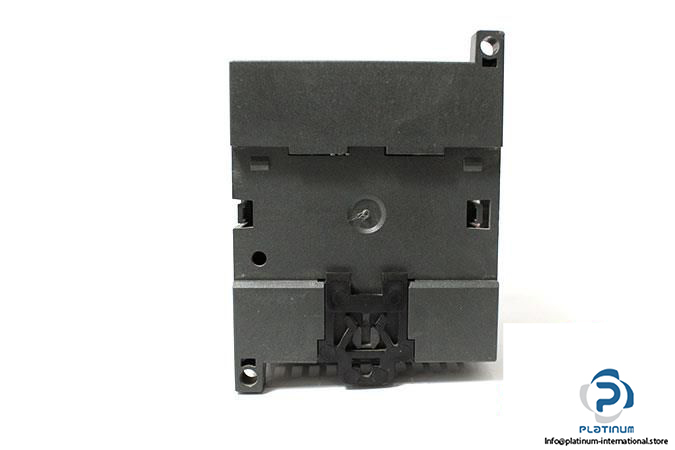

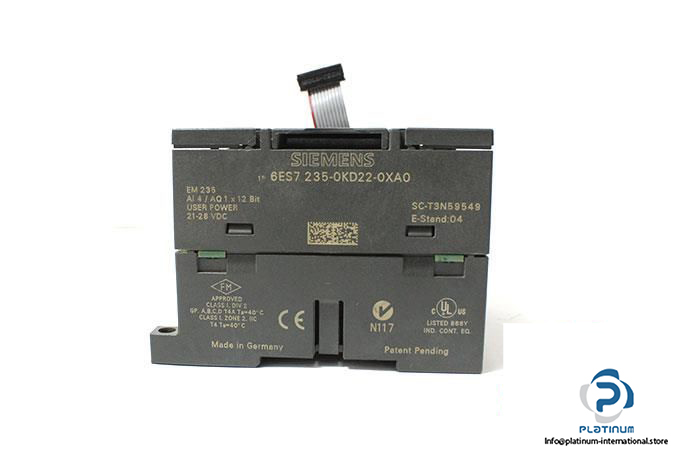

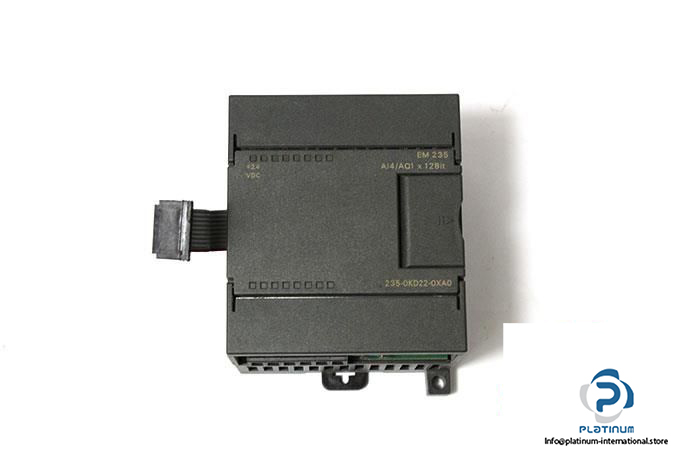

SIEMENS SIMATIC S7-200 EM 235 ANALOG MODULE

The Siemens EM 235 analog module is a compact and high-performance I/O expansion unit for SIMATIC S7-200 series automation systems. Designed to deliver precise analog input and output capabilities, this module supports a range of industrial measurement and control applications.

Manufacturer: SIEMENS
Family: SIMATIC S7-200
Type: Analog module
Model: EM 235
MRN: 6ES7235-0KD22-0XA0
SN: SC-T3N59549
Uses: For SIMATIC S7 “ 22X CPU

Technical Information

• No. of Analog Inputs: 4 (Differential)
• Input Current: Max. 60 mA from external supply (24 V DC), Max. 30 mA from backplane bus (5 V DC)
• Input Range: 0 / 20 mA
• No. of Analog Outputs: 1
• Output Voltage: -10 V to +10 V
• Output Current: 0 / 20 mA
• Setting Time: 100 µs for voltage output, 2 ms for current output
• Power Loss: Typ. 2 W
• Dimensions: 71.2 x 80 x 62 mm
