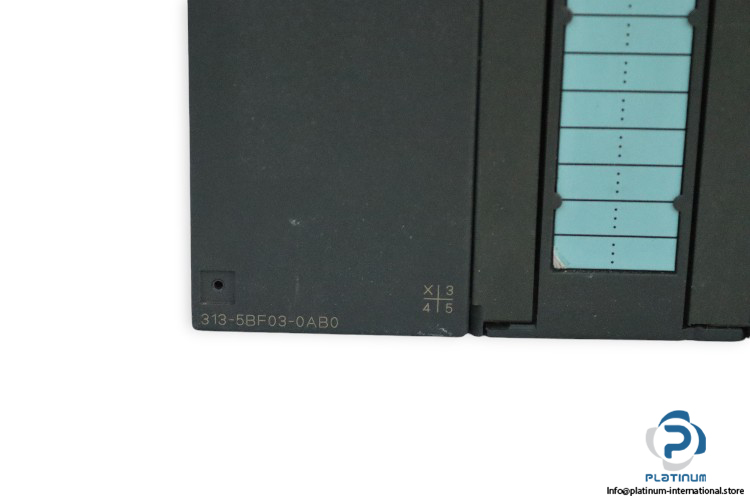

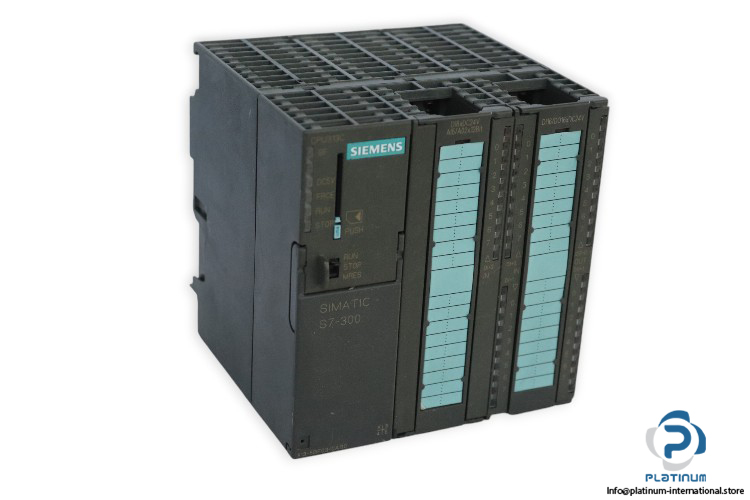

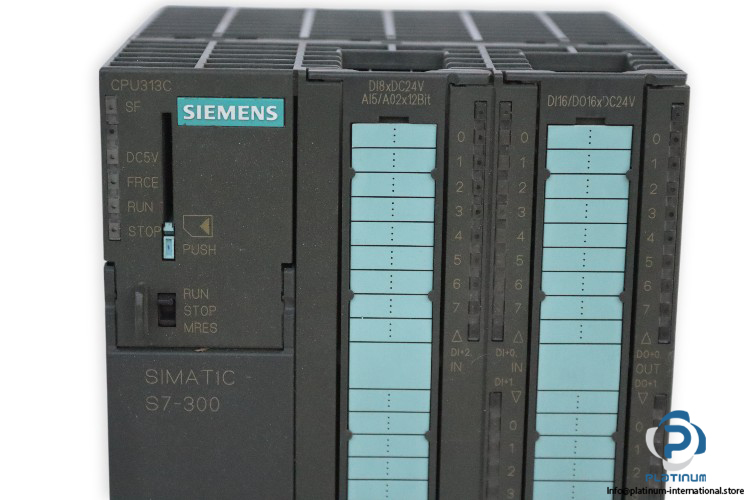

SIEMENS 6ES7313-5BF03-0AB0 CPU “ SIMATIC S7-300

The Siemens 6ES7313-5BF03-0AB0 is a powerful and reliable CPU from the SIMATIC S7-300 family, designed for industrial automation systems requiring high performance and dependable control. Built with explosion-proof design (EX), it ensures safe operation in demanding environments while offering versatile connectivity and integrated I/O capabilities.

Manufacturer: Siemens
Type: CPU
Model: 6ES7313-5BF03-0AB0
Family: SIMATIC S7-300

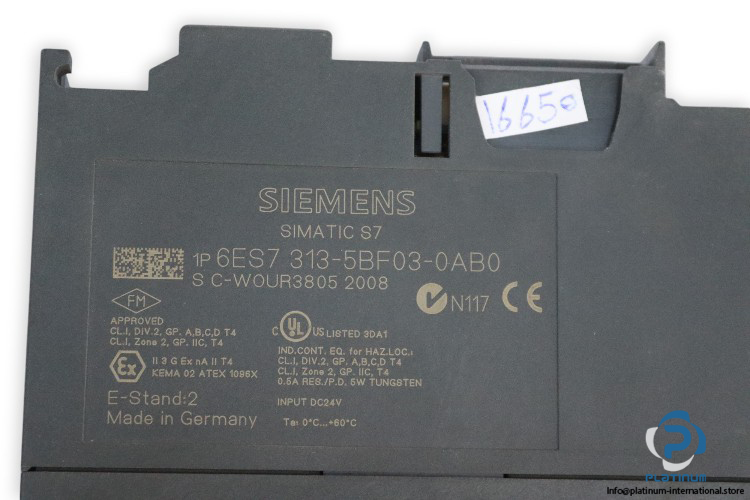

Serial No.: S C-WOUR3805 2008
E Stand: 2

Technical Information

• Explosion Proof: EX
• Supply Voltage: 24 V DC
• Rated Current Consumption: 700 mA
• Power Loss: typ. 14 W
• Work Memory: 64 kbyte; for program and data
• Interface Type: Integrated RS 485 interface
• Digital Inputs (DI): 16
• Digital Outputs (DO): 16
• Analog Inputs (AI): 4
• Analog Outputs (AO): 2
• Counters: 3
• Dimensions: 120 x 125 x 130 mm
