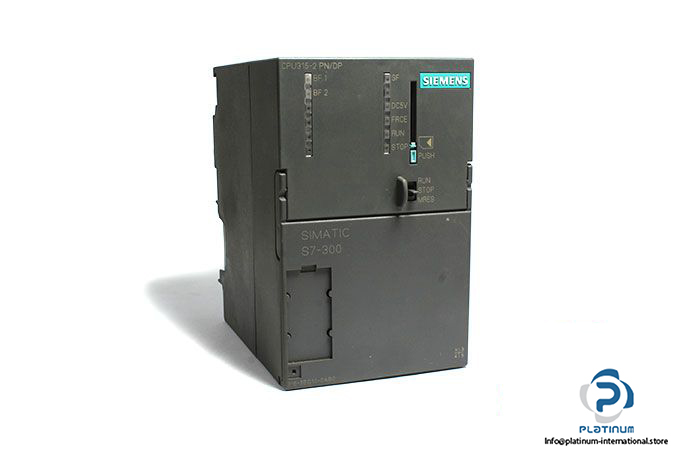

SIEMENS SIMATIC S7-300 CPU 315-2 PN/DP
The Siemens SIMATIC S7-300 CPU 315-2 PN/DP is a high-performance central processing unit designed for complex automation tasks. Equipped with integrated PROFINET and PROFIBUS interfaces, it provides powerful processing capabilities, extensive I/O capacity, and support for multiple programming languages, making it ideal for demanding industrial control applications.
Manufacturer: Siemens
Family: SIMATIC S7-300
Type: Central Processing Unit

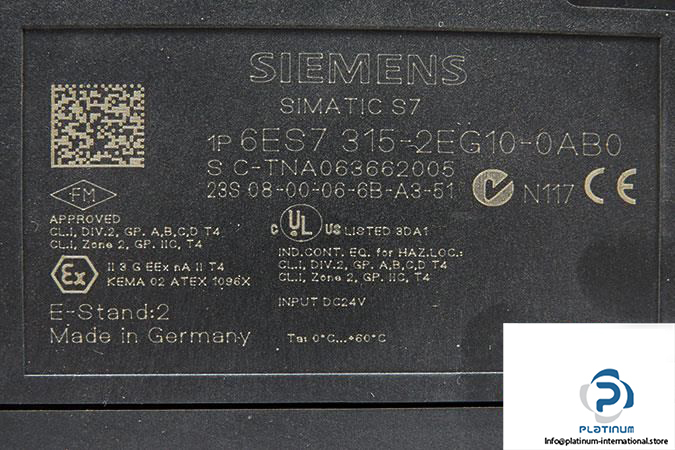

Model: CPU 315-2 PN/DP
MRN: 6ES7315-2EG10-0AB0
SN: S C-TNA063662005
Ref No.: 23S 08-00-06-6B-A3-51
Technical Information
- Supply Voltage: 24 V DC
- Inrush Current: typ. 2.5 A
- Working Memory: 128 Kbyte
- Processing Time Range: 0.1 μs “ 3 μs
- Explosion Proof: EX
- Digital I/O Channels: 16,384
- Analog I/O Channels: 1,024
- Programming Languages: STEP7, KOP, FUP, AWL, SCL, GRAPH, HiGraph
- Dimensions: 80 x 125 x 130 mm
