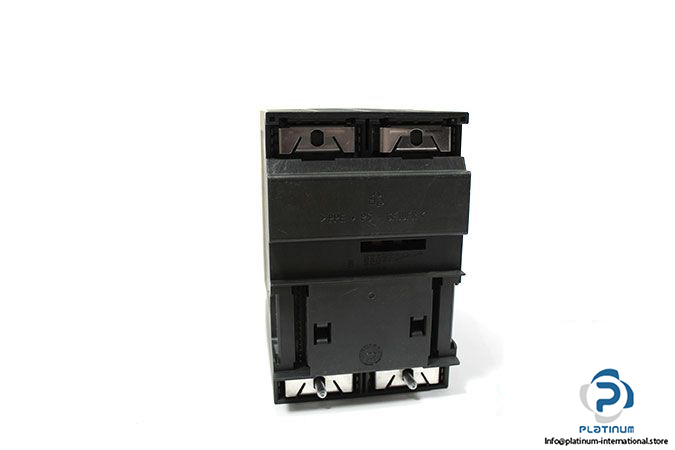

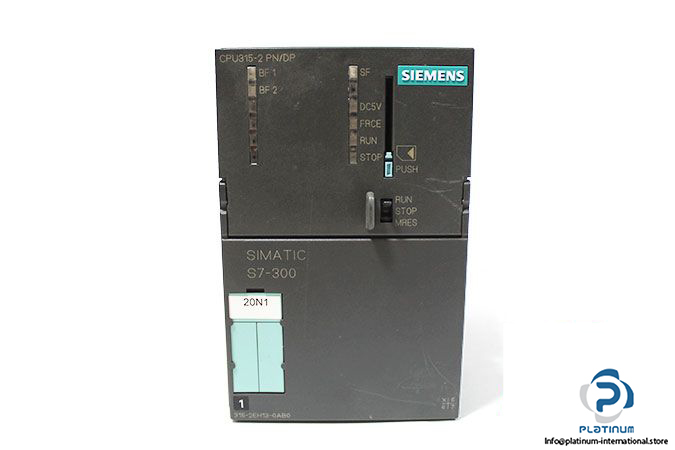

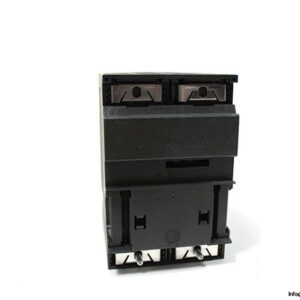

SIEMENS SIMATIC S7-300 CPU315-2 PN/DP CENTRAL PROCESSING UNIT

The Siemens CPU315-2 PN/DP is a powerful Central Processing Unit from the SIMATIC S7-300 family, engineered for medium-range automation tasks. With integrated Ethernet and PROFINET interfaces, this CPU offers exceptional performance and flexibility for industrial applications.

Manufacturer: Siemens
Family: SIMATIC S7-300
Type: Central Processing Unit
Model: CPU315-2 PN/DP

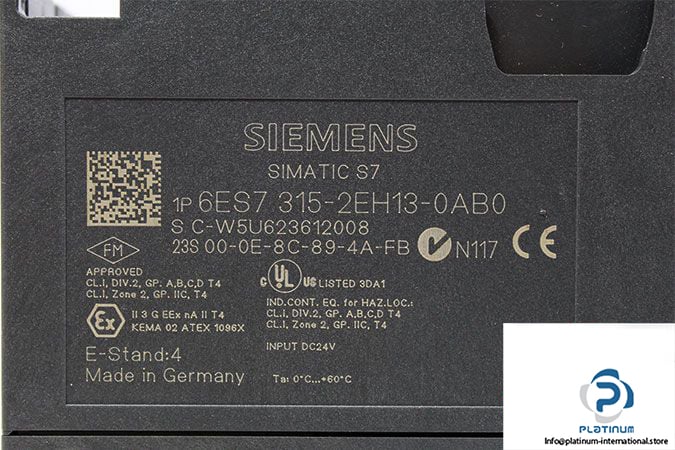

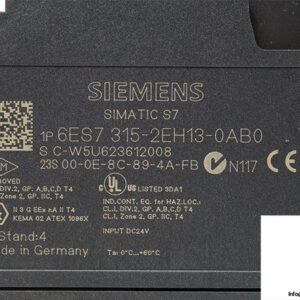

MRN: 6ES7315-2EH13-0AB0

Technical Information

• Supply Voltage: 24 V DC
• Rated Current Consumption: 650 mA
• No-load Current Consumption: 100 mA
• Inrush Current: 2.5 A
• Power Loss: 3.5 W
• Integrated Work Memory: 256 Kbyte
• Plug-in MMC: max. 8 Mbyte
• I/O Address Area: 2 Kbyte
• Digital Channels: 16384 Inputs, 16384 Outputs
• Expansion Units: max. 3
• Interfaces: Ethernet, PROFINET, RS485
• Dimensions (W x H x D): 80 x 125 x 130 mm
