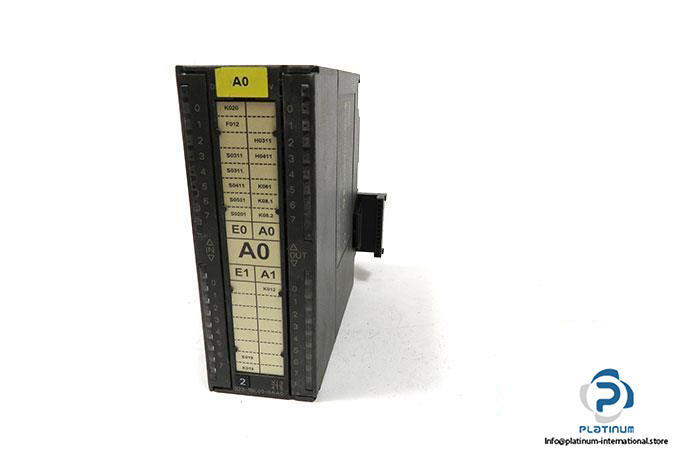

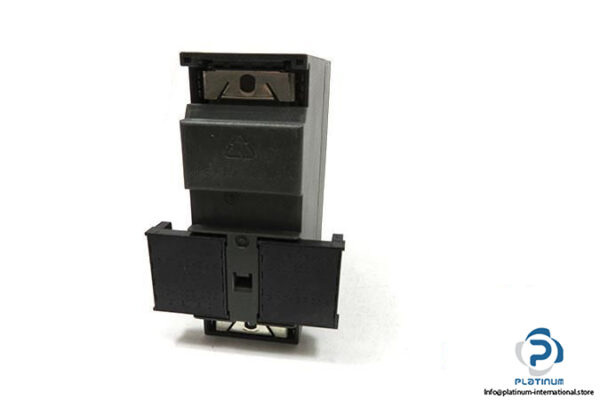

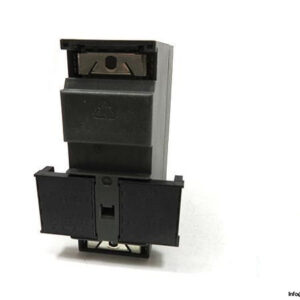

SIEMENS SM323 DIGITAL MODULE

The Siemens SM323 is a robust digital module engineered for seamless integration into automation systems. Designed with high-speed switching, dependable performance, and versatile connectivity, this module ensures consistent operation in industrial environments.

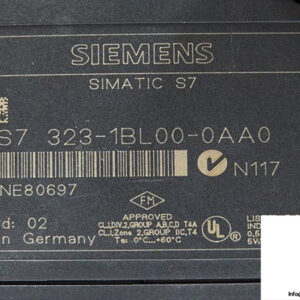

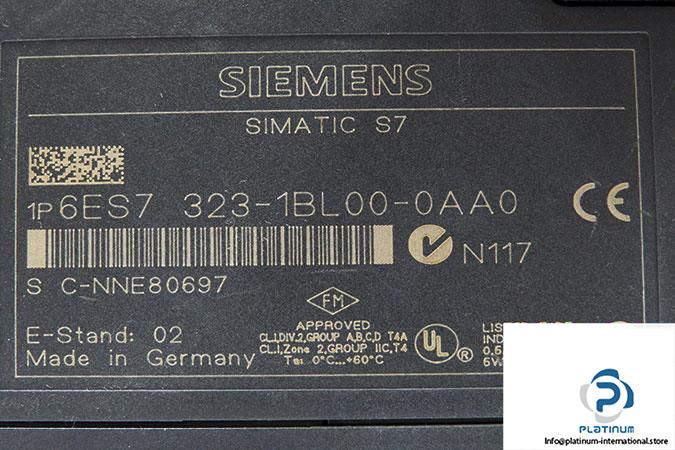

Manufacturer: Siemens
Type: Digital Module
Model: SM323
Part No.: 6ES7 323-1BL00-0AA0
SN: C-NNE80697
E STAND: 02

Technical Information

• Supply Voltage: 24 V DC
• Input Current (L+): Max. 80 mA (without load)
• Input Current (Backplane Bus 5V DC): Max. 80 mA
• Power Loss: Typ. 6.5 W
• Number of Digital Inputs: 16
• Connection Method: 40-pin Front Connector (Required)
• Output Delay with Resistive Load:
  – “0” to “1”: Max. 100 µs
  – “1” to “0”: Max. 500 µs
• Dimensions: 40 x 125 x 120 mm
