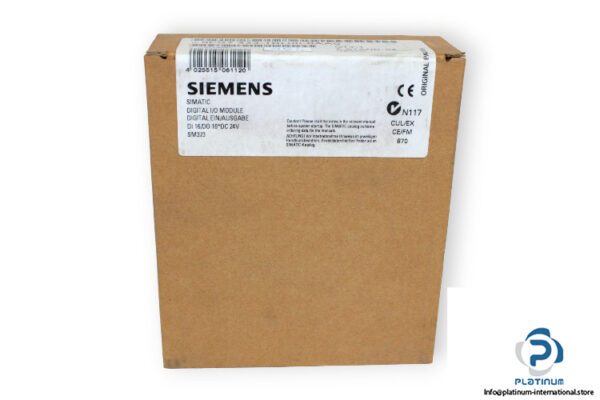

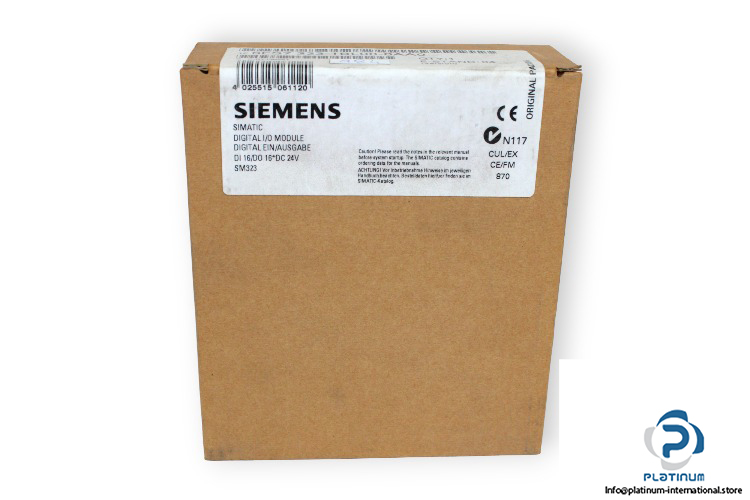

SIEMENS SM323 DIGITAL MODULE

The Siemens SM323 is a high-performance digital input/output module engineered for seamless integration with automation systems. With a compact design and reliable 24V DC operation, it offers precise and fast signal processing for demanding industrial environments.

Manufacturer: Siemens
Type: Digital Module
Model: SM323

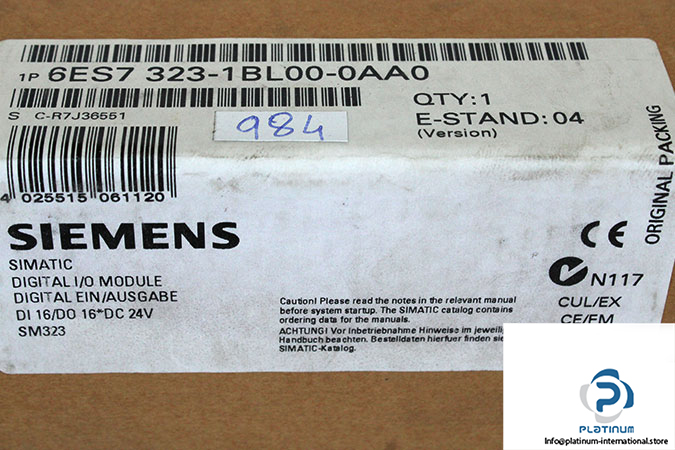

Part No.: 6ES7 323-1BL00-0AA0
SN: C-R7J36551
E-STAND: 04

Technical Information

• Supply Voltage: 24 V DC
• Input Current: From load voltage L+ (without load): max. 80 mA; From backplane bus (5 V DC): max. 80 mA
• Power Loss: Typ. 6.5 W
• Number of Digital Inputs: 16
• Connection Method: Required front connector 40-pin
• Output Delay with Resistive Load:
  • œ0 to œ1: max. 100 μs
  • œ1 to œ0: max. 500 μs
• Dimensions (W x H x D): 40 x 125 x 120 mm
