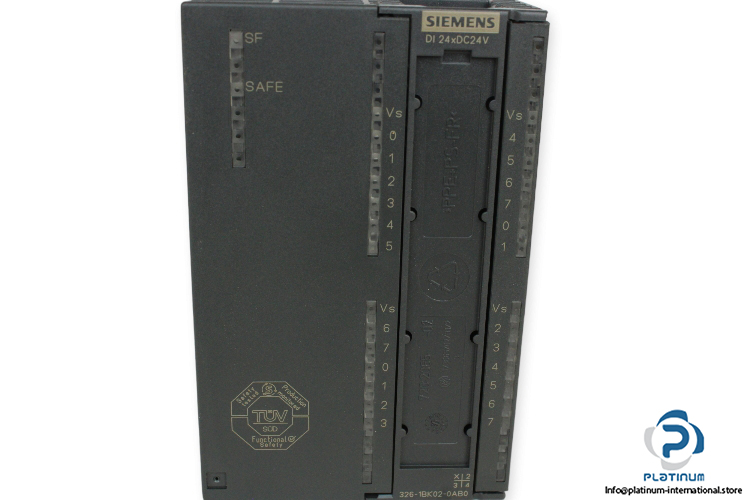

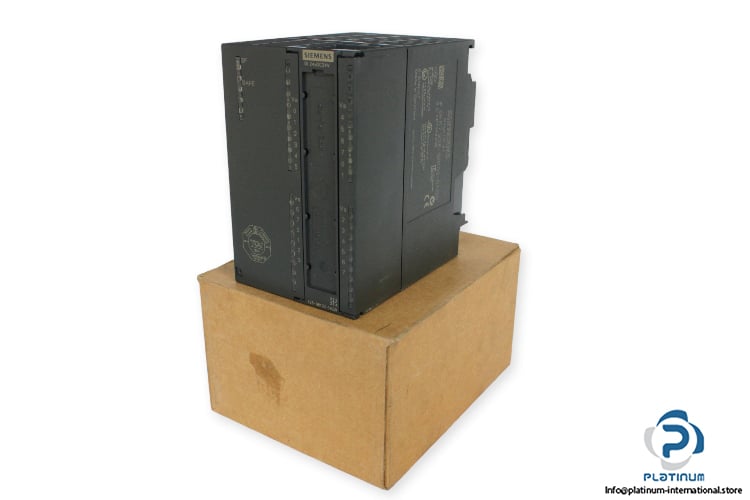

SIEMENS 6ES7326-1BK02-0AB0 DIGITAL INPUT MODULE

The Siemens 6ES7326-1BK02-0AB0 is a high-efficiency digital input module from the Simatic S7-300 family. Built for industrial-grade control systems, it supports 24 digital inputs with reliable electrical isolation and robust performance across high ambient temperatures.

Manufacturer: SIEMENS
Type: Digital Input Module
Family: Simatic S7-300
Model: 6ES7326-1BK02-0AB0

Technical Information

• Rated Value (DC): 24 V
• Load Voltage L+ (Max): 450 mA (without load)
• Backplane Bus 5 V DC (Max): 100 mA
• Number of Outputs: 4; Isolated
• Output Current: 400 mA
• Power Loss: 10 W
• Number of Digital Inputs: 24
• Max Ambient Temperature: 60 °C
• Dimensions: 80 x 125 x 120 mm
