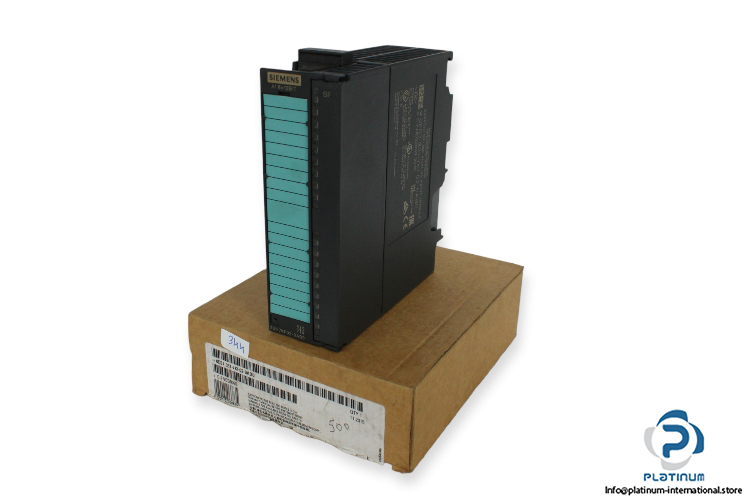

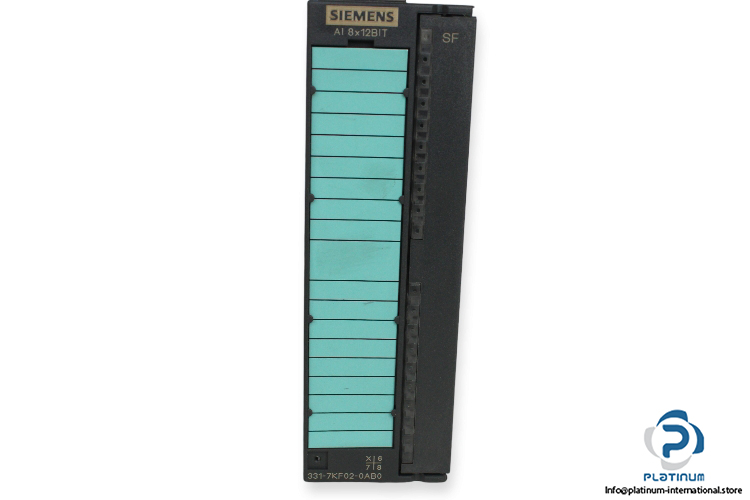

SIEMENS SIMATIC S7 ANALOG INPUT MODULE “ 6ES7331-7KF02-0AB0
The Siemens 6ES7331-7KF02-0AB0 is a high-performance analog input module from the SIMATIC S7 family. Designed for precision data acquisition in industrial automation, this module provides 8 analog inputs and 4 resistance measurement channels. Engineered for demanding environments with EX explosion protection, it ensures safe and efficient operation in process control applications.
Manufacturer: Siemens
Type: Analog Input Module
Model: 6ES7331-7KF02-0AB0

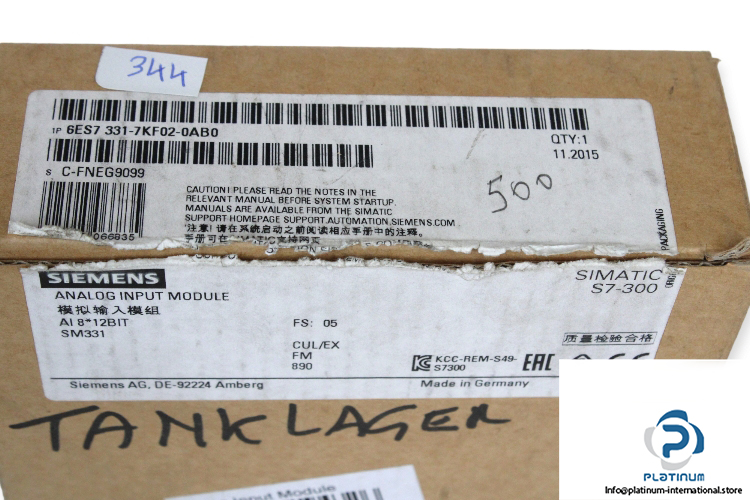

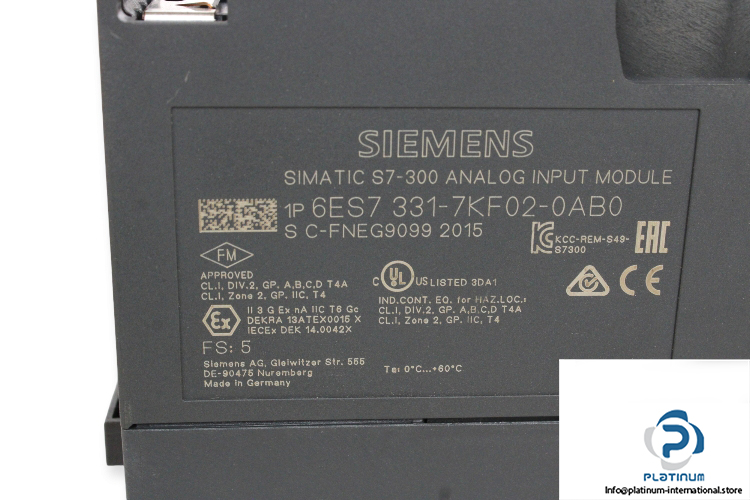

Serial No.: C-FNEG9099 2015
Family: SIMATIC S7
Technical Information
- Rated Value (DC): 24 V
- Input Current: Max. 30 mA from load voltage L+ (without load), Max. 50 mA from backplane bus 5 V DC
- Power Loss (typ.): 1 W
- Number of Analog Inputs: 8
- Resistance Measurement Inputs: 4
- Connection: 20-pin front connector required
- Cable Length: Shielded max. 200 m; 50 m for 80 mV and thermocouples
- Type of Protection: Explosion protection EX
- Dimensions: 40 x 125 x 117 mm
