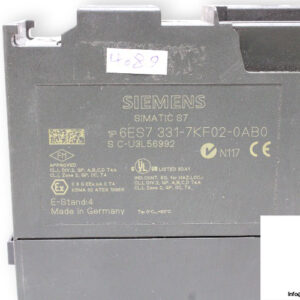

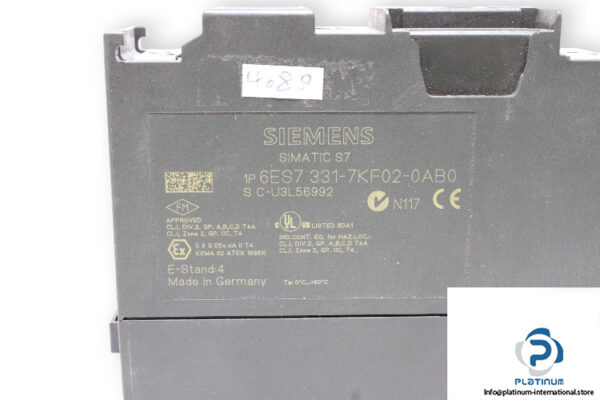

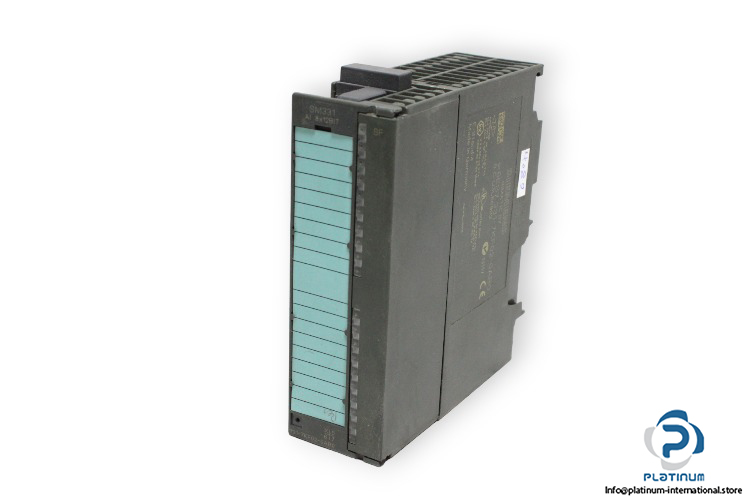

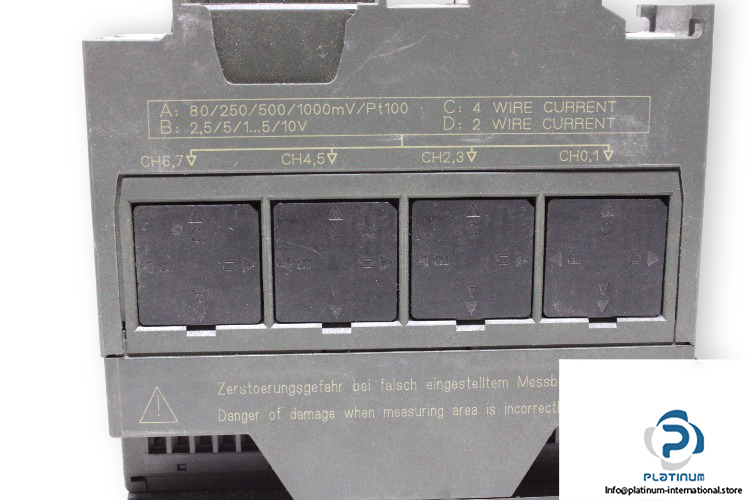

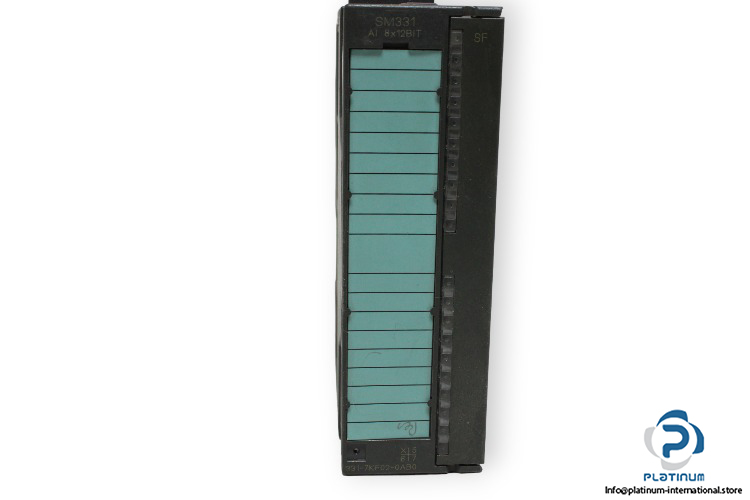

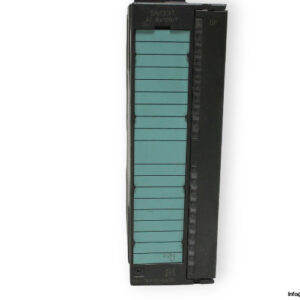

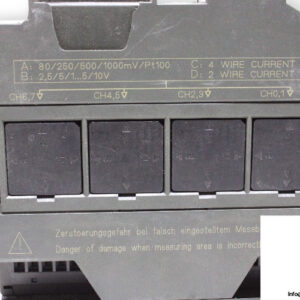

SIEMENS 6ES7331-7KF02-0AB0 ANALOG INPUT MODULE
The Siemens 6ES7331-7KF02-0AB0 is an 8-channel analog input module from the SIMATIC S7 family, designed for accurate and reliable analog signal processing in industrial automation systems. It supports resistance measurement and is equipped with EX explosion protection, making it ideal for sensitive and hazardous environments.
Manufacturer: Siemens
Type: Analog Input Module
Model: 6ES7331-7KF02-0AB0
Serial No.: C-U3L56992
Family: SIMATIC S7
Technical Information
- Rated Value (DC): 24 V
- Input Current: Max. 30 mA from load voltage L+ (without load); Max. 50 mA from backplane bus (5 V DC)
- Power Loss: Typical 1 W
- Analog Inputs: 8 Total; 4 for Resistance Measurement
- Connection Method: Requires 20-pin Front Connector
- Cable Length: Shielded – Max. 200 m; 50 m for 80 mV and Thermocouples
- Protection: Explosion Protection (EX)
- Dimensions (W x H x D): 40 x 125 x 117 mm
