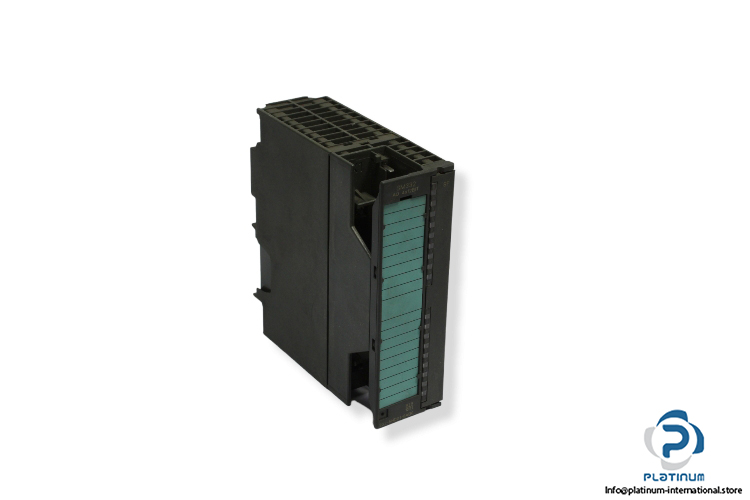

SIEMENS SM 332 ANALOG OUTPUT MODULE

The Siemens SM 332 is a high-performance analog output module from the SIMATIC S7-300 family, built to deliver precise analog signal control in industrial automation systems. Designed with EX explosion protection and fast conversion times, it supports both voltage and current outputs across four analog channels.

Manufacturer: SIEMENS
Type: Analog Output Module
Family: SIMATIC S7-300
Model: SM 332

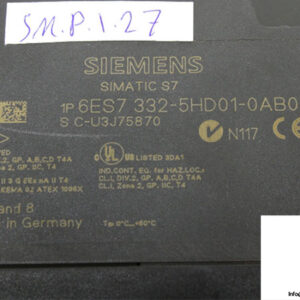

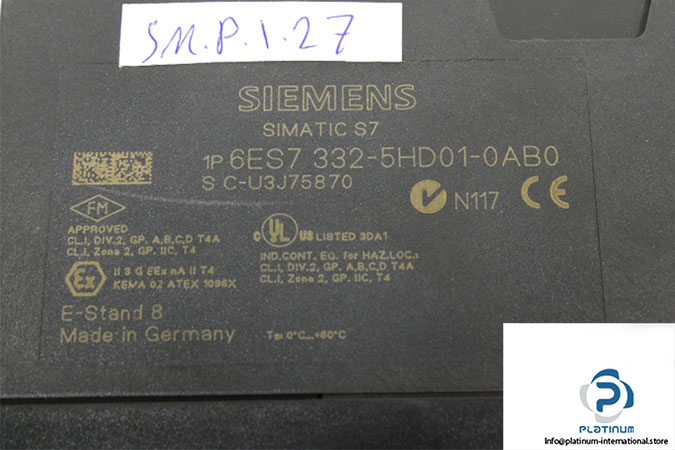

MRN: 6ES7332-5HD01-0AB0
Serial No.: C-U3J5870

Technical Information

• Supply Voltage: 24 V DC
• Input Current (Max): 240 mA from load voltage L+ (without load)
• No. of Analog Outputs (AO): 4
• Output Voltage: 0 / 10 V / 1 / 5 V / -10 / +10 V
• Output Current: 0 / 20 mA / -20 / +20 mA / 4 / 20 mA
• Power Losses: 3 W
• Conversion Time: 0.8 ms
• Settling Time:
  • Resistive Load: 0.2 ms
  • Capacitive Load: 3.3 ms
  • Inductive Load: 0.5 ms (1 mH); 3.3 ms (10 mH)
• Connection Method: Front Connector 20-Pin
• Explosion Proof: EX
• Dimension: 120 x 125 x 40 mm
