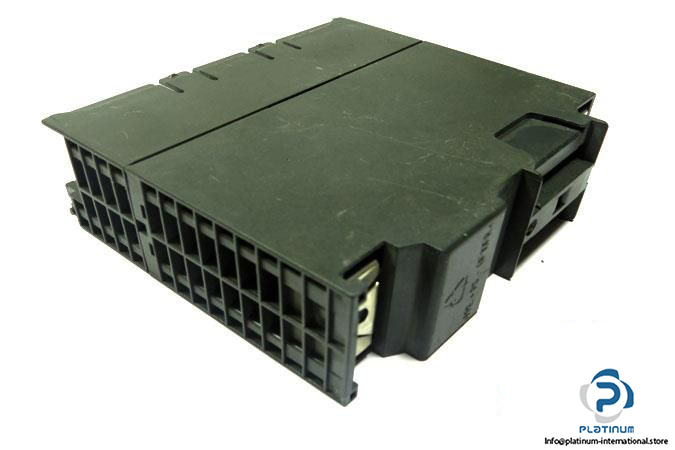

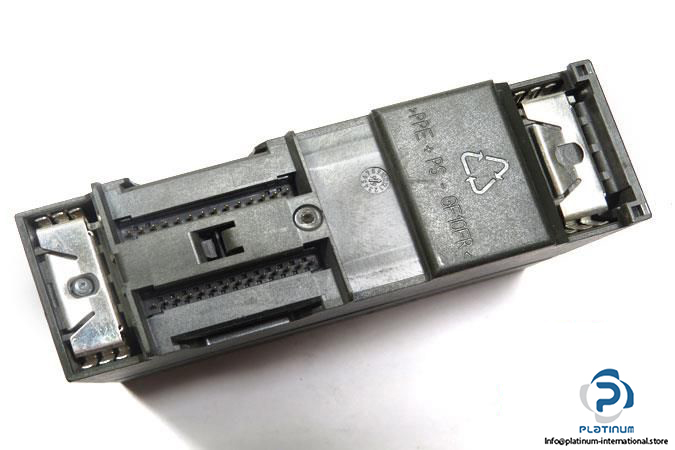

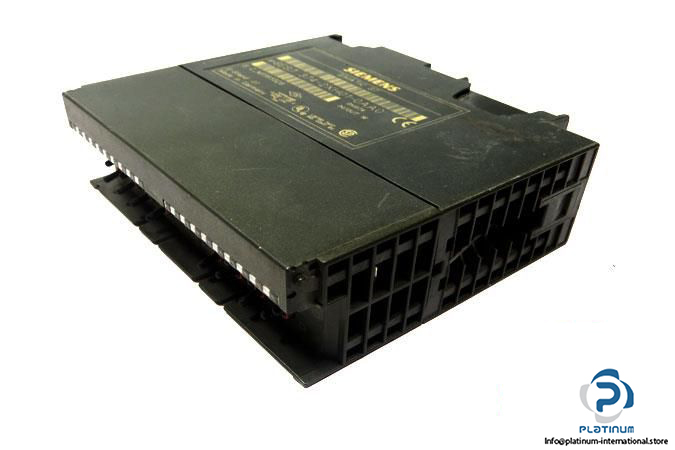

SIEMENS SIMATIC S7-300 SM374 SIMULATOR MODULE

The SIEMENS SIMATIC S7-300 SM374 is a versatile simulator module engineered for testing and validating automation systems. Designed for seamless integration into the SIMATIC S7-300 series, it enables simulation of sensor signals via switches and displays signal states using integrated LEDs.

Manufacturer: SIEMENS
Type: SIMULATOR MODULE
Model: SIMATIC S7-300 SM374

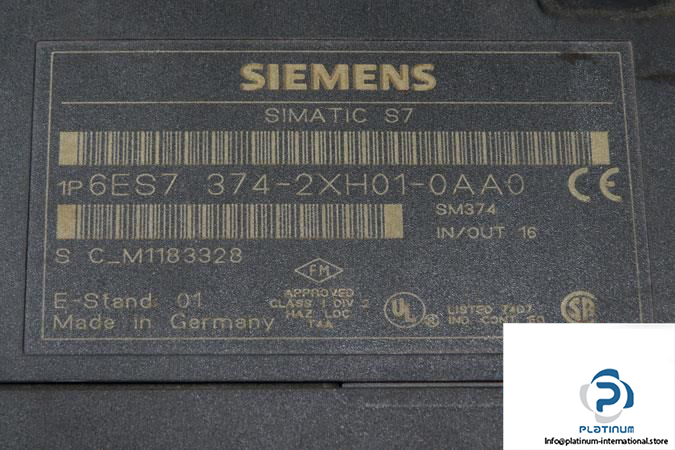

MRN: 6ES7374-2XH01-0AA0
SN: C-M1183328
E STAND: 01

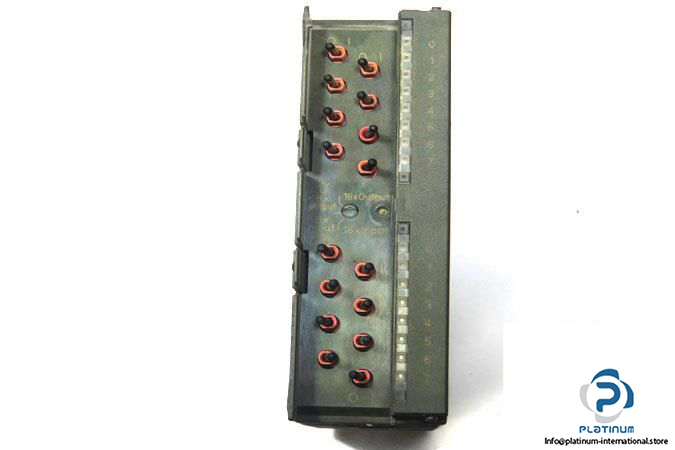

Function: Simulation of sensor signals over switches, Display of signal states on outputs with LEDs

Technical Information

• Input current from backplane bus 5 VDC: 80 mA
• No. of digital inputs: 16 (switch)
• No. of digital outputs: 16 (LEDs)
• Power loss: 0.35 W
• Dimensions: 40 x 125 x 120 mm
