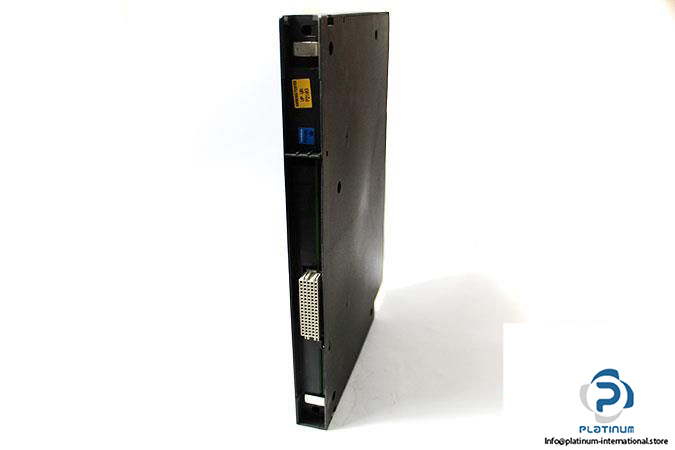

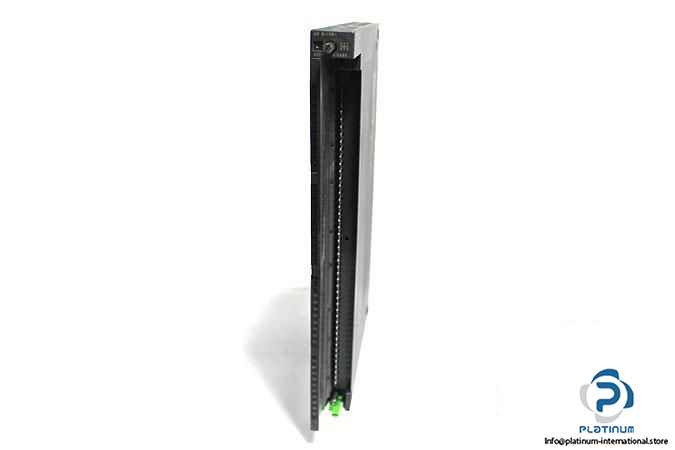

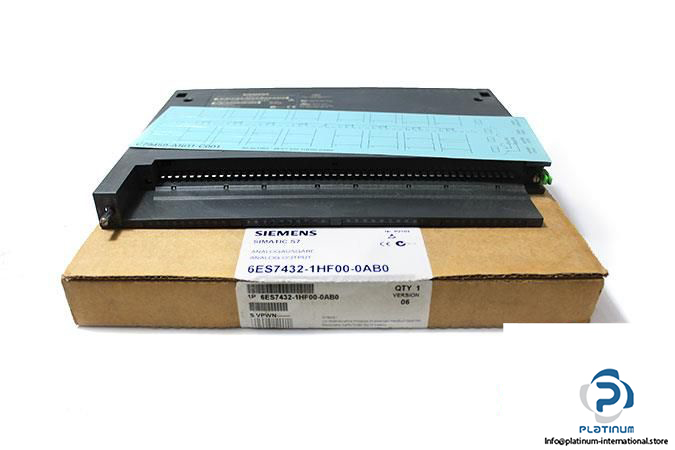

SIEMENS SIMATIC S7-400 SM 432 ANALOG OUTPUT MODULE

The Siemens SIMATIC S7-400 SM 432 is a high-performance analog output module designed for precision control and seamless integration in industrial automation systems. With 8 analog outputs and advanced conversion features, it supports accurate and reliable analog signal processing within the S7-400 controller family.

Manufacturer: SIEMENS
Family: SIMATIC S7-400
Type: Analog Output Module
Model: SM 432

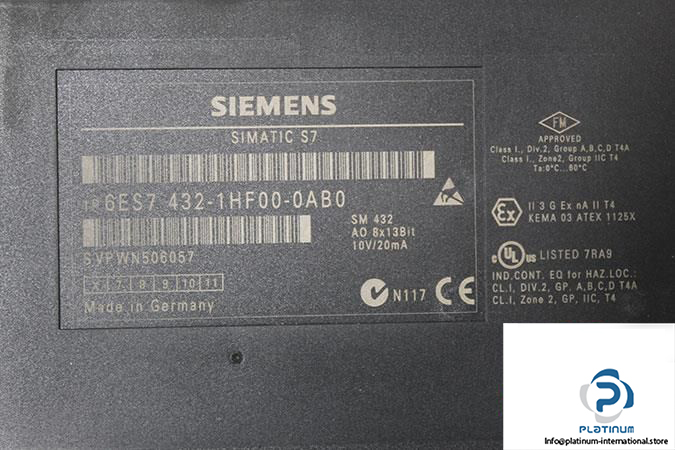

MRN: 6ES7432-1HF00-0AB0
SN: S-VPWN506057
No. of Analog Outputs: 8

Technical Information

• Supply Voltage (Rated): 24 V DC; Reverse Polarity Protection
• Input Current: 200 mA; Max. 400 mA at Rated Load
• Power Loss: 9 W
• Load Impedance:
  • With Voltage Outputs (Min.): 1 kΩ
  • With Voltage Outputs, Capacitive Load (Max.): 1 μF
  • With Current Outputs (Max.): 500 Ω
• Analog Value Generation: Integration and Conversion per Channel
• Resolution with Overrange (Incl. Sign): Max. 13 Bit
• Conversion Time (Per Channel): 420 μs (for 1 to 5 V and 4 to 20 mA ranges), 300 μs in All Ranges
