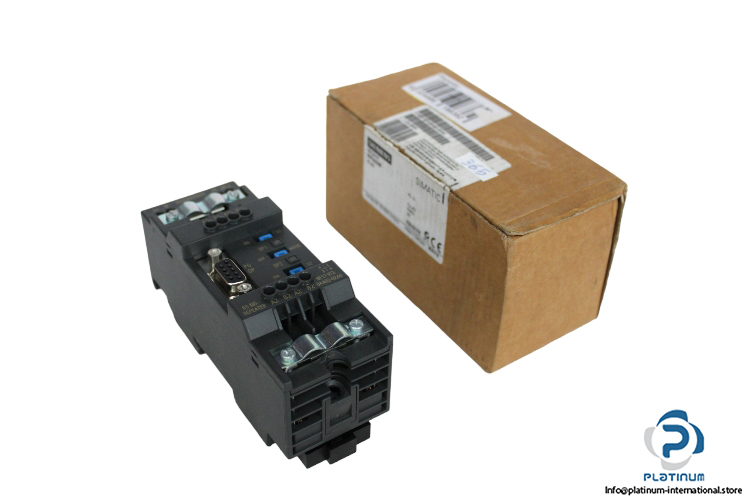

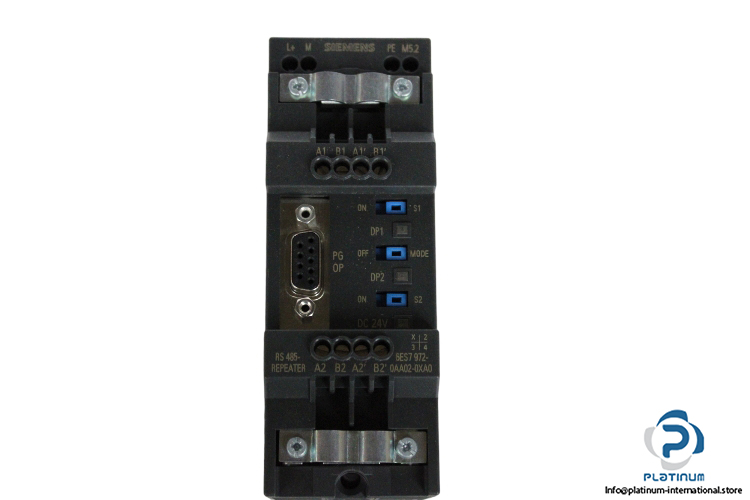

SIEMENS RS485 REPEATER “ MODEL 6ES7972-0AA02-0XA0
The Siemens RS485 Repeater is a robust industrial communication interface module from the SIMATIC DP family. Designed for connecting PROFIBUS/MPI bus systems, it enables signal regeneration and extends communication range across distributed automation networks. With compact housing and reliable electrical parameters, it is suitable for demanding environments including explosion-proof zones.
Manufacturer: SIEMENS
Type: RS485 Repeater for the Connection of PROFIBUS/MPI Bus System
Family: SIMATIC DP
Model: 6ES7972-0AA02-0XA0

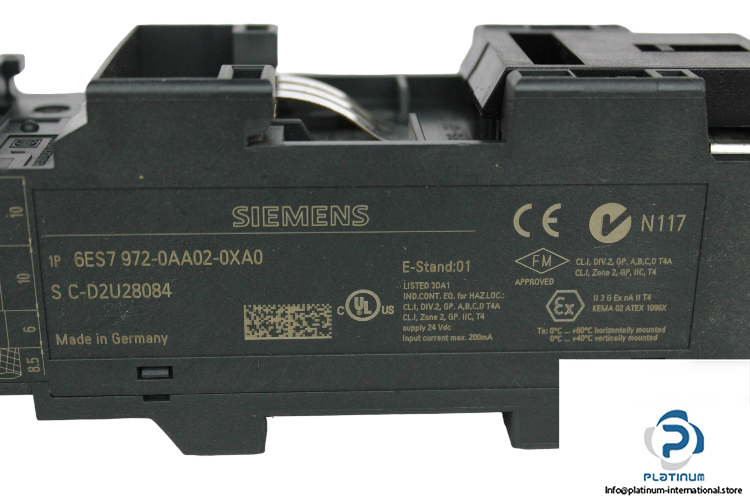

Serial No.: S C-D2U28084
E Stand: 01
Explosion Proof: EX
Technical Information
- Rated Value (DC): 24 V
- Permissible Range (DC): 20.4 V “ 28.8 V
- Current Consumption, Max.: 100 mA
- Power Loss, Typ.: 0.7 W
- Ambient Temperature During Operation: 0 / 60 °C
- IP Degree of Protection: IP20
- Dimensions: 45 x 128 x 60 mm
