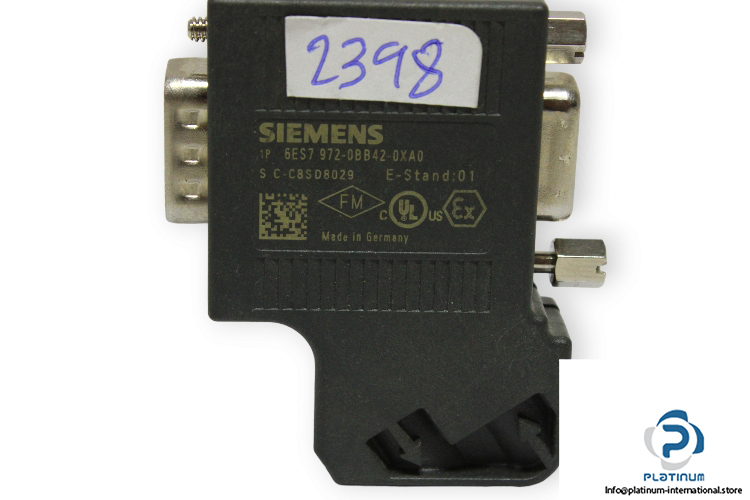

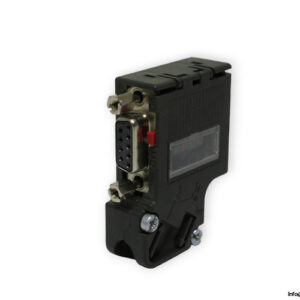

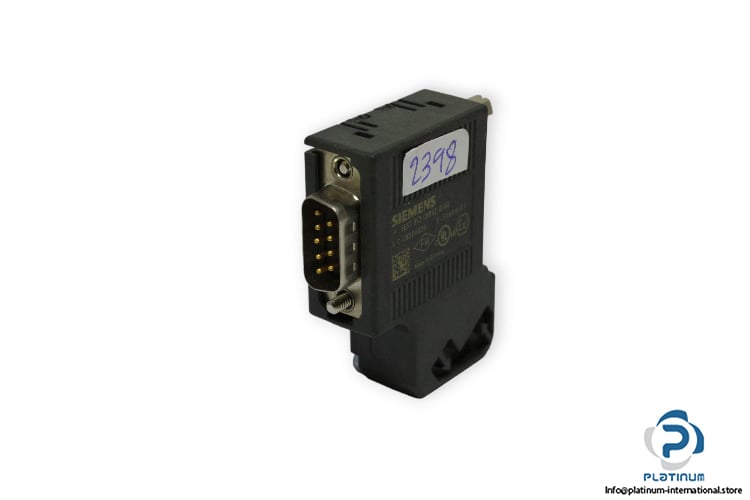

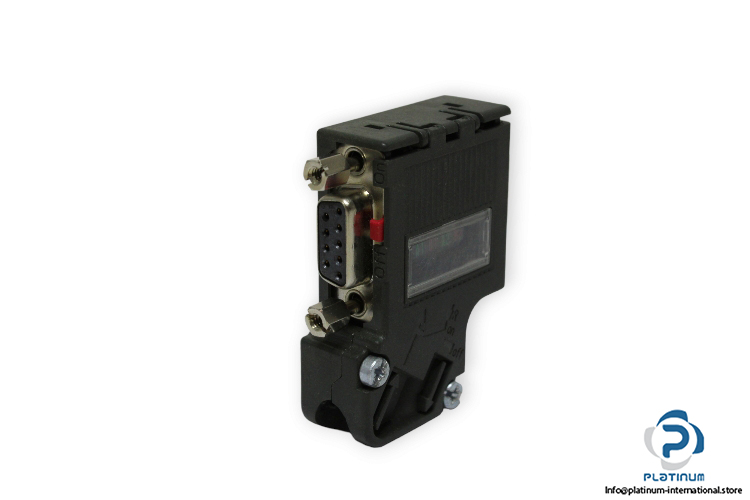

Siemens PROFIBUS Connector 6ES7972-0BB42-0XA0
Siemens PROFIBUS Connector 6ES7972-0BB42-0XA0 is designed for connecting PROFIBUS stations to the PROFIBUS bus cable. It offers reliable data transfer with adjustable transfer rates and provides a durable, explosion-protected solution for industrial network setups.
- Manufacturer: Siemens
- Type: PROFIBUS Connector
- MNR: 6ES7972-0BB42-0XA0
Technical Data:
- Suitability for Use: For connecting PROFIBUS stations to the PROFIBUS bus cable
- Transfer Rate / with PROFIBUS DP: 9.6 kbit/s to 12 Mbit/s
- Number of Electrical Connections: For PROFIBUS cables: 2, for network components or terminal equipment: 1
- Type of Electrical Connection: For PROFIBUS cables: Screw, for network components or terminal equipment: 9-pin sub D connector
- Type of Cable Outlet: 35-degree cable outlet
- Design of Terminating Resistor: Resistor combination integrated and connectable via slide switch
- Material of the Enclosure: Plastic
- Operating Temperature: -25 to +60 °C
- Degree of Protection: IP20
- Type of Protection: Explosion protection EX
- Dimensions: 15.8 x 54 x 39.5 mm
