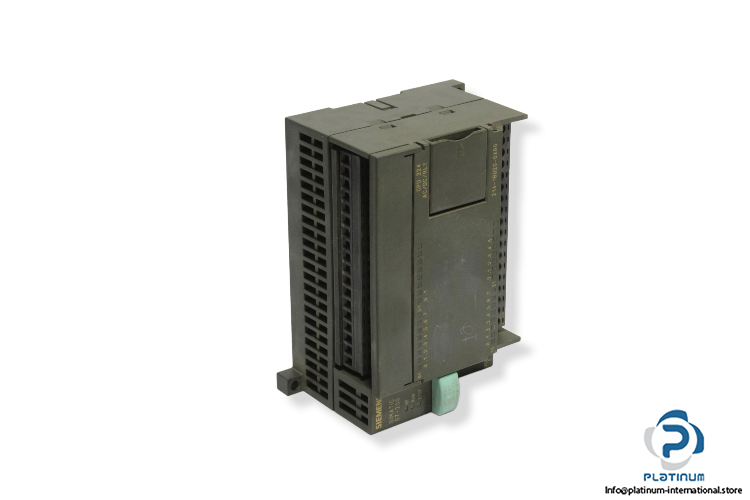

SIEMENS SIMATIC S7-200 CPU 224

The Siemens SIMATIC S7-200 CPU 224 is a compact central processing unit designed for high-performance automation control in industrial applications. With integrated digital and analog I/O, robust communication capabilities, and a compact footprint, it provides reliable processing power for small to medium-sized automation systems.

Manufacturer: Siemens
Type: Compact Central Processing Unit
Family: SIMATIC S7-200
Model: CPU 224

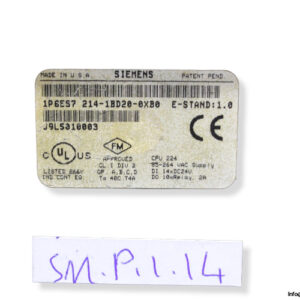

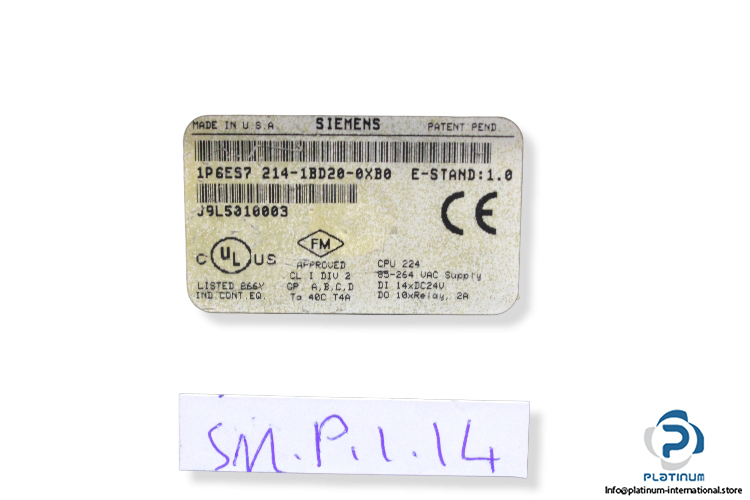

MRN: 6ES7214-1BD20-0XB0
Serial No.: J9L5010003

Technical Information

• Supply Voltage: 24 V DC
• Input Current (Max): 4 mA
• Output Current: 2 A, Relay
• Supply Voltage Relay: 85 / 246 V AC
• No. of Digital Inputs (DI): 14
• No. of Digital Outputs (DO): 10
• No. of Analog Inputs (AI): 12/10
• No. of Analog Outputs (AO): 10/12
• Number of Counters: 6
• Working Memory: 8 Kbyte
• Interface: RS 485
• Compact: CPU With MPI, PPI
• Degree of Protection: IP20
• Dimension: 120.5 x 80 x 62 mm
