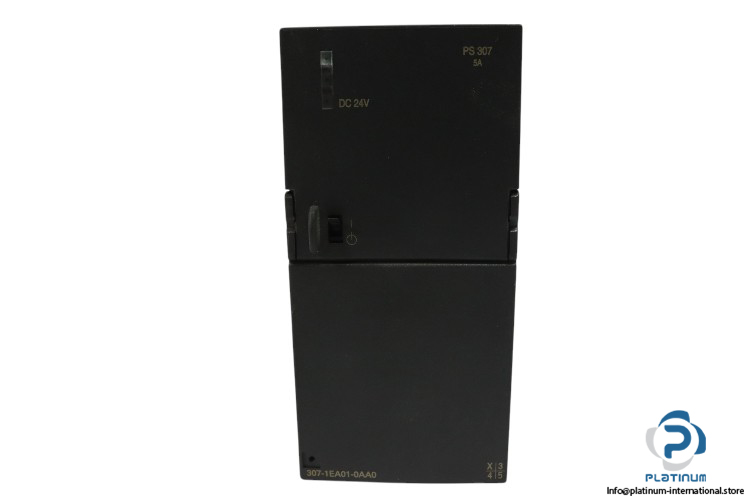

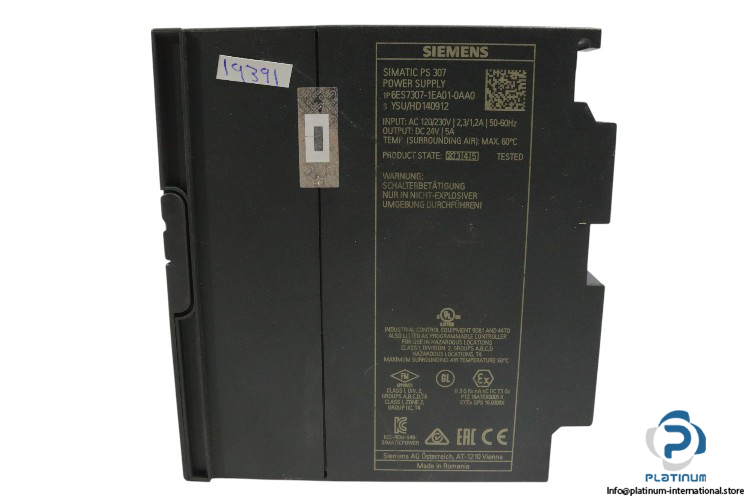

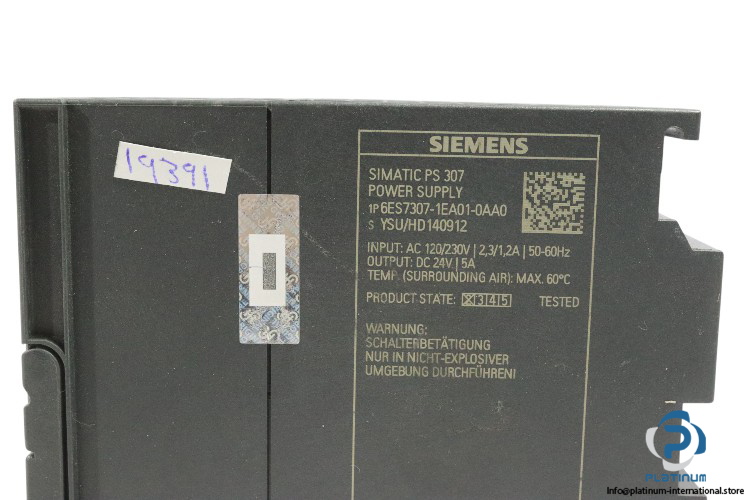

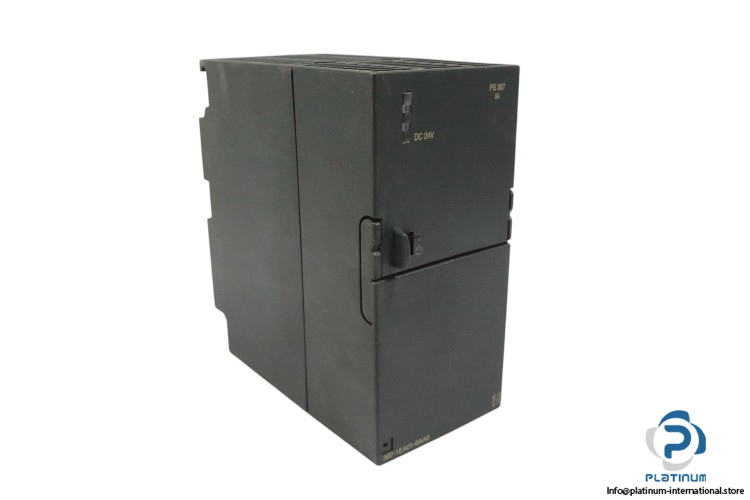

Siemens 6ES7307-1EA01-0AA0 Power Supply Module

The Siemens 6ES7307-1EA01-0AA0 is a compact and efficient power supply module from the SIMATIC S7 series, designed to provide reliable 24 V DC power for industrial automation systems. It supports a wide input voltage range (85“132 V / 170“264 V) and delivers up to 5 A of current at 24 V output, with a maximum power output of 120 W. Engineered for operational stability and minimal power loss (only 18 W), it features switch-on current limiting and is housed in an IP20-rated enclosure. Ideal for use in control cabinets and PLC applications.

• Manufacturer: Siemens
• Type: Power Supply
• Model: 6ES7307-1EA01-0AA0

Input Specifications:

• Nominal Supply Voltage: 120 V / 230 V
• Input Voltage Range: 85 to 132 V / 170 to 264 V
• Input Current at 120 V: 2.3 A
• Input Current at 230 V: 1.2 A
• Max Switch-On Current (+25 °C): 20 A

Output Specifications:

• Output Voltage: 24 V
• Rated Output Current: 5 A
• Output Current Range: 0 / 5 A
• Delivered Active Power: 120 W

General Specifications:

• Power Loss: 18 W
• Degree of Protection: IP20
• Operating Temperature: 0 to 60 °C
• Dimensions (H x W x D): 125 x 60 x 120 mm
