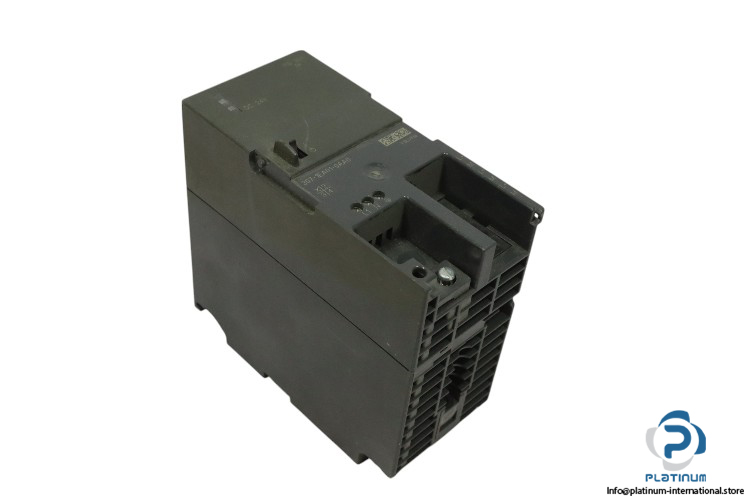

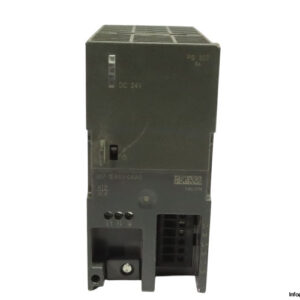

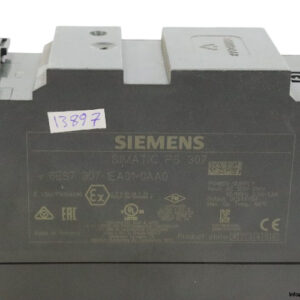

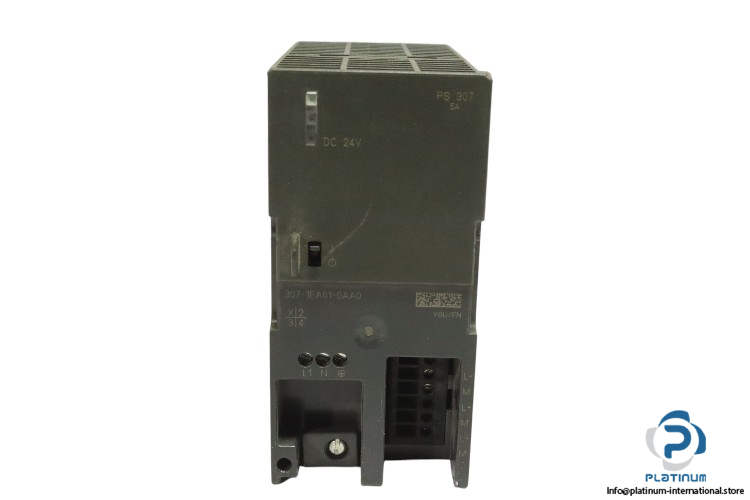

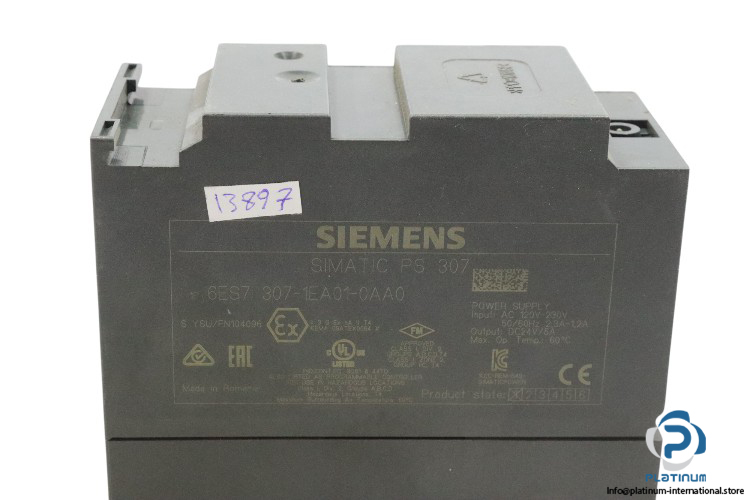

Siemens 6ES7307-1EA01-0AA0 Power Supply
The Siemens 6ES7307-1EA01-0AA0 is a high-efficiency industrial power supply unit engineered for automation systems requiring stable 24 V DC output. With robust protection, wide input voltage ranges, and compact design, it ensures reliable power delivery in control panels and electrical enclosures.
- Manufacturer: Siemens
- Type: Power Supply
- Model: 6ES7307-1EA01-0AA0
Technical Information:
- Nominal Supply Voltage: 120 V / 230 V
- Input Voltage Range: 85 to 132 V / 170 to 264 V
- Input Current at 120 V: 2.3 A
- Input Current at 230 V: 1.2 A
- Max Switch-On Current (+25 °C): 20 A
- Output Voltage: 24 V
- Rated Output Current: 5 A
- Output Current Range: 0 / 5 A
- Delivered Active Power: 120 W
- Power Loss: 18 W
- Degree of Protection: IP20
- Operating Temperature: 0 to 60 °C
- Dimensions (H x W x D): 125 x 60 x 120 mm
