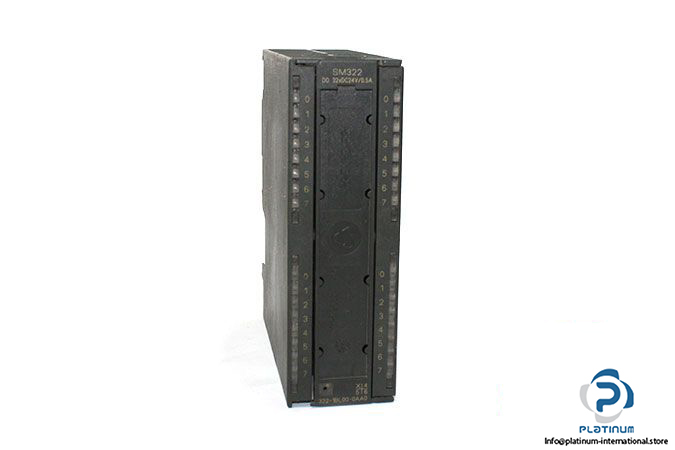

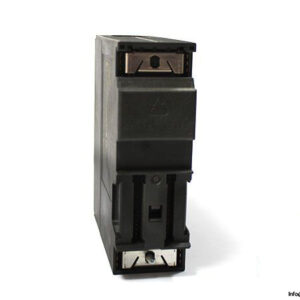

SIEMENS SM 322 DIGITAL OUTPUT MODULE “ SIMATIC S7-300 FAMILY

The Siemens SM 322 Digital Output Module is part of the SIMATIC S7-300 automation system. With 32 digital outputs, fast switching response, and robust electrical isolation, it is designed to support high-performance industrial control processes with reliability and efficiency.

Manufacturer: Siemens
Family: SIMATIC S7-300
Type: Digital Output Module
Model: SM 322

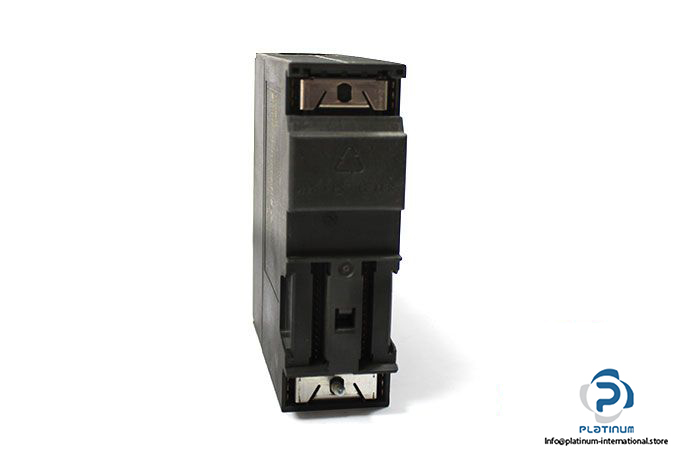

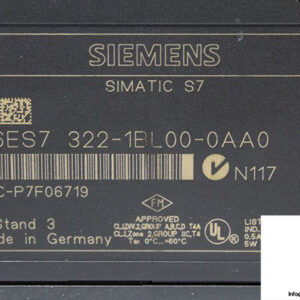

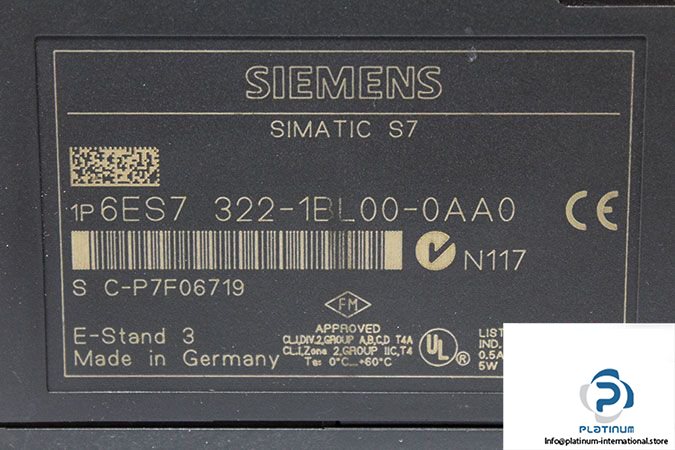

MRN: 6ES7322-1BL00-0AA0
SN: C-P7F06719

Technical Information

• Rated Loaded Voltage: 24 V DC
• Input Current:
  • From Loaded Voltage: 160 mA
  • From Backplane Bus (5 V DC): 110 mA
• No. of Digital Outputs: 32
• Switching Capacity: 5 W (lamp load)
• Output Delay: 100 µs (œ0 to œ1, max), 500 µs (œ1 to œ0, max)
• Power Loss: 6.6 W
• Isolation: 500 V DC
• Dimensions (WxHxD): 40 x 125 x 120 mm
