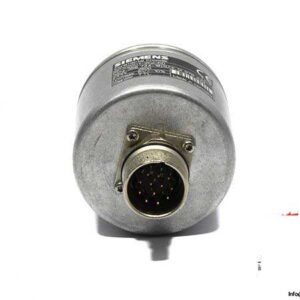

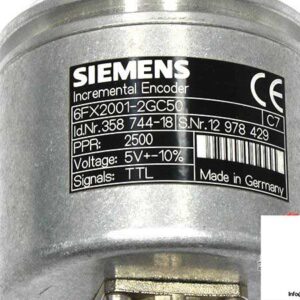

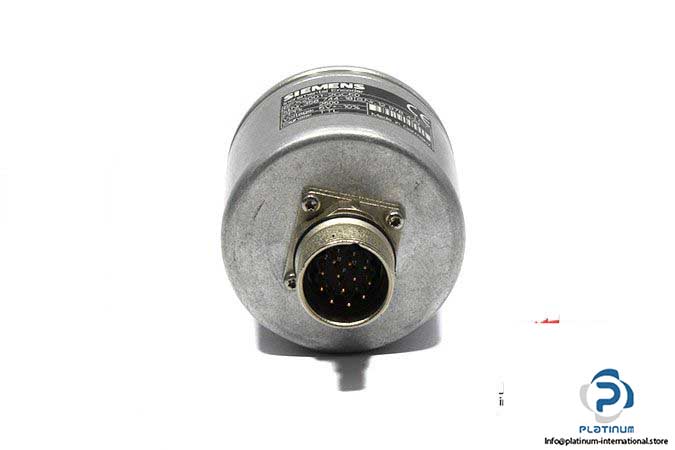

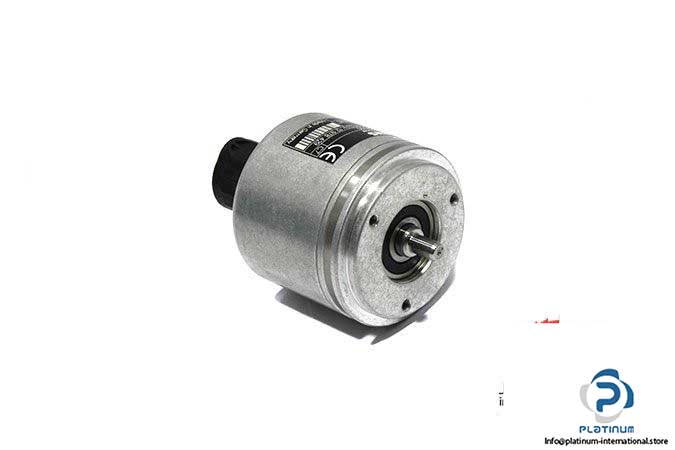

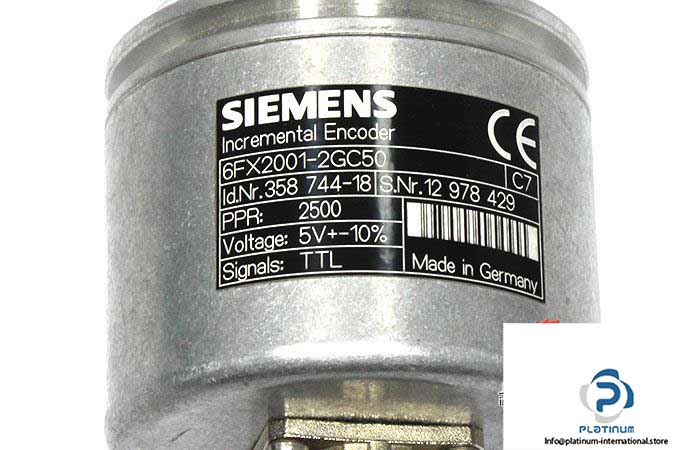

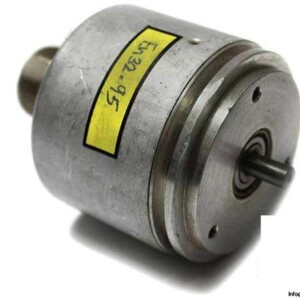

SIEMENS 6FX2001-2GC50 INCREMENTAL ENCODER

The Siemens 6FX2001-2GC50 incremental encoder is engineered for precise motion control and industrial automation tasks. With high-resolution feedback and durable design, it ensures accurate positioning and reliability in challenging environments.

Manufacturer: SIEMENS
Type: Incremental Encoder
Model: 6FX2001-2GC50
Alternative Model: 6FC9320-3KN21
ID No.: 358 744-18
S No.: 12 978 429

Technical Information

• Shaft Diameter: 6 mm
• Shaft Length: 10 mm
• Resolution: 2500 Pulses Per Revolution (PPR)
• Voltage Supply: 5 VDC
• Max Current: 150 mA
• Output Circuits: TTL (RS 422)
• Max Rotation Speed: 7200 rpm
• Sampling Frequency: 0 / 300 kHz
• Protection Class: IP64
• Operating Temperature: -40 / 100 °C
