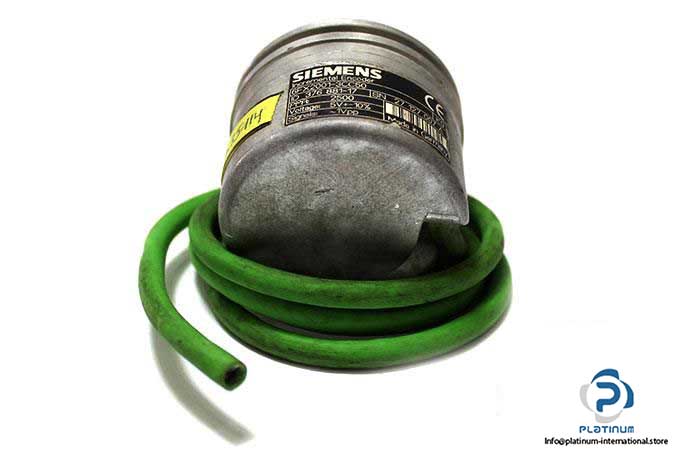

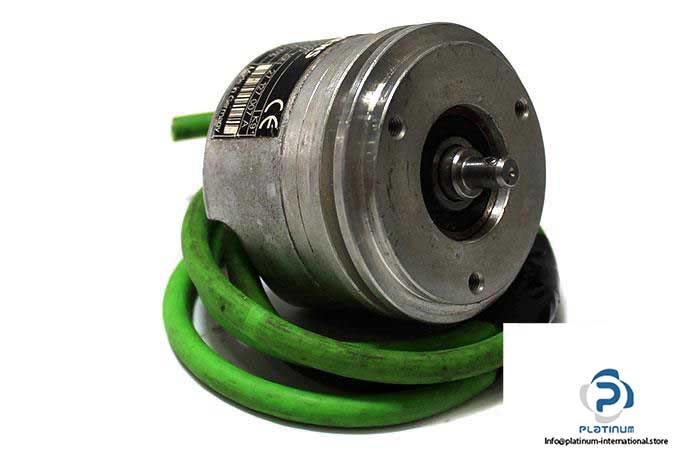

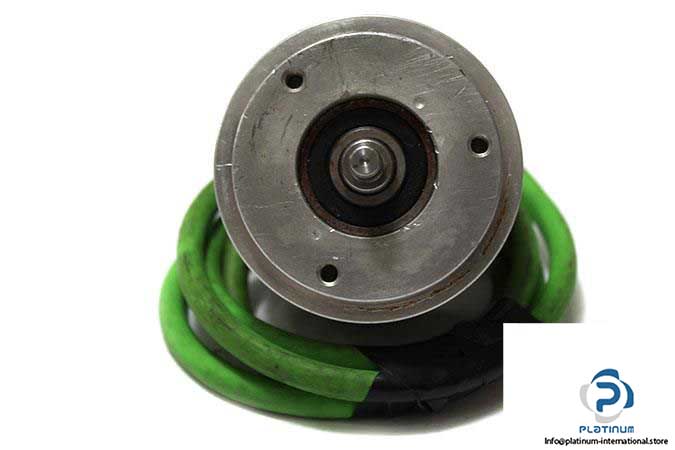

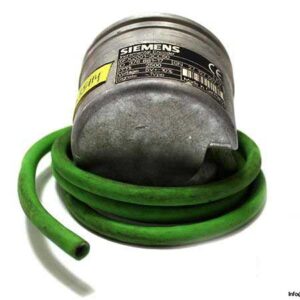

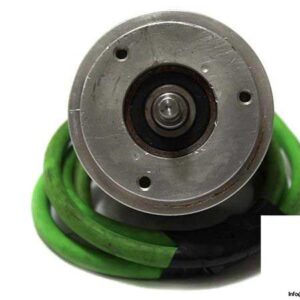

SIEMENS 6FX2001-3CC50 INCREMENTAL ENCODER
The Siemens 6FX2001-3CC50 is a high-precision incremental encoder engineered for industrial automation and motion control systems. Designed with a synchro flange and TTL output, it provides consistent signal accuracy even in high-speed applications.

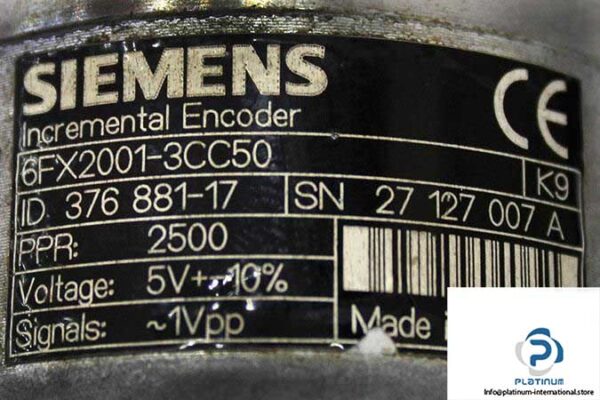

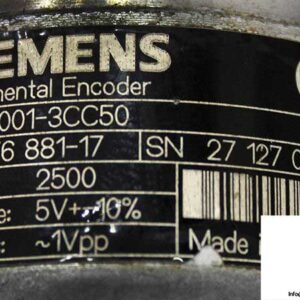

Manufacturer: SIEMENS
Type: Incremental Encoder
Model: 6FX2001-3CC50
ID No.: 376 881-17
SN: 27 127 007 A
Technical Information
- Shaft Diameter: 6 mm
- Shaft Length: 10 mm
- Flange Design: Synchro Flange
- Resolution: 2500 Pulses per Revolution (PPR)
- Voltage Supply: 5 VDC
- Max Current: 150 mA
- Output Circuits: TTL (RS 422)
- Max Rotation Speed: 7200 rpm
- Protection Class: IP64
- Max Temperature: 100 °C
