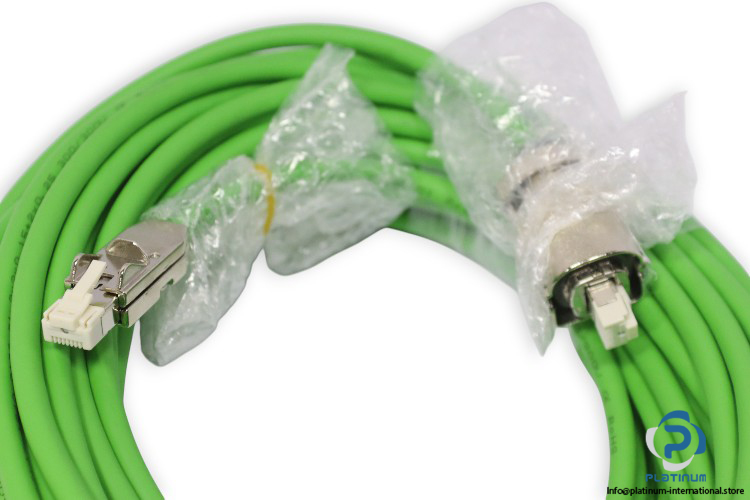

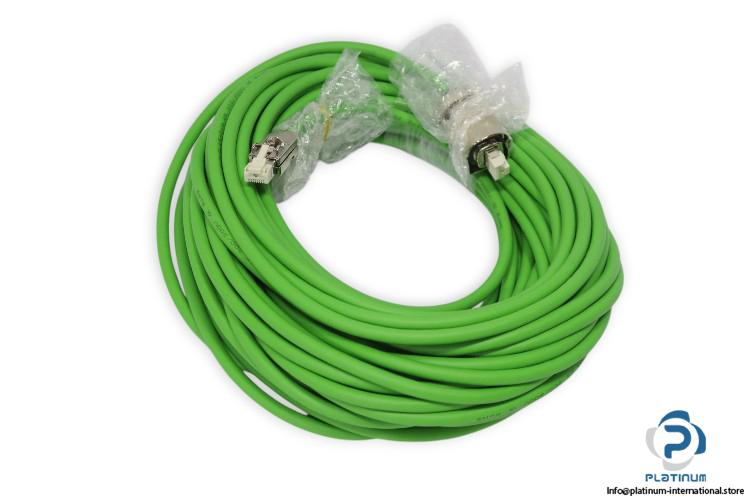

SIEMENS 6FX50022DC101CA0 SIGNAL CABLE
The Siemens 6FX50022DC101CA0 Signal Cable is a high-quality motor encoder DRIVE-CLiQ cable, designed to deliver precise signal transmission and durability in industrial automation systems. With robust PVC DESINA green sheathing and excellent mechanical properties, it ensures long-term reliable performance even under demanding conditions.
Manufacturer: Siemens
Type: Signal Cable

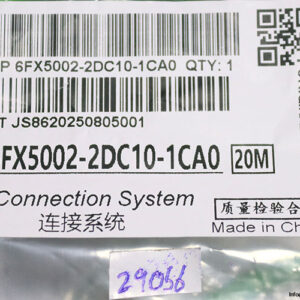

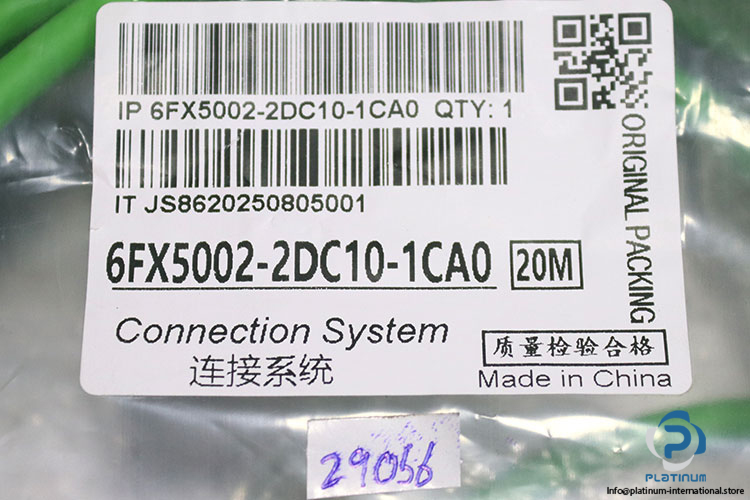

Model: 6FX50022DC101CA0
Serial No.: IT JS8620250805001
Technical Information
- Length: 20 m
- Design of the Sensor: Motor encoder DRIVE-CLiQ
- Test Voltage (rms Signal Conductors): 500 V
- Rated Voltage U0/U (EN 50395 Power Conductors): 30 V
- Type of Connection Cable (Engine Side): RJ45 DRIVE-CLiQ
- Maximum Cable Outer Diameter: 7.1 mm
- Smallest Bending Radius (Fixed Installation): 35 mm
- Smallest Bending Radius (Flexible Installation): 125 mm
- Number of Bends (Max.): 100,000
- Maximum Traversing Velocity: 30 m/min
- Acceleration Horizontal (Max.): 2 m/s²
- Tensile Stress (Fixed Installation): 80 N/mm²
- Tensile Stress (Flexible Installation): 30 N/mm²
- Torsional Stress Absolute: 30 °/m
- Material of Cable Sheath: PVC DESINA-Color Green
