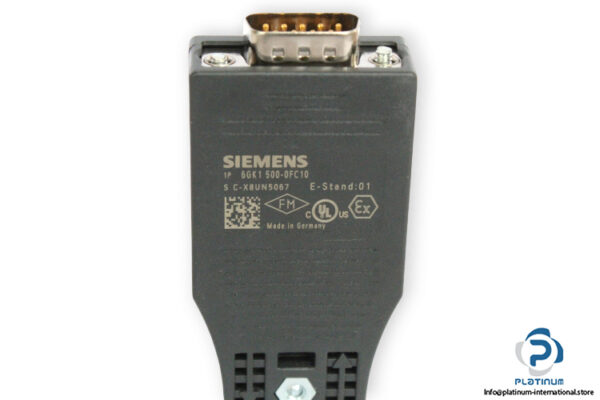

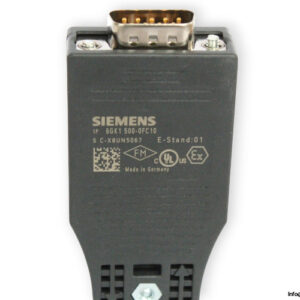

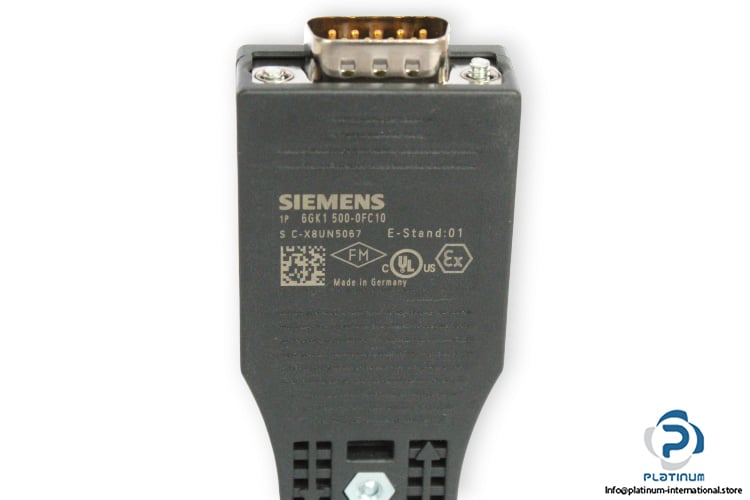

SIEMENS PROFIBUS FC BUS CONNECTOR RS-485
The Siemens 6GK15000FC10 Profibus FC Bus Connector RS-485 is a robust and reliable interface solution designed for connecting PROFIBUS nodes to the PROFIBUS bus cable. Engineered for high-speed data transfer and durability, it ensures secure and efficient communication in industrial automation systems.
Manufacturer: Siemens
Type: Profibus FC Bus Connector RS-485
MNR: 6GK15000FC10
Serial No.: S C-X8UN5067
Technical Information
- Suitability for use: Connecting PROFIBUS nodes to the PROFIBUS bus cable
- Transfer rate with PROFIBUS: 9.6 kbit/s / 12 Mbit/s
- Number of electrical connections: 2 for PROFIBUS cables, 1 for network components or terminal equipment
- Type of electrical connection: Integrated insulation displacement contacts for 2-core PB FC installation cables; Sub-D connector (9-pin) for network components or terminal equipment
- Type of cable outlet: 180° cable outlet
- Design of terminating resistor: Integrated resistor combination selectable with slide switch; outgoing bus isolated when resistor is connected
- Material of enclosure: Plastic
- Operating temperature: -40 / +70 °C
- Degree of protection: IP20
- Dimensions: 16 x 62 x 34.5 mm
