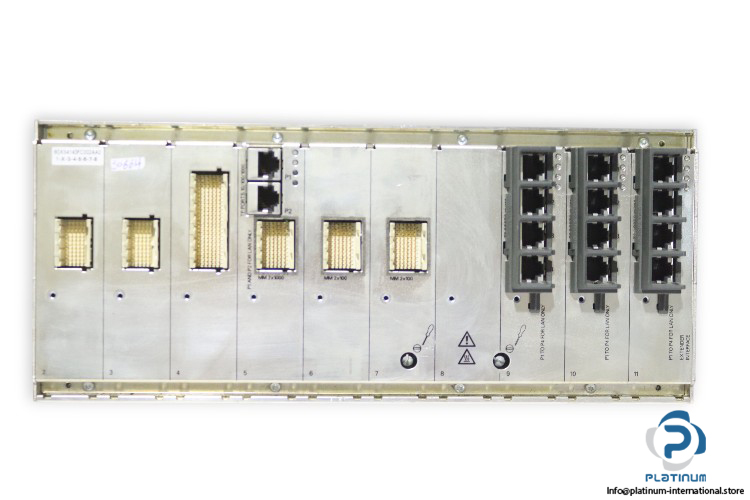

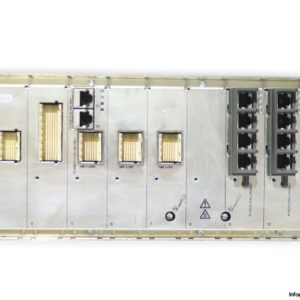

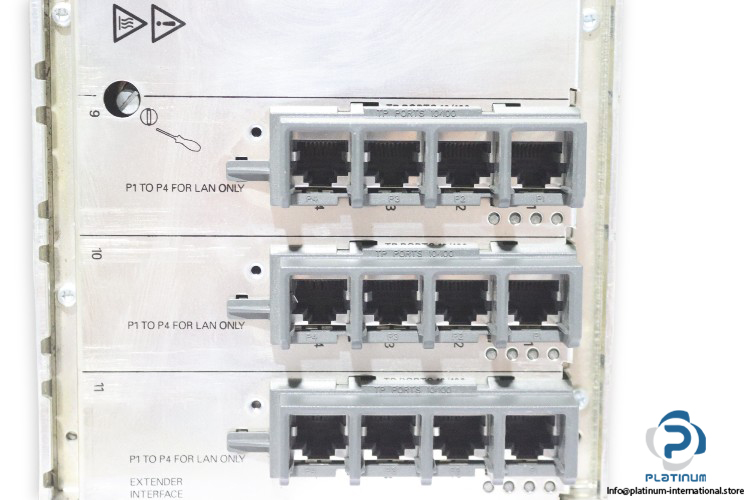

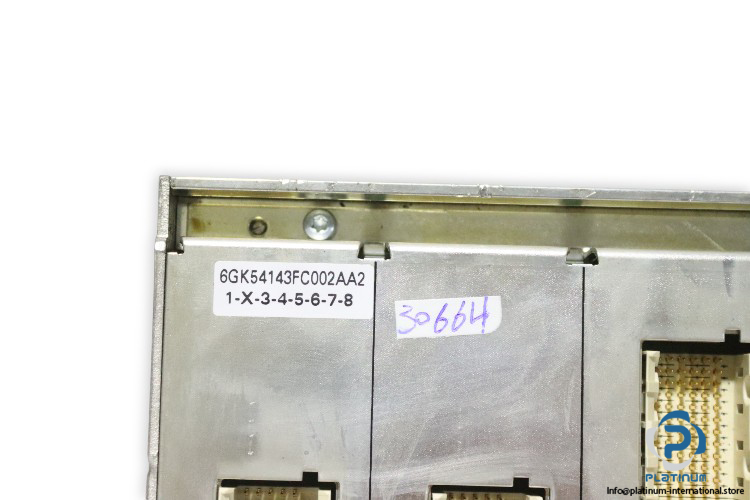

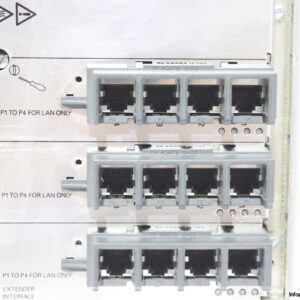

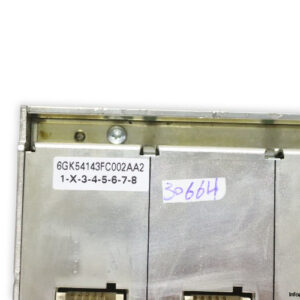

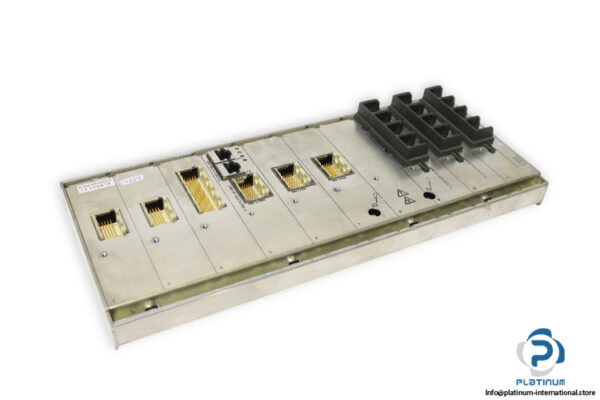

Siemens SCALANCE X414-3E Industrial Ethernet
The Siemens SCALANCE X414-3E is a robust industrial Ethernet switch designed for reliable network performance in demanding environments. With high data transfer rates and wide operating temperature tolerance, it ensures stable connectivity for industrial automation systems.
Manufacturer: Siemens
Type: Industrial Ethernet
MRN: 6GK5 414-3FC00-2AA2
Family: SCALANCE X414-3E
Technical Information
- Operating Voltage: 24 V DC
- Operational Current: 2 A
- Power Loss: 15 W
- Transfer Rate: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s
- No. of Electrical Connections: 14
- Operating Temperature: -40 / +70 °C
- Protection Class: IP20
- Type of Electrical Connection: 5-pole terminal block
- RS232: For management purposes
- RJ45: For management purposes
- Signaling Contact: 4-pole terminal block
- Power Supply: 4-pole
- Dimensions: 344 x 145 x 117 mm
