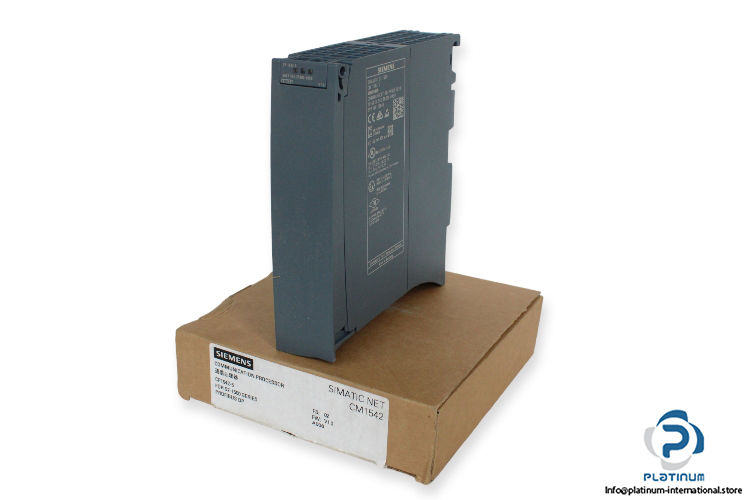

SIEMENS CP 1542-5 COMMUNICATIONS PROCESSOR “ SIMATIC NET

The Siemens CP 1542-5 is a high-performance communications processor designed for the SIMATIC S7-1500 automation system. Supporting PROFIBUS DP with flexible transfer rates, this module ensures fast, secure, and reliable communication across industrial networks.

Manufacturer: SIEMENS
Type: Communications Processor
Family: SIMATIC NET

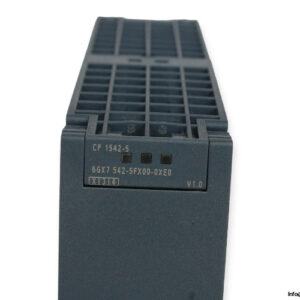

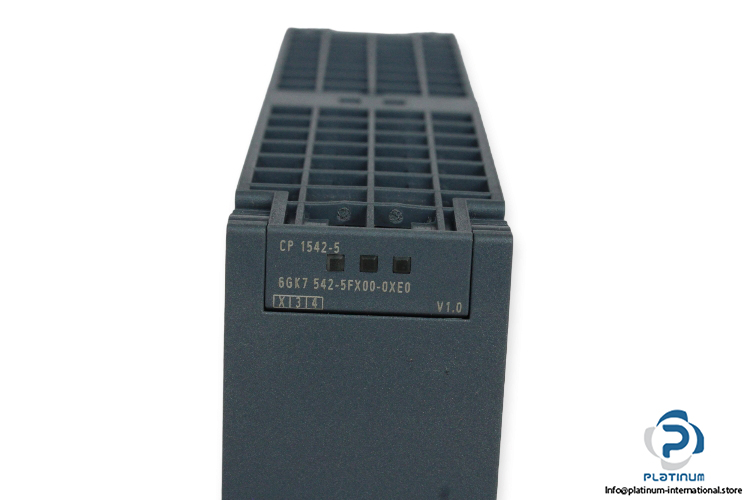

Model: CP 1542-5

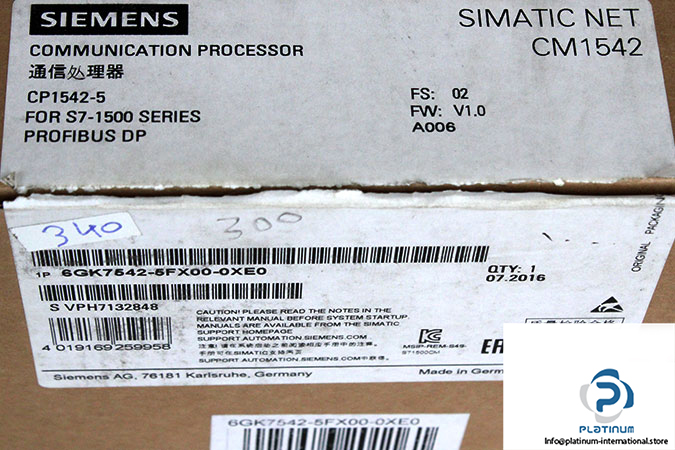

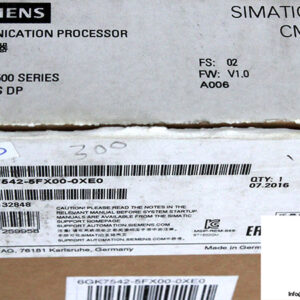

MNR: 6GK7542-5FX00-0XE0

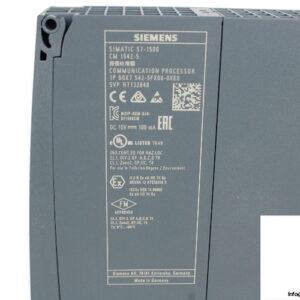

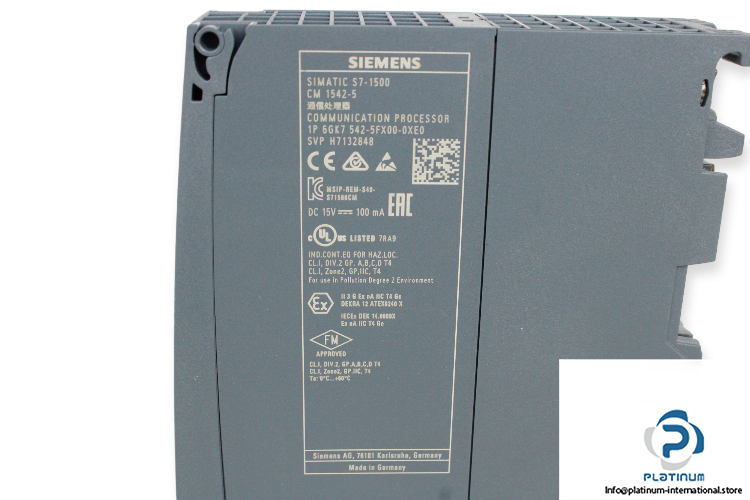

SN: VPH7132848
Version: V1.0
Used For: S7-1500

Technical Specifications

• Communication Protocol: PROFIBUS DP
• Transfer Rate: 9.6 kbit/s to 12 Mbit/s
• Electrical Connection: 9-pin Sub-D socket (RS485)
• Supply Voltage: DC
• Backplane Bus Voltage: 15 V
• Current Consumption (15 V DC): 0.1 A (typical)
• Power Loss: 1.5 W
• Protection Class: IP20
