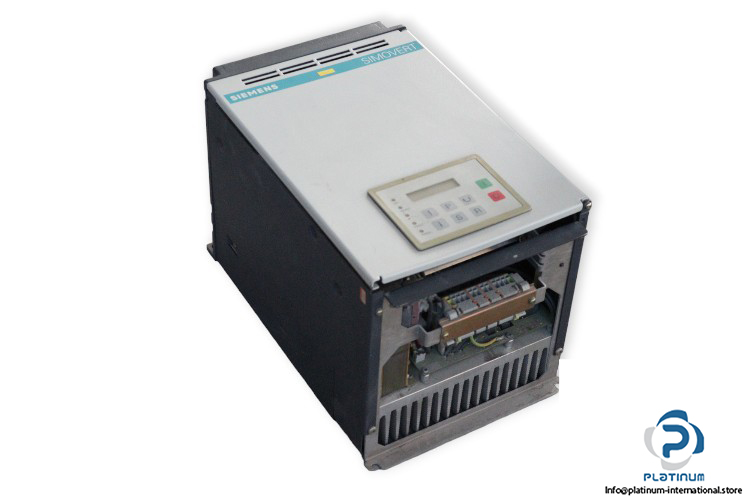

SIEMENS 6SE12102AB00 SIMVERT P CONVERTER

The Siemens 6SE12102AB00 from the SIMVERT P family is a robust industrial converter engineered for precise and efficient control of AC power. Built to meet DIN VDE 0558 standards, it offers reliable performance in demanding applications requiring variable frequency and voltage control.

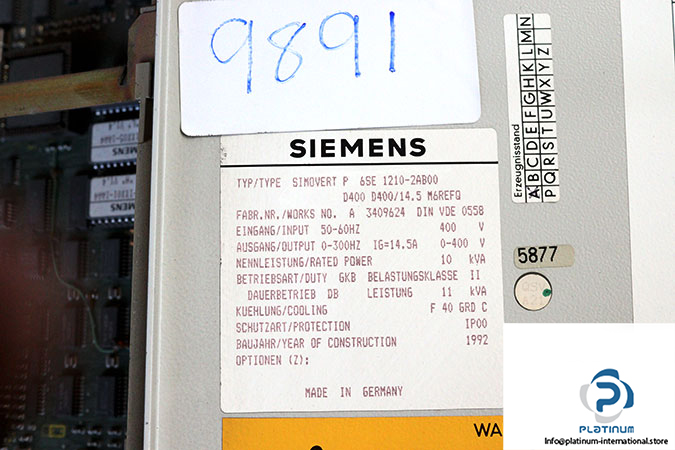

Manufacturer: Siemens
Type: Converter
Model: 6SE12102AB00
Family: SIMVERT P
F No.: A 3409624
Standard: DIN VDE 0558

Technical Information

• Rated Voltage Max.: 400 V AC
• Frequency: 50 / 60 Hz

Output

• Rated Nominal Voltage: 0 / 400 V AC
• Rated Current Max.: 14.5 A
• Frequency: 0 / 300 Hz
• Rated Power: 10 kVA

Additional Details

• Protection Class: IP00
• Dimensions: 560 x 540.5 x 430 mm
