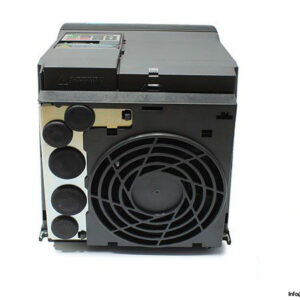

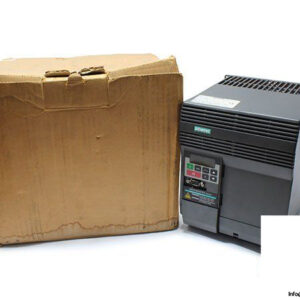

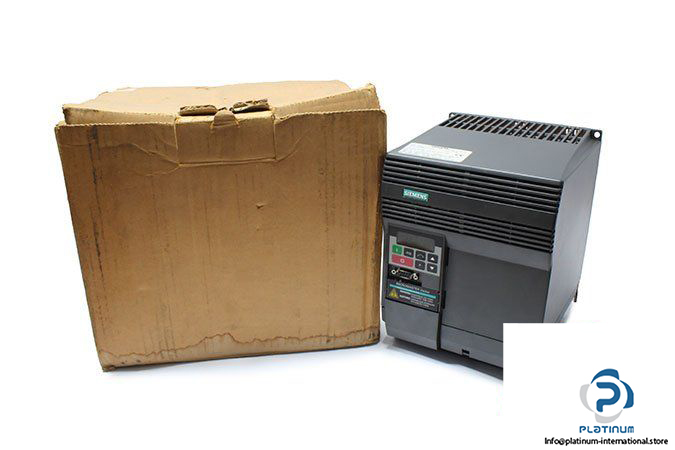

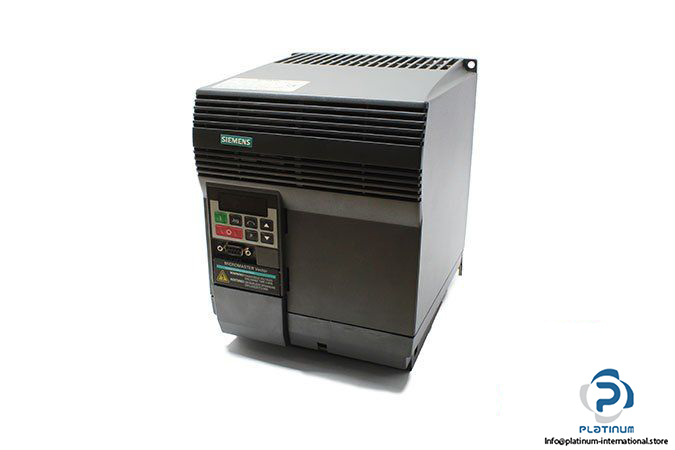

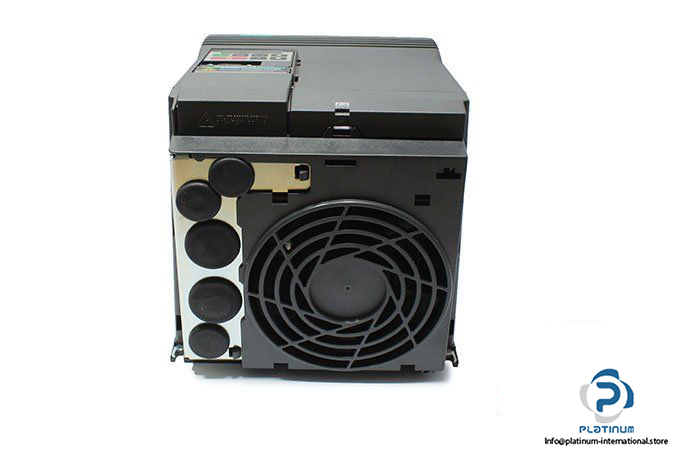

SIEMENS MICROMASTER 6SE3 221-0CC40 FREQUENCY INVERTER

The Siemens MICROMASTER 6SE3 221-0CC40 is a compact and efficient frequency inverter engineered to deliver optimal motor control for a wide range of industrial applications. With flexible input compatibility, robust output performance, and built-in protection features, this unit ensures reliable and precise variable speed drive operation.

Manufacturer: SIEMENS
Type: Frequency Inverter
Family: MICROMASTER
Model: 6SE3 221-0CC40

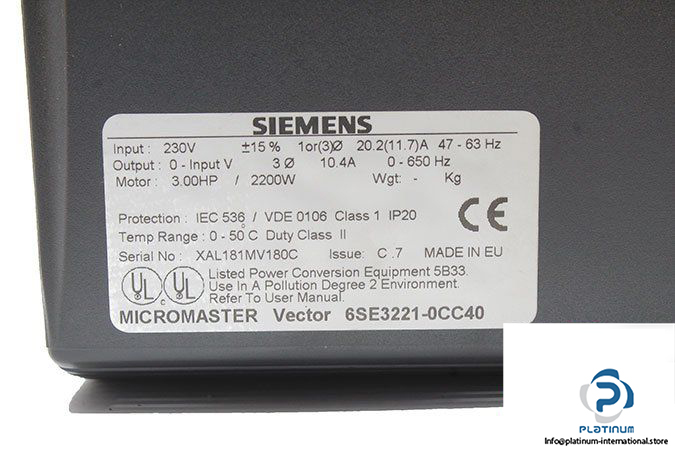

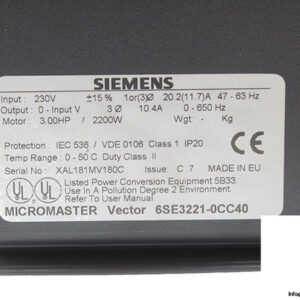

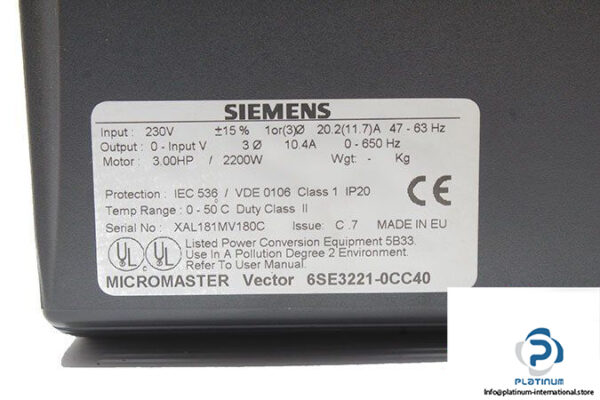

Technical Information

• Input Voltage: 1 or 3 phase 230 VAC
• Input Frequency: 47 / 63 Hz
• Rated Input Current: 20.2 (11.7) A
• Output Voltage: 3 phase 0 / 230 VAC
• Output Frequency: 0 / 650 Hz
• Rated Output Current: 10.4 A
• Output Power: 2.2 kW / 3 HP
• Ambient Temperature: 0 / 50 °C
• Protection Class: IP20
