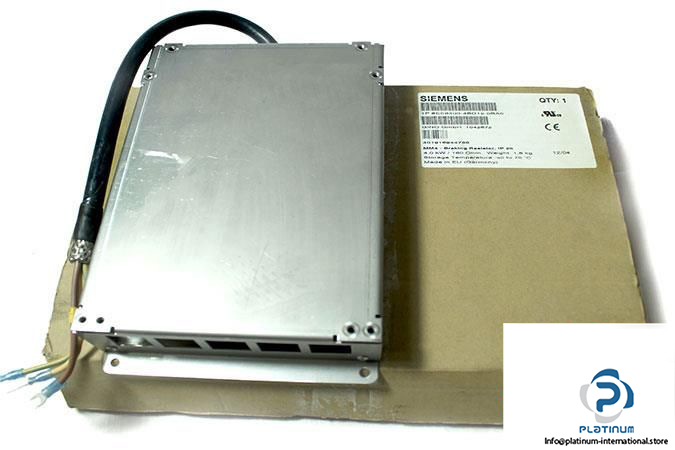

SIEMENS MICROMASTER 440 BRAKE RESISTOR
The Siemens MICROMASTER 440 Brake Resistor (MRN: 6SE6400-4BD12-0BA0) is specifically engineered for use with the MICROMASTER 440 inverter series. Designed to rapidly dissipate braking energy in applications with large inertia loads, this unit ensures controlled deceleration by diverting excess DC link voltage to a dedicated resistor.
Manufacturer: SIEMENS
Family: MICROMASTER 440
Type: Brake Resistor

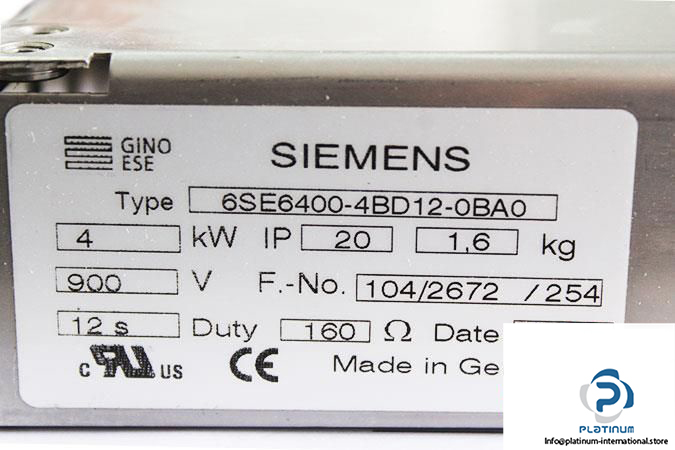

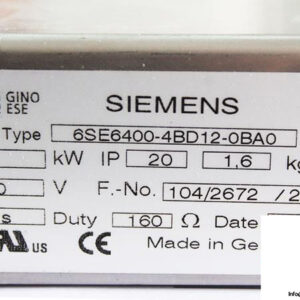

MRN: 6SE6400-4BD12-0BA0
F NO: 104/2672 /254
Technical Information
- DC Line Voltage: 900 V
- Output Power: Minimum 2.2 kW, Maximum 4 kW
- Duty Cycle: 12S
- Resistance: 160 Ohm
- Protection Rating: IP 20
- Dimensions: 239 x 149 x 43.5 mm
This brake resistor enhances braking performance and protects your drive system. Also check out related product families like Servo Motors and Sensors available at Platinum International.
