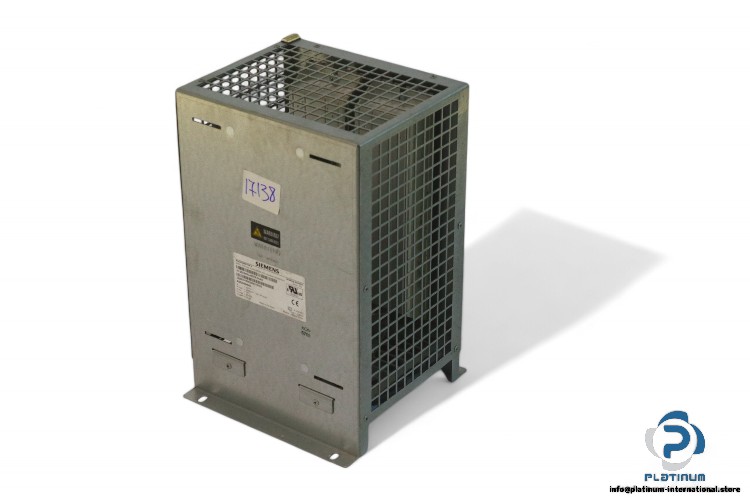

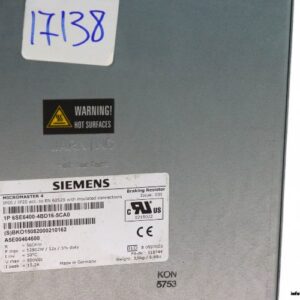

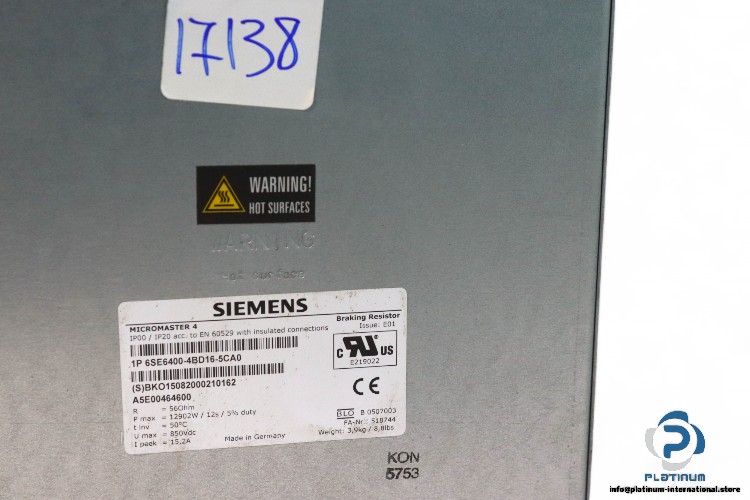

Siemens MICROMASTER 4 Braking Resistor (Part No.: 6SE6400-4BD16-5CA0)
The Siemens MICROMASTER 4 Braking Resistor 6SE6400-4BD16-5CA0 is a high-performance braking solution designed to efficiently dissipate excess energy generated during motor braking in industrial applications. With robust construction and reliable performance, it ensures smooth operation and enhanced safety in variable frequency drive systems.
Key features include:
- Rated Voltage: 380-480 V
- Current I pack: 15.2 A
- DC Link Voltage: 850 V
- Maximum Input Current: 2.5 A
- Consumed Active Power: 0.65 … 13 kW
- Electrical Resistance: 56 „¦
- Housing Version: M5 Stud Bolt
- Operating Temperature: 0 … 50 °C
- Degree of Protection: IP20
- Dimensions: 185 x 285 x 150 mm
With its compact design and robust housing, this braking resistor is ideal for integration into Siemens MICROMASTER 4 drive systems, providing reliable braking performance and system stability across a wide range of industrial environments.
