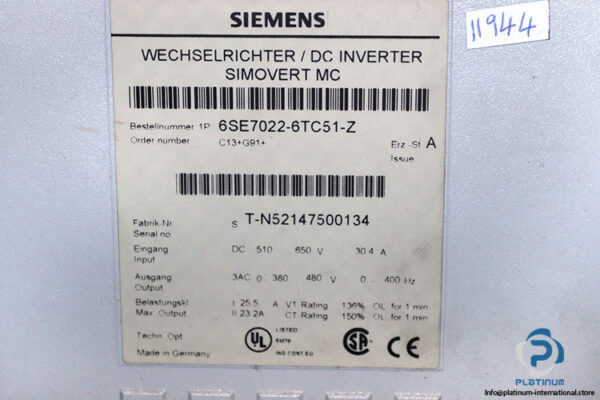

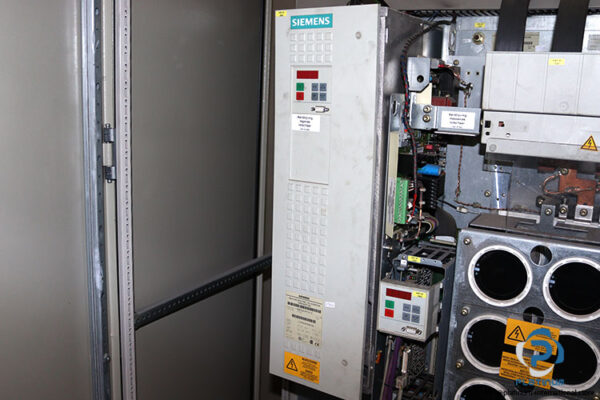

Manufacturer: SIEMENS
Type: DC Inverter
Model: 6SE70226TC51Z
Order No.: C13+G91+

Range: SIMOVERT MC
Subrange: MASTERDRIVES

Input:
Supply Voltage: 510 … 650 V DC
Rated Current: 30.4 A
Frequency: 47 … 63 Hz

Output:
Rated Voltage: 3-Phase 0 … 480 V AC
Rated Current: 25.5 / 23.2 A
Frequency: 0 … 400 Hz

Protection Class: IP20
Operating Temperature: -10 … 50 °C
Dimensions: 610 x 203 x 356 mm
